BSA Gold Star 650 · ASSEMBLY 7 · REV 06
Starting System & Starter Motor
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
BSA Gold Star 650 · Rev 06 · p. 13Original parts list ↗
Parts in this drawing
14 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Starter Motor AslyT1503BVF0010N | 1 | |
| 2 | O- Ring (Spigot Starter Motor)T1503BVF0020N | 1 | |
| 3 | Nut Flange 6Mm65538380 | 1 | |
| 4 | Bolt M6X1 35LT0202DVF0060N | 2 | |
| 5 | Horn Bracket SecondaryT1501BB10020N | 1 | |
| 6 | Idler Gear 11/52 TT0205BVF0010N | 1 | |
| 6.1 | Gear Idler Starter 11/52 T (OBD-II Phase-2-E20)T0205BVF0130N | 1 | |
| 7 | Idler Gear 24TT0205BVF0020N | 1 | |
| 7.1 | Gear Idler Starter 24T (OBD-II Phase-2-E20)T0205BVF0120N | 1 | |
| 8 | Shaft Idle Gear StarterT0205BVF0030N | 2 | |
| 9 | Washer Starter Gear 10.2X16X1T0205BVF0050N | 2 | |
| 10 | SpacerT0205BVF0040N | 1 | |
| 11 | Assembly Freewheel Gear And BushT1502AVF0100N | 1 | |
| 12 | Washer Freewheel Gear 44.4X35.2X2.4T1502AVF0150N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

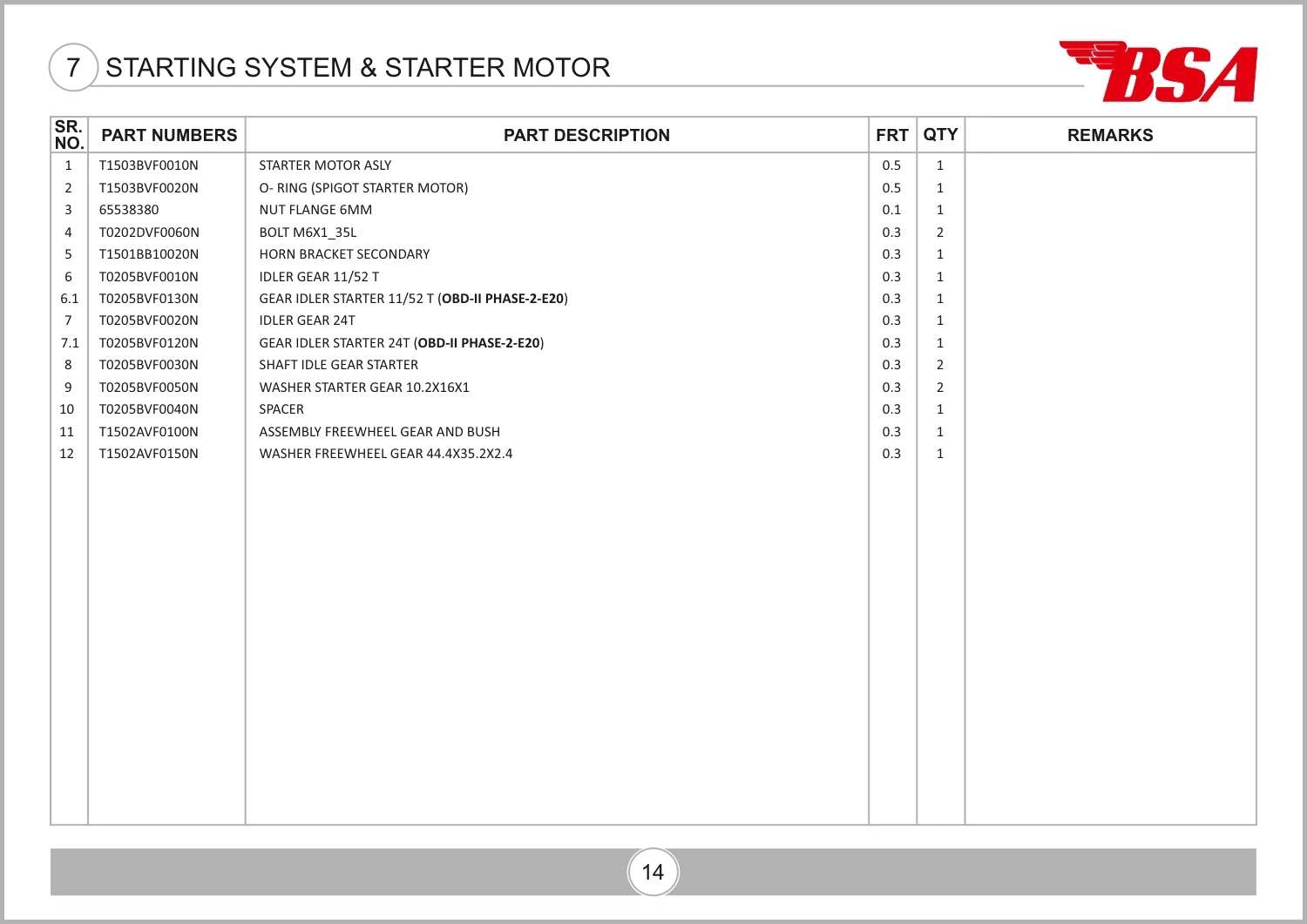

Source: PARTS CATALOUGE - BSA GOLDSTAR_REV-06.pdf · PDF diagram page 25, parts table page 26. View original parts table ↗
