Silencer Assembly

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

BSA Gold Star 650 Silencer Assembly exploded assembly diagram, catalogue page 75

BSA Gold Star 650 · Rev 06 · p. 75Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Muffler AssyT0304AB10010N	1	Enquiry ↗
1.1	Muffler Assembly (Black) Shadow BlackT0304AB10010E	1	Enquiry ↗
2	Cat Box Assy (Lcr)T0302AB10250N	1	Enquiry ↗
3	Header Pipe Assy (Lcr)T0302AB10230N	1	Enquiry ↗
3.1	Header Pipe Assy Black (Lcr) Shadow BlackT0302AB10230E	1	Enquiry ↗
4	Style ShieldT0304AB10190N	1	Enquiry ↗
4.1	Style Shield And Assembly (Black) Shadow BlackT0304AB10190E	1	Enquiry ↗
5	Collar M8T0303AB10110N	2	Enquiry ↗
6	Grommet M8T0303AB10120N	2	Enquiry ↗
7	Exhaust GasketT0304AB10250N	1	Enquiry ↗
8	Exhaust Flange TopT0302CB10030N	1	Enquiry ↗
9	Graphite GasketT0304AB10220N	1	Enquiry ↗
10	Muffler Support SleeveT03000B10080N	2	Enquiry ↗
11	Bolt Hex Fl M8X1.25X28X8.8SF0102572	2	Enquiry ↗
12	2W Socket Head Screw M8X28SF0224177	3	Enquiry ↗
13	Socket Head Screw M6X20 (White)SP0308023	1	Enquiry ↗
14	Muffler Support GrommetT03000B10060N	2	Enquiry ↗
15	Exhaust Flange BottomT0302CB10040N	1	Enquiry ↗
16	Exhaust Clamp M53T0302CB10010N	1	Enquiry ↗
17	Screw Rdskt M5X0.8X8SF0212029	4	Enquiry ↗
18	Heat Protection ShieldT0304AB10160N	1	Enquiry ↗
19	Nut Hex Fl Pr M8X1.25X8X8SF0303059	2	Enquiry ↗
20	Style Cover BiggerT0302CB10050N	1	Enquiry ↗
20.1	Style Cover Bigger (Black) Shadow BlackT0302CB10050E	1	Enquiry ↗
21	Style Cover SmallerT0303AB10100N	1	Enquiry ↗
21.1	Style Cover Smaller (Black) Shadow BlackT0303AB10100E	1	Enquiry ↗
22	Hex Soc Cap Head Screw M5160.8SF0105067	3	Enquiry ↗
23	Special Washer M8SF0400018	2	Enquiry ↗
24	Top Clamp Smaller BandT0303AB10040N	1	Enquiry ↗
24.1	Top Clamp Smaller Band (Black) Shadow BlackT0303AB10040E	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

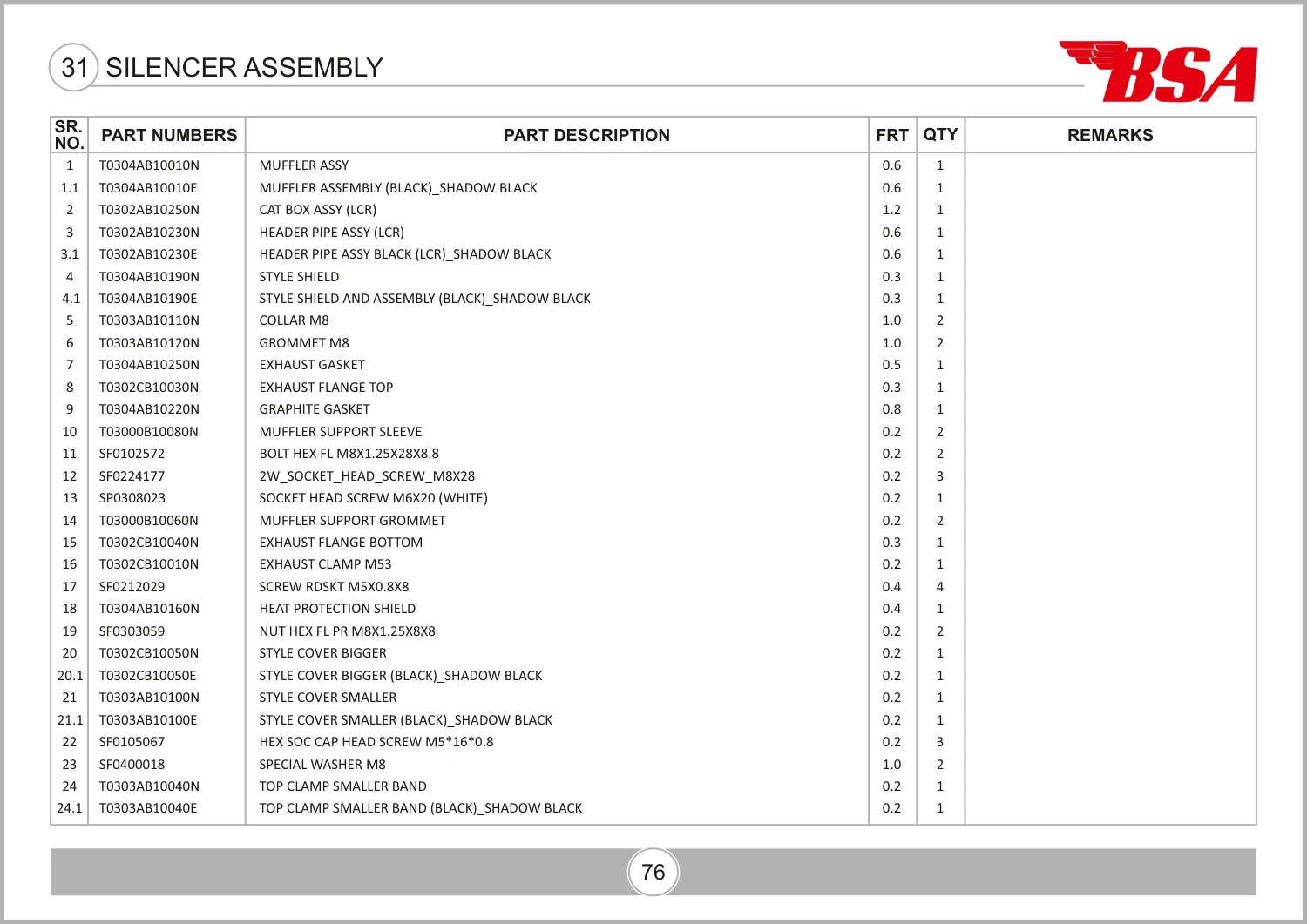

Source: PARTS CATALOUGE - BSA GOLDSTAR_REV-06.pdf · PDF diagram page 87, parts table page 88. View original parts table ↗
