BSA Scrambler 650 · ASSEMBLY 12 · REV 03
Assembly Clutch Cover LH
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
BSA Scrambler 650 · Rev 03 · p. 27Original parts list ↗
Parts in this drawing
15 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Kit Clutch Cover With Needle Bearings, Oil Seal & Decal (Dull Silver)T0202DVF0390F | 1 | |
| 2 | M6X1 85L (Clutch Cover To Adaptor Plate To Ccase)T0218BVF0290N | 3 | |
| 3 | Badge Engine Clutch Cover LHT13200B10040N | 1 | |
| 4 | Shaft Clutch ReleaseT0218BVF0070N | 1 | |
| 5 | Circlip E Type 8X1.0 (Clutch Release Shaft)SF0603019 | 1 | |
| 6 | Oil Seal Clutch Release Shaft Sd12X18X5T0209AVF0020N | 1 | |
| 7 | Lever Clutch ReleaseT0218BVF0090N | 1 | |
| 8 | Bolt M6X1 30L (Clutch Lever)TSF0102296 | 1 | |
| 9 | Paper Gasket Adapter Plate To Clutch CoverT0209DVF0040N | 1 | |
| 10 | M6X1 55L (Clutch Cover To Adaptor Plate)SF0102615 | 5 | |
| 11 | Bolt M6X65 (Clutch Cover To Clucth Adaptor Plate)T0202CVF0490N | 1 | |
| 12 | Aluminium Washer (Ø6.2*Ø12*2)MJ01700005400 | 1 | |
| 13 | M6X1 80L (Clutch Cover To Adaptor Plate To Ccase)T0218BVF0140N | 2 | |
| 14 | Guard Clutch CoverT0202DVF0430N | 1 | |
| 15 | Tape Guard Clutch CoverT0202DVF0470N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

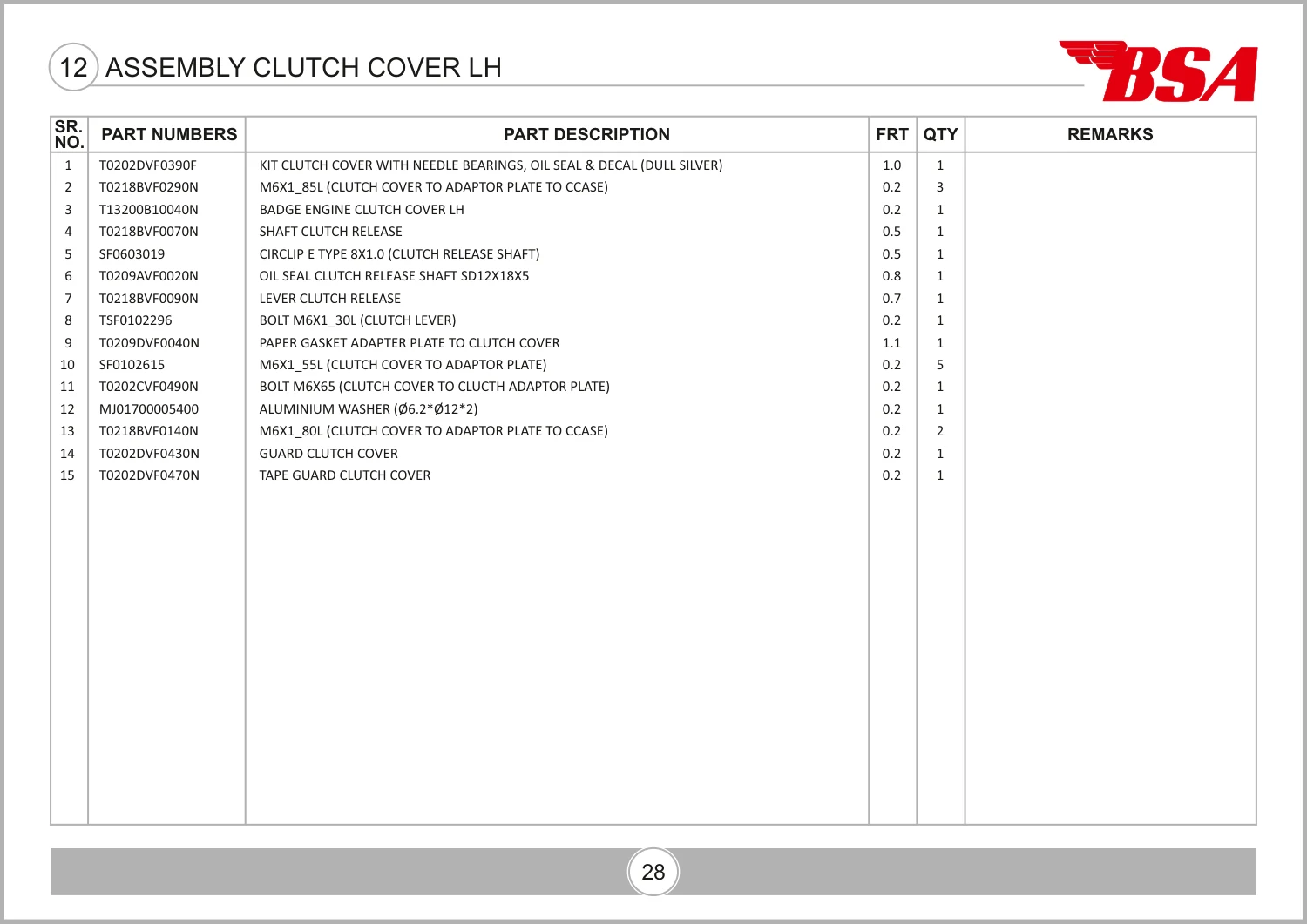

Source: PARTS CATALOUGE - BSA SCRAMBLER_REV_03.pdf · PDF diagram page 37, parts table page 38. View original parts table ↗
