BSA Scrambler 650 · ASSEMBLY 16 · REV 03
Clutch Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
BSA Scrambler 650 · Rev 03 · p. 35Original parts list ↗
Parts in this drawing
18 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Kit Disc Clutch Friction & PressureT0218BVF0310N | 1 | |
| 2 | Spring JudderT0218BVF0330N | 1 | |
| 3 | Spring Seat JudderT0218BVF0340N | 1 | |
| 4 | Clutch HubT0218BVF0320N | 1 | |
| 5 | Thrust Spline Washer 20X34.2X3.5T0215BVF0080N | 1 | |
| 6 | Needle Bearing 25X29X17SP010502608 | 2 | |
| 7 | Complete Outer Component Clutch With GpdnT0218BVF0400N | 1 | |
| 8 | Thrust Washer 25X35X2SF0400047 | 1 | |
| 9 | Clutch Pull Rod (Actuation Rack)T0218BVF0020N | 1 | |
| 10 | Special Washer Pull Rod 26X14.2X1.7T0218BVF0250N | 1 | |
| 11 | Washer Push RodT0218BVF0190N | 1 | |
| 12 | Clutch Pressure Plate With Ball BearingT0218BVF0350N | 1 | |
| 13 | Circlip Ext - Lug 14X1XphSF0601001 | 1 | |
| 14 | Clutch Spring SeatT0218BVF0380N | 3 | |
| 15 | Clutch SpringT0218BVF0370N | 3 | |
| 16 | Plate StopperT0218BVF0360N | 1 | |
| 17 | Flange Bolt M6X35LT0218BVF0390N | 3 | |
| 18 | Assembly A&S ClutchT0218BVF0210N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

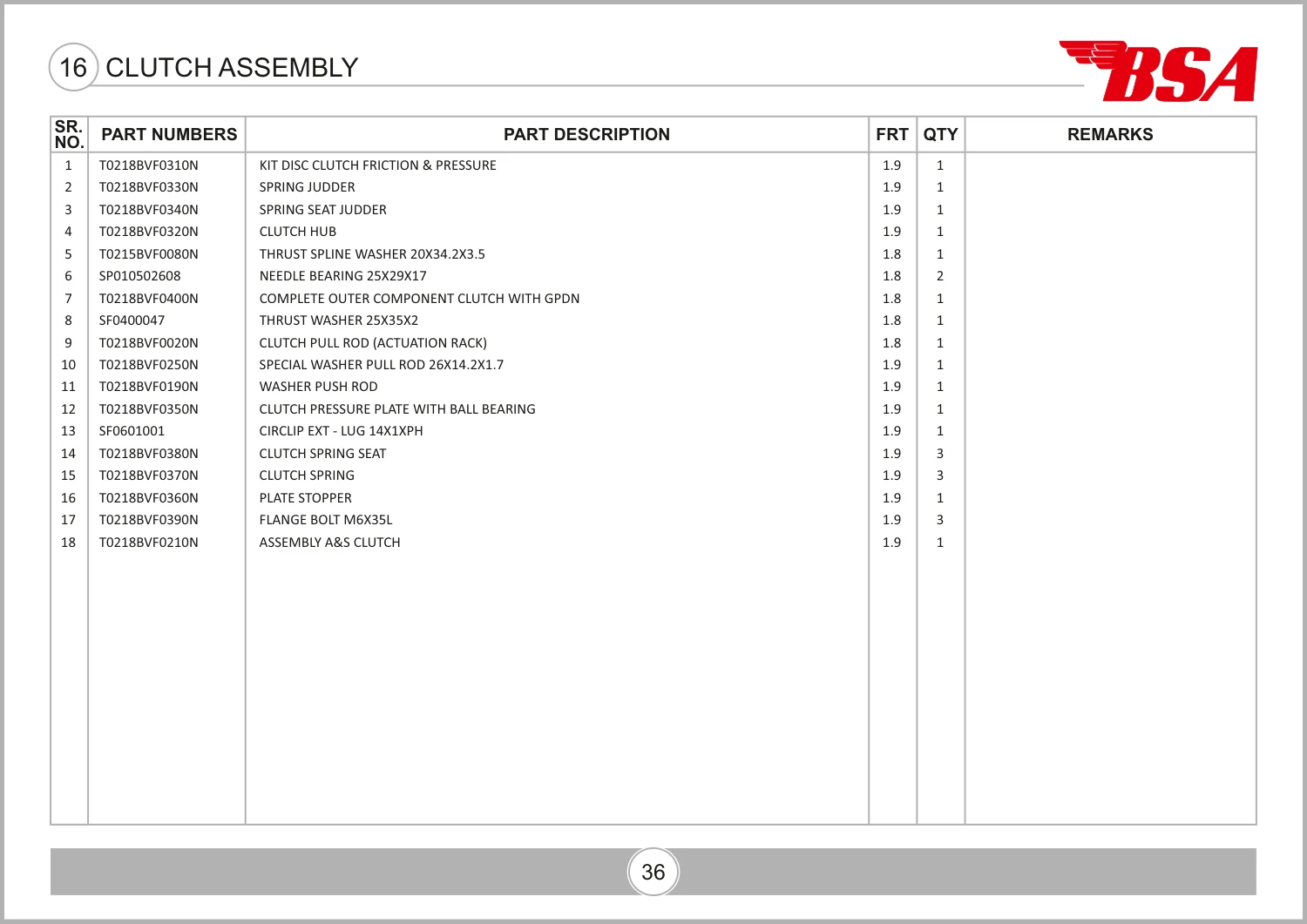

Source: PARTS CATALOUGE - BSA SCRAMBLER_REV_03.pdf · PDF diagram page 45, parts table page 46. View original parts table ↗
