BSA Scrambler 650 · ASSEMBLY 24 · REV 03
Fuel Tank Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
BSA Scrambler 650 · Rev 03 · p. 53Original parts list ↗
Parts in this drawing
24 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Gasket Fuel Sensor Unit - B101T1501PB10140N | 1 | |
| 2 | Fuel ModuleT10050B10010N | 1 | |
| 3 | Fuel Pump Mounting BracketT10050B10020N | 1 | |
| 4 | Washer 6.5X12X2 Thk (Black)TSF0401132 | 6 | |
| 5 | Socket Head Screw M6X12SP0306006 | 6 | |
| 6 | Clamp Spring Band 10.5X8.4X0.8SF0705068 | 2 | |
| 7 | Fuel Hose Fuel Pump To FilterT10050B10040N | 1 | |
| 8 | Support FilterMH00900000800 | 1 | |
| 9 | Fuel FilterT10000KW0340N | 1 | |
| 10 | Hose Filter To ConnectorT10050B10060N | 1 | |
| 11 | Quick Fuel Connector 1 (Elbow)T10050KE0070N | 2 | |
| 12 | Spring Band Clamp Dia 14 Mm (Black)T10050KE0030N | 4 | |
| 13 | Hose Tank To Rollover ValveT10000B10060N | 1 | |
| 14 | Roll Over Valve GrommetT10000KW0170N | 1 | |
| 15 | Roll Over ValveT10000KW0040N | 1 | |
| 16 | Hose Rollover Valve To ConnectorT10000B10070N | 1 | |
| 17 | Clip Tube B895002-02080 | 4 | |
| 18 | Connector Fuel HoseT10050B10070N | 1 | |
| 19 | Fuel Hose Connector To InjectorT10050B10080N | 1 | |
| 20 | Clamp 13.8MmT04000B10050N | 1 | |
| 21 | Fls Mounting Step BoltT10010B10310N | 5 | |
| 22 | Fuel Sensor Unit - B101T1501PB10150N | 1 | |
| 23 | Fuel Pump Rubber GasketT10000B10210N | 1 | |
| 24 | Fuel Filter - Fuel PumpT10000B10220N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

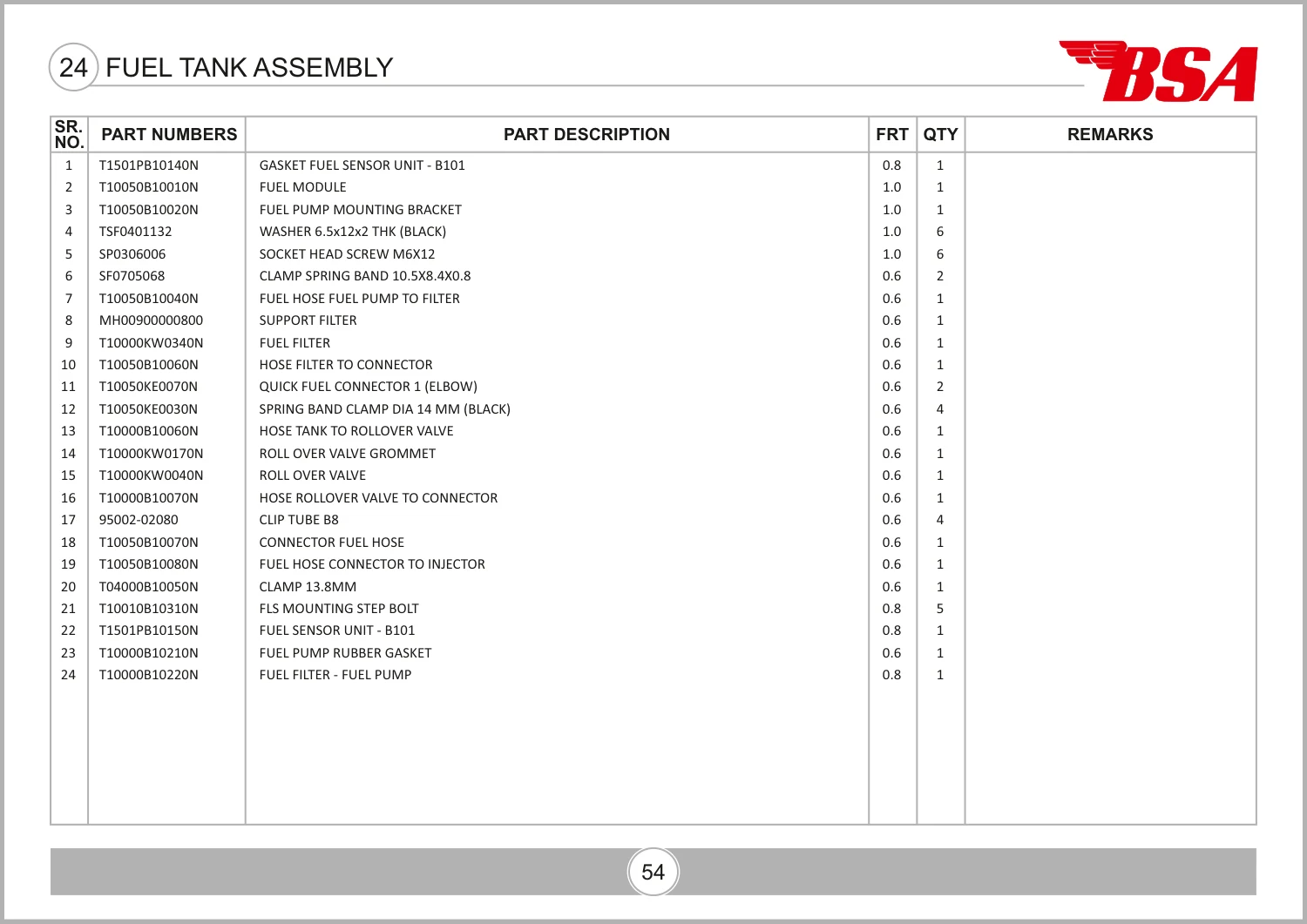

Source: PARTS CATALOUGE - BSA SCRAMBLER_REV_03.pdf · PDF diagram page 63, parts table page 64. View original parts table ↗
