BSA Scrambler 650 · ASSEMBLY 26 · REV 03

Radiator

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

BSA Scrambler 650 Radiator exploded assembly diagram, catalogue page 57

BSA Scrambler 650 · Rev 03 · p. 57Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Hose, Engine - ThermostatT0401DB10160N	1	Enquiry ↗
2	ThermostatT0401DKE0160N	1	Enquiry ↗
3	Thermostat Rubber CoverT0401BKE0240N	1	Enquiry ↗
4	Hose, BypassT0401DB10170N	1	Enquiry ↗
5	Collar M6X4.8LT08020B10010N	2	Enquiry ↗
6	Hose, Thermostat - RadiatorT0401DB10180N	1	Enquiry ↗
7	Radiator 15.9Kw BancoT0401AB10050N	1	Enquiry ↗
8	Radiator CapT0401AJ20080N	1	Enquiry ↗
9	Radiator GrillT0401AB40010N	1	Enquiry ↗
10	Socket Head Screw M6X16 Black (Locktite)TSF0224080	4	Enquiry ↗
11	Radiator Fan - B101T0401FB10010N	1	Enquiry ↗
12	Flanged Head Bolt-Sh M6X12SP0906041	3	Enquiry ↗
13	Hose, Radiator - EngineT0401DB10190N	1	Enquiry ↗
14	Spring Band Clamp Dia 24Mm (Black)T0401DKE0290N	2	Enquiry ↗
15	Spring Band Clamp Dia 28Mm (Black)T0401DKE0270N	6	Enquiry ↗
16	Hose, Radiator - TankT0401DB10200N	1	Enquiry ↗
17	Expansion Tank, CoolantT0401DB10220N	1	Enquiry ↗
18	Hose, Tank BreatherT0401DB10210N	1	Enquiry ↗
19	Spring Band Clamp Dia 11T10050KE0100N	3	Enquiry ↗
20	Flange Bolt M6*14TSF0102282	2	Enquiry ↗
21	Grommet For M6MH01610001700	4	Enquiry ↗
22	Collar Fairing MountingT13160KG0210N	1	Enquiry ↗
23	Flange Bolt M6X1895801-06018-07	1	Enquiry ↗
24	Cap Coolant TankT04000KW0130N	1	Enquiry ↗
25	Radiator Cap Badge BSA 1.4 BarT0401AB10070N	1	Enquiry ↗
26	Radiator Cover LH Roadster Grey + Red DecalT0401BB40020L THUNDER GREY	1	Enquiry ↗
26.1	Radiator Cover LH Ebony Black + Red DecalT0401BB40020E RAVEN BLACK	1	Enquiry ↗
26.2	Radiator Cover LH Ebony Black +Yellow DecalT0401BB40020D VICTOR YELLOW	1	Enquiry ↗
27	Radiator Cover RH Roadster Grey + Red DecalT0401BB40030L THUNDER GREY	1	Enquiry ↗
27.1	Radiator Cover RH Ebony Black + Red DecalT0401BB40030E RAVEN BLACK	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

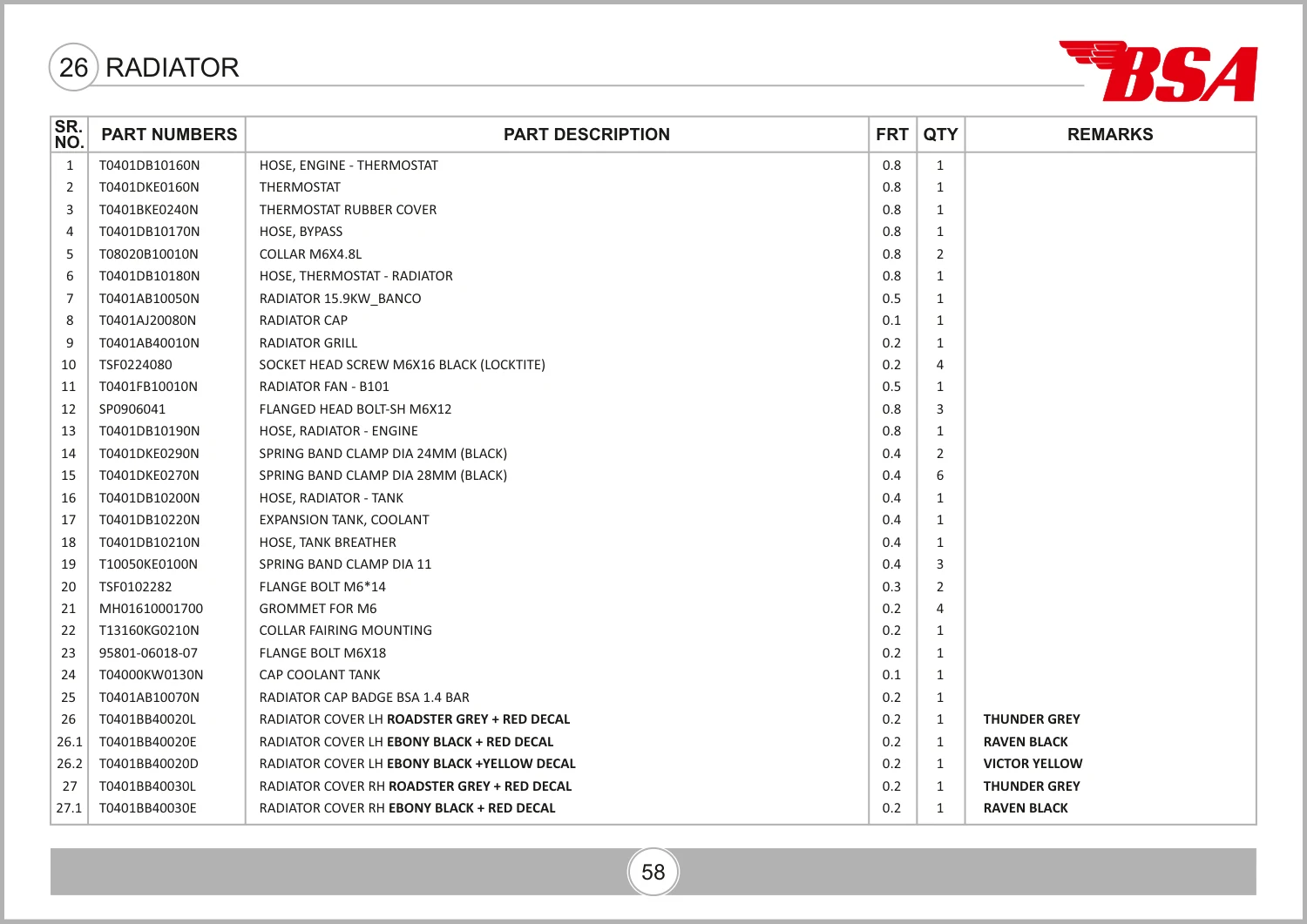

Source: PARTS CATALOUGE - BSA SCRAMBLER_REV_03.pdf · PDF diagram page 67, parts table page 68. View original parts table ↗
