BSA Scrambler 650 · ASSEMBLY 28 · REV 03

Rear Wheel Assembly

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

BSA Scrambler 650 Rear Wheel Assembly exploded assembly diagram, catalogue page 65

BSA Scrambler 650 · Rev 03 · p. 65Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Wheel Hub Comp Rear, Machining B1 BlackT1201HB10010E	1	Enquiry ↗
2	Alloy Rim, Rear Spoke Wheel (Mt4.25X17) Shadow BlackT1201KB10010N	1	Enquiry ↗
3	Wheel Spoke B1T1201KB10060N	36	Enquiry ↗
4	Spoke Nipple B1T0601JB10030N	36	Enquiry ↗
5	Rim Assembly, Rear B1T1201KB40020E	1	Enquiry ↗
6	Wheel Bearing 6203 (17X40X12)NbcT0601DKW0021N	2	Enquiry ↗
7	Circlip Int - Lug 40X1.75XphSF0602007	1	Enquiry ↗
8	Front Dust Seal (A22X40X7) Hi-Tech AraiT0601EKW0021N	1	Enquiry ↗
9	Rear Disc (LH, D=255)T1201JB10010N	1	Enquiry ↗
10	Toner Wheel FrontT0602LKE0010N	1	Enquiry ↗
11	Screw Special M8X1.25X28Xa2-70SF0200097	5	Enquiry ↗
12	External Spacer RHT0601CKW0020N	1	Enquiry ↗
13	Axle, Rear Wheel B1T1201GB10010N	1	Enquiry ↗
14	Spacer Assy Inner, Rear Wheel B1T1201CB10050N	1	Enquiry ↗
15	O-Ring, Rear WheelT1201EB10020N	1	Enquiry ↗
16	Cush Drive B1T1201LB10010N	3	Enquiry ↗
17	Spacer, Cush Drive Housing B1T1201CB10040N	1	Enquiry ↗
18	Self-Tapping Nut For M8 (White)MH01680001700	6	Enquiry ↗
19	Cush Drive Housing, Machined - Black Shadow BlackT1201KB10040E	1	Enquiry ↗
20	Chain Sprocket 53TT1201MB40010N	1	Enquiry ↗
21	Socket Head Screw M8X28 (White)SP0308023	6	Enquiry ↗
22	Cush Drive Housing Bearing 6005(25X47X12) NbcT1201DKW0031N	1	Enquiry ↗
23	Circlip Int - Lug 47X1.75XphSF0602010	1	Enquiry ↗
24	Rear LH Dust Seal A31X47X7 Hi-Tech AraiT1201EKW0021N	1	Enquiry ↗
25	Spacer Rear Wheel (LH Side)T1201CKW0020N	1	Enquiry ↗
26	Washer 16MmTSF0400010	1	Enquiry ↗
27	Self Lock Nut M16TSF0318003	1	Enquiry ↗
28	Chain Final Drive 113 Links+1 Master LinkT14080B40030N	1	Enquiry ↗
29	Kit Drive Chain SprocketT14010B40010N	1	Enquiry ↗
30	Master Link AssemblyT14010B40020N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

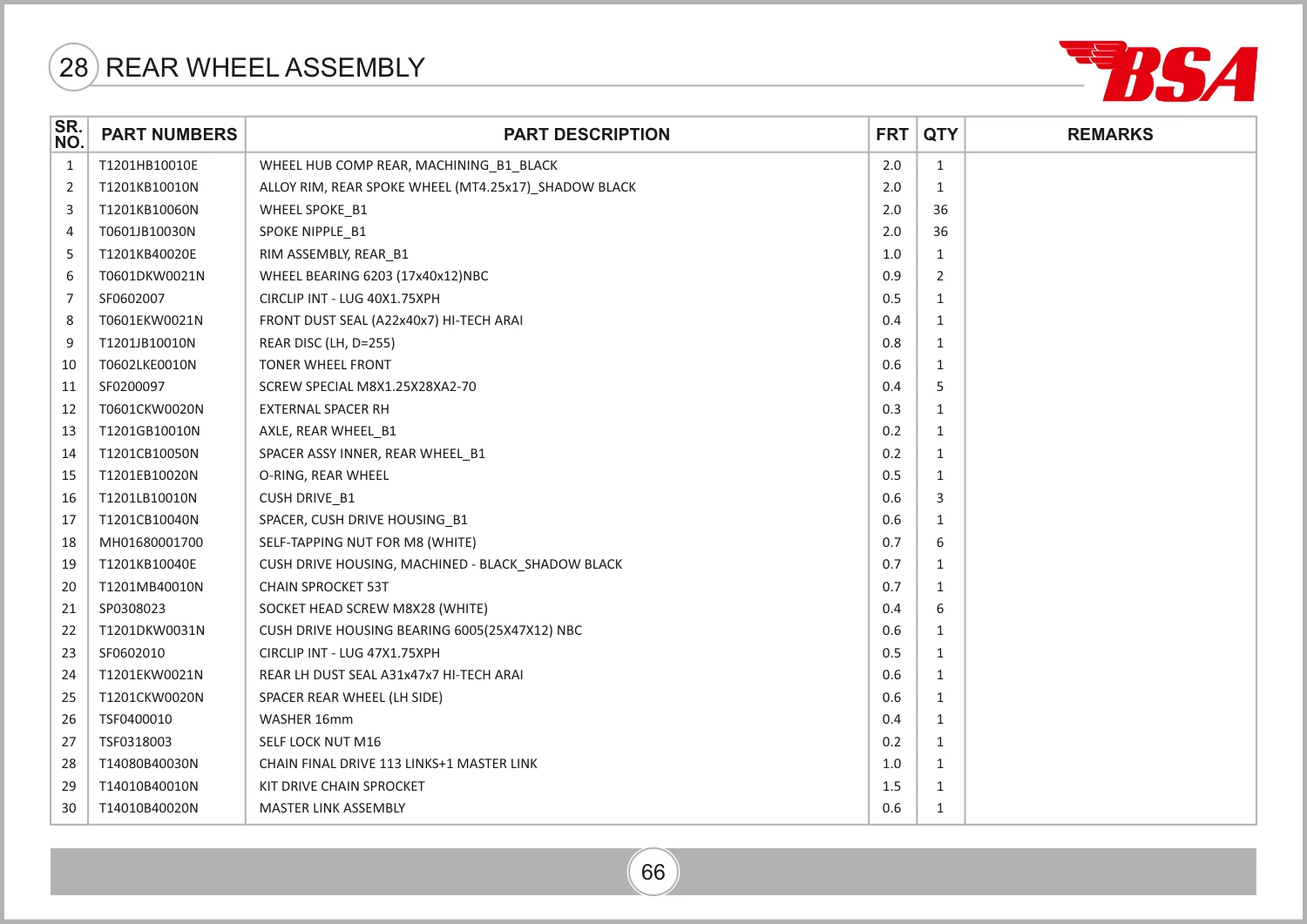

Source: PARTS CATALOUGE - BSA SCRAMBLER_REV_03.pdf · PDF diagram page 75, parts table page 76. View original parts table ↗
