BSA Scrambler 650 · ASSEMBLY 40 · REV 03

Electrical System Assembly On Frame

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

BSA Scrambler 650 Electrical System Assembly On Frame exploded assembly diagram, catalogue page 95

BSA Scrambler 650 · Rev 03 · p. 95Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Regulator Rectifier - J1T1501CB10010N	1	Enquiry ↗
2	Washer M6 (6.4X12X1.6)TSF0401132	2	Enquiry ↗
3	Socket Head Screw M6X30SP0306019	2	Enquiry ↗
4	RR Mounting BracketT08000B10440N	1	Enquiry ↗
5	Ignition Coil - B101T1502CB10010N FITTED TILL - XXXXXX	2	Enquiry ↗
6	Washer 6.5X20X1.6TSF0401124	4	Enquiry ↗
7	Socket Head Screw M6X20SP0306008	4	Enquiry ↗
8	Pad Battery BoxT1503DKE0250N	1	Enquiry ↗
9	Electronic Control Unit-B401T1502GB40010N	1	Enquiry ↗
9.1	Electronic Control Unit Hardware (Twin Spark)T1502GB10040N ONLY HARDWARE	1	Enquiry ↗
10	Clamp ECUT08000B10220N	1	Enquiry ↗
11	Bolt Flange 6X12 (Black)95701-06012-07	6	Enquiry ↗
12	Screw Rdskt M6X1X12Xa2-70SF0212023	1	Enquiry ↗
13	Foam Battery ClampT15010KE0840N	1	Enquiry ↗
14	Clamp BatteryT08000B10160N	1	Enquiry ↗
15	Wiring Battery PositiveT1503AB10020N	1	Enquiry ↗
16	Wiring Battery NegativeT1503AB10030N	1	Enquiry ↗
17	Bolt For Terminal M695701-06012-00	2	Enquiry ↗
18	Cover Lambda Sensor (Black)T0302AJ10170E	1	Enquiry ↗
19	Usb Charging PortT15000B10020N	1	Enquiry ↗
20	Usb Charger StayT07000B10020N	1	Enquiry ↗
21	Bolt Socket Head Cap Screw (M5X10)TSF0224077	4	Enquiry ↗
22	Clutch Lever AssyT0701CY50020N	1	Enquiry ↗
23	Electronic Purge Control ValveT1501PB10020N	1	Enquiry ↗
24	Lambda Sensor B101 Down StrimeT15000B10050N	1	Enquiry ↗
25	Nut Hex Fl Pr M6X1.0X7.0X8SF0303067	1	Enquiry ↗
26	Bracket Relay Mounting (BSA)T13070B10080N	1	Enquiry ↗
27	Plastic Rivet Dia 7.0 MmT13000B10250N	2	Enquiry ↗
28	Hazard Relay - Led IndicatorsT1501FY50030N	4	Enquiry ↗
29	Russ Head Screw M5X24TSF0212009	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

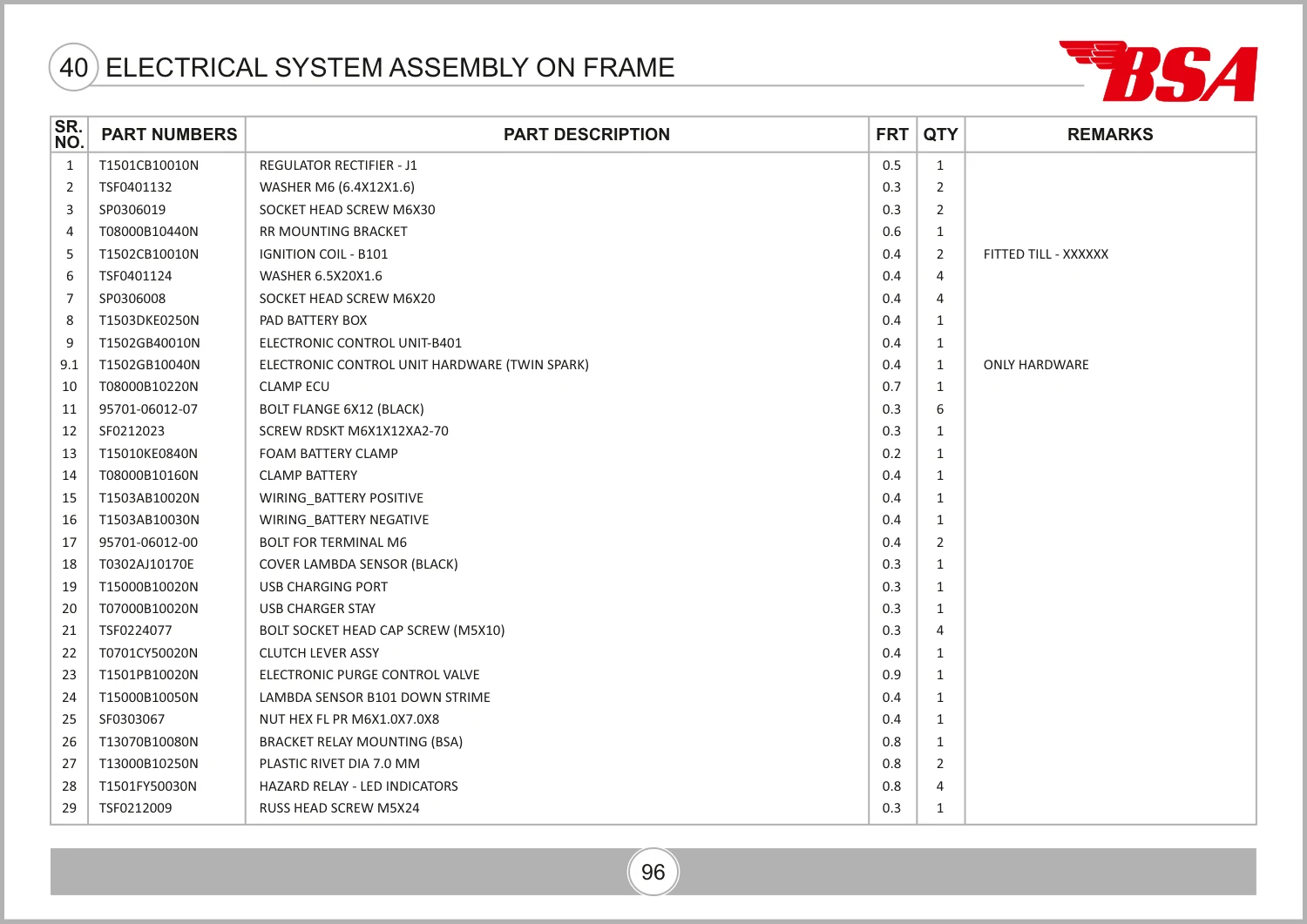

Source: PARTS CATALOUGE - BSA SCRAMBLER_REV_03.pdf · PDF diagram page 105, parts table page 106. View original parts table ↗
