Jawa Perak · ASSEMBLY 5 · REV 24

Drum Asm & Shift Shaft Mech Cambine

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa Perak · Rev 24 · p. 13Original parts list ↗

24 entries

Ref.	Part name / number	Assembly qty.	Action
1	Lever Complete Gear Shift With Torsion SpringT0215CUF0580N	1	Enquiry ↗
2	Shaft, Fork Gear ShiftT0215CUF0430N	1	Enquiry ↗
3	Fork, Gear Shift 3Rd,4Th - Input / MiddleT0215CUF0440N	1	Enquiry ↗
4	Fork, Gear Shift 2Nd,6Th - Output / BottomT0215CUF0450N	1	Enquiry ↗
5	Fork, Gear Shift 1St,5Th - Output / TopT0215CUF0460N	1	Enquiry ↗
6	Pin Star DrumT0215CUF0400N	1	Enquiry ↗
7	Star DrumT0215CVG0080N	1	Enquiry ↗
8	Washer, Star Drum Bolt(Ø6.4Ø151)T18010UF0150N	1	Enquiry ↗
9	Bolt,Hex Flange Sh - M6X20SP0906029	1	Enquiry ↗
10	Assembly Stopper Comp Gear Shift DrumT0215CUF0650N	1	Enquiry ↗
11	Assembly, Shift DrumT0215CVG0050N	1	Enquiry ↗
12	Bolt, Hex Flange Sh - M6X20SP0906029	1	Enquiry ↗
13	Drumlock SpringT0202CUF0480N	1	Enquiry ↗
14	Circlip, Ø12Ø200.5T0215CUF0350N	2	Enquiry ↗
15	Bearing Needle SkfT18050UF0190N	1	Enquiry ↗
16	Sliding Contact Neutral SwitchT0217AUF0030N	1	Enquiry ↗
17	Washer, Shift Shaft (Ø14Ø200.5)T18010UF0120N	3	Enquiry ↗
18	Slector Torsion SpringT0215CUF0340N	1	Enquiry ↗
19	Torsion SpringT0215CUF0570N	1	Enquiry ↗
20	Washer, Shift Shaft (Ø14Ø201)T18010UF1000N	1	Enquiry ↗
21	Bolt, Shifter Stopper - M8X1.25T0202CUF0780N	1	Enquiry ↗
22	Neutral Switch With O RingT0217AUF0010N	1	Enquiry ↗
23	Oil Seal, Neutral SwitchT18020UF0100N	1	Enquiry ↗
24	Chain Slider BushT02200KE0010N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

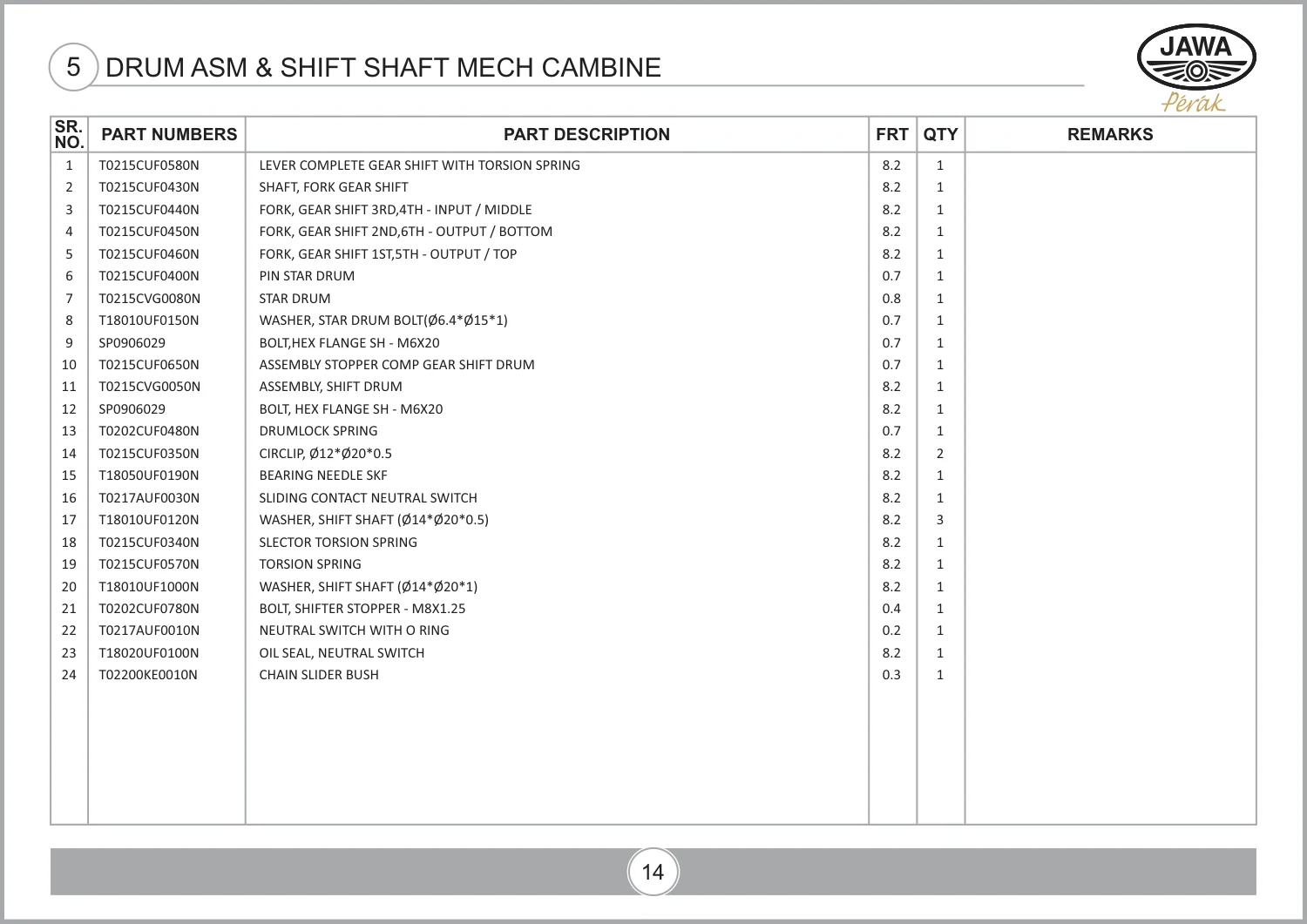

Source: PARTS CATALOGUE - JAWA PERAK_REV-24.pdf · PDF diagram page 25, parts table page 26. View original parts table ↗
