Balancer Shaft Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa Perak · Rev 24 · p. 27Original parts list ↗
Parts in this drawing
11 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Balancer Shaft Fixed GearT0204EUF0070N | 1 | |
| 2 | Plate SpringT0204EUF0100N | 1 | |
| 3 | Circlip (F30)T0204EUF0110N | 1 | |
| 4 | Cylinder SpringT0204EUF0090N | 2 | |
| 5 | Balancer Gear, DampingT0204EUF0080N | 1 | |
| 6 | Circlip A17X1T0204EUF0120N | 1 | |
| 7 | Body Balancer Bs ViT0204EUF0060N | 1 | |
| 7.1 | Balancer Shaft C334 (NVH) OBD IIT0204EVG0020N | 1 | |
| 8 | Key LockT18080UF0030N | 1 | |
| 9 | Assembly Balancer Shaft Complete Bs ViT0204EUF0050N | 1 | |
| 9.1 | Assembly, Balancer Shaft C334 (NVH) OBD IIT0204EVG0010N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

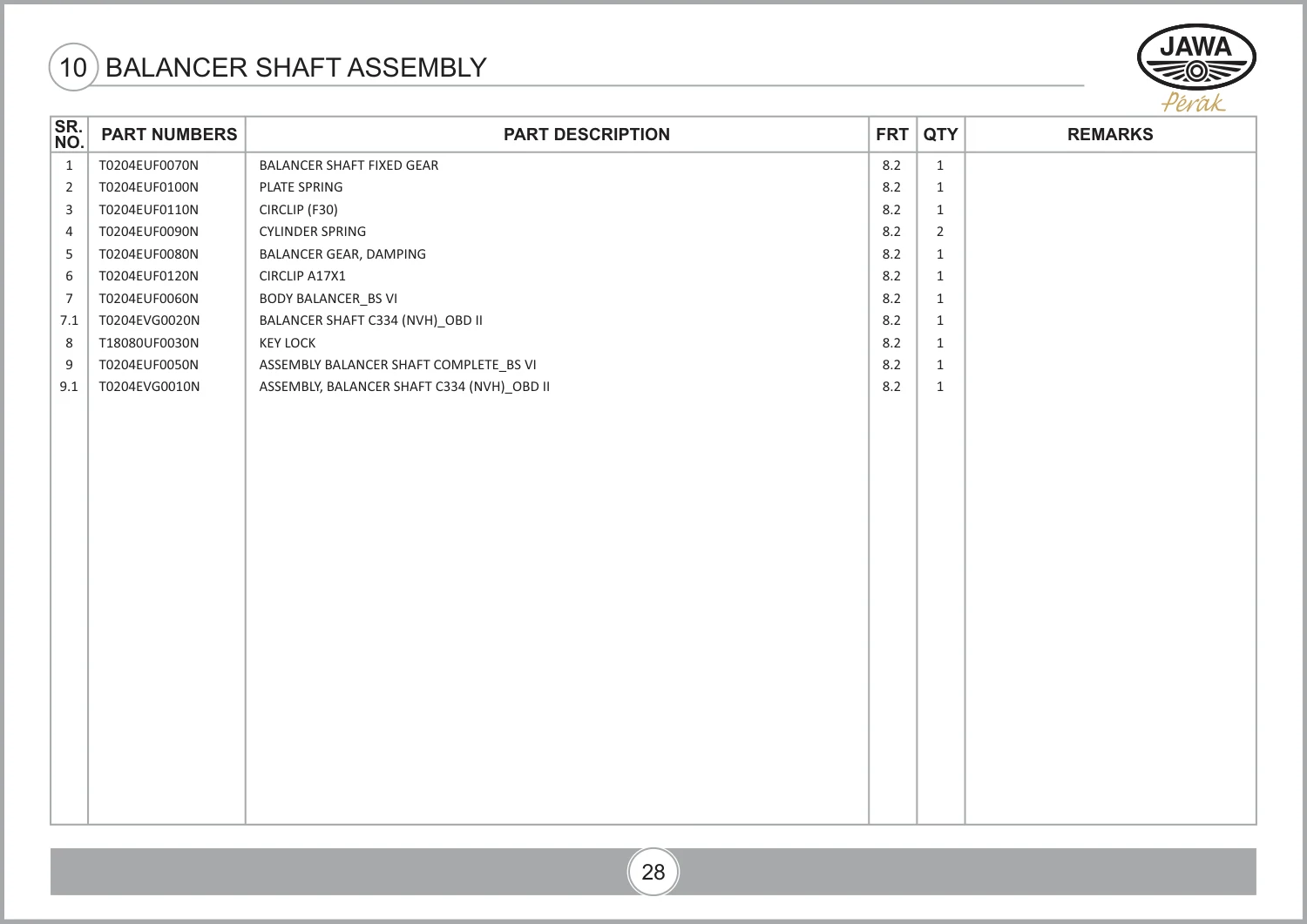

Source: PARTS CATALOGUE - JAWA PERAK_REV-24.pdf · PDF diagram page 39, parts table page 40. View original parts table ↗
