Jawa Perak · ASSEMBLY 12 · REV 24
Transmission System - Bs Vi
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa Perak · Rev 24 · p. 33Original parts list ↗
Parts in this drawing
11 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 31 | Washer Ø17.2*Ø26*1T18010UF0100N | 1 | |
| 31 | Washer 17.2 X 26 X Thk. (1.000 To 1.050)T0215AUF0990N | 1 | |
| 31 | Washer 17.2 X 26 X Thk. (1.051 To 1.100)T0215AUF1000N | 1 | |
| 31 | Washer 17.2 X 26 X Thk. (1.101 To 1.150)T0215AUF1010N | 1 | |
| 31 | Washer 17.2 X 26 X Thk. (1.151 To 1.200)T0215AUF1020N | 1 | |
| 31 | Washer 17.2 X 26 X Thk. (1.201 To 1.250)T0215AUF1030N | 1 | |
| 31 | Washer 17.2 X 26 X Thk. (1.251 To 1.300)T0215AUF1040N | 1 | |
| 32 | Bearing Output ShaftT18050UF0170N | 1 | |
| 33 | Assembly, Input ShaftT0215AUF0100N | 1 | |
| 34 | Assembly, Output ShaftT0215AUF0180N | 1 | |
| 35 | Bearing Output ShaftT18050UF0140N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

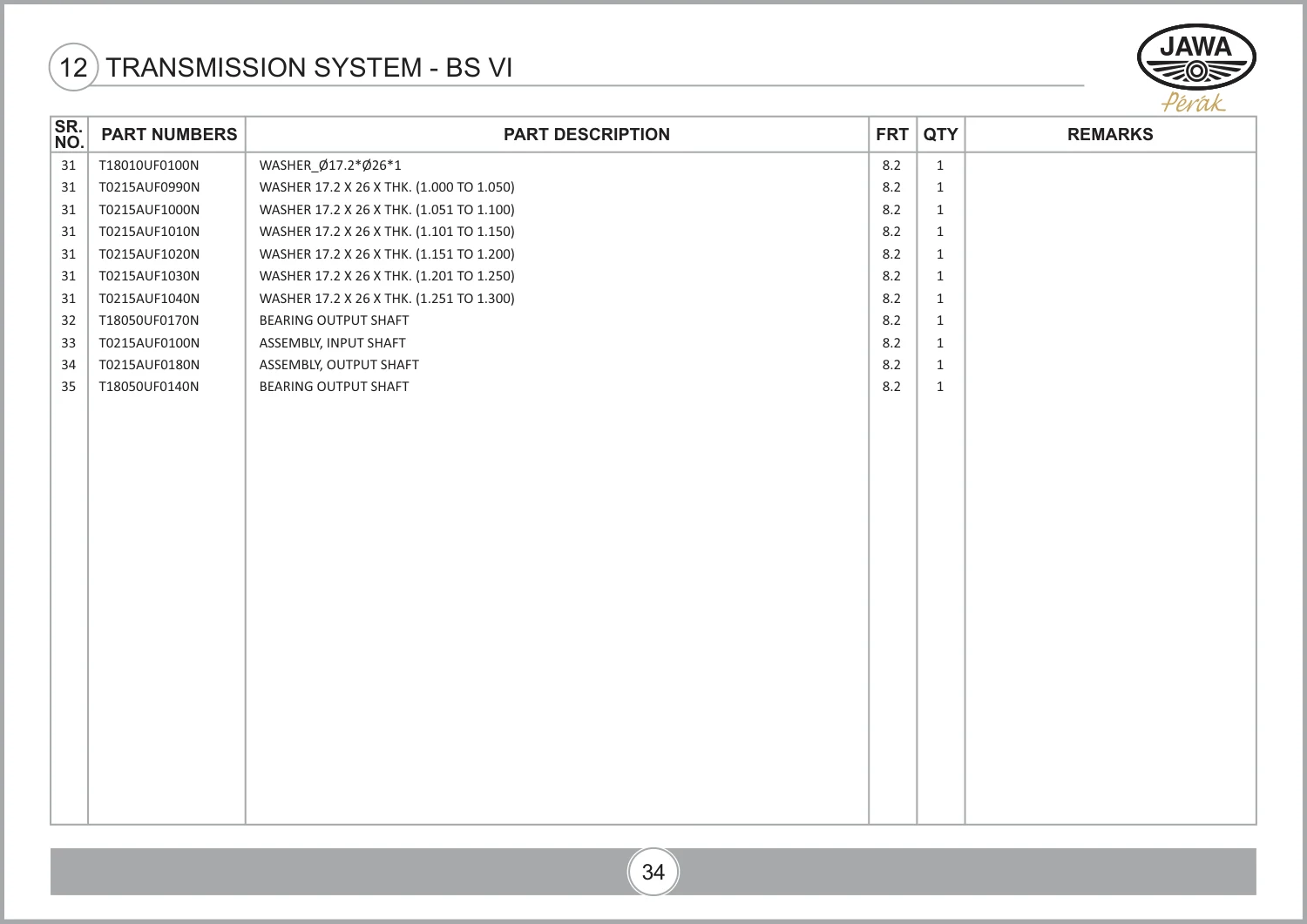

Source: PARTS CATALOGUE - JAWA PERAK_REV-24.pdf · PDF diagram page 45, parts table page 46. View original parts table ↗
