Jawa Perak · ASSEMBLY 14 · REV 24
Transmission System - [Fitted From - Mzdj32C16R1H00862]
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
![Jawa Perak Transmission System - [Fitted From - Mzdj32C16R1H00862] exploded assembly diagram, catalogue page 41](/jawa-spare/assets/diagrams/jawa-perak-p053.webp)
Jawa Perak · Rev 24 · p. 41Original parts list ↗
Parts in this drawing
6 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 31 | Washer Ø17.2*Ø26*1 (Z Series In Ppc Bom) (Vave)T0215DVG0510N | 1 | |
| 32 | Bearing Output Shaft (6203.C3) (Ø17*Ø40*12)T0215DVG0550N | 1 | |
| 33 | Assembly, Input Shaft (NVH Final) (Vave)T0215DVG0370N | 1 | |
| 34 | Assembly, Output Shaft (NVH Final) (Vave)T0215DVG0380N | 1 | |
| 35 | Bearing Output ShaftT18050UF0140N | 1 | |
| 36 | Bush, 5Th Gear (NVH Final) (All New Part Addition)T0215DVG0260N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

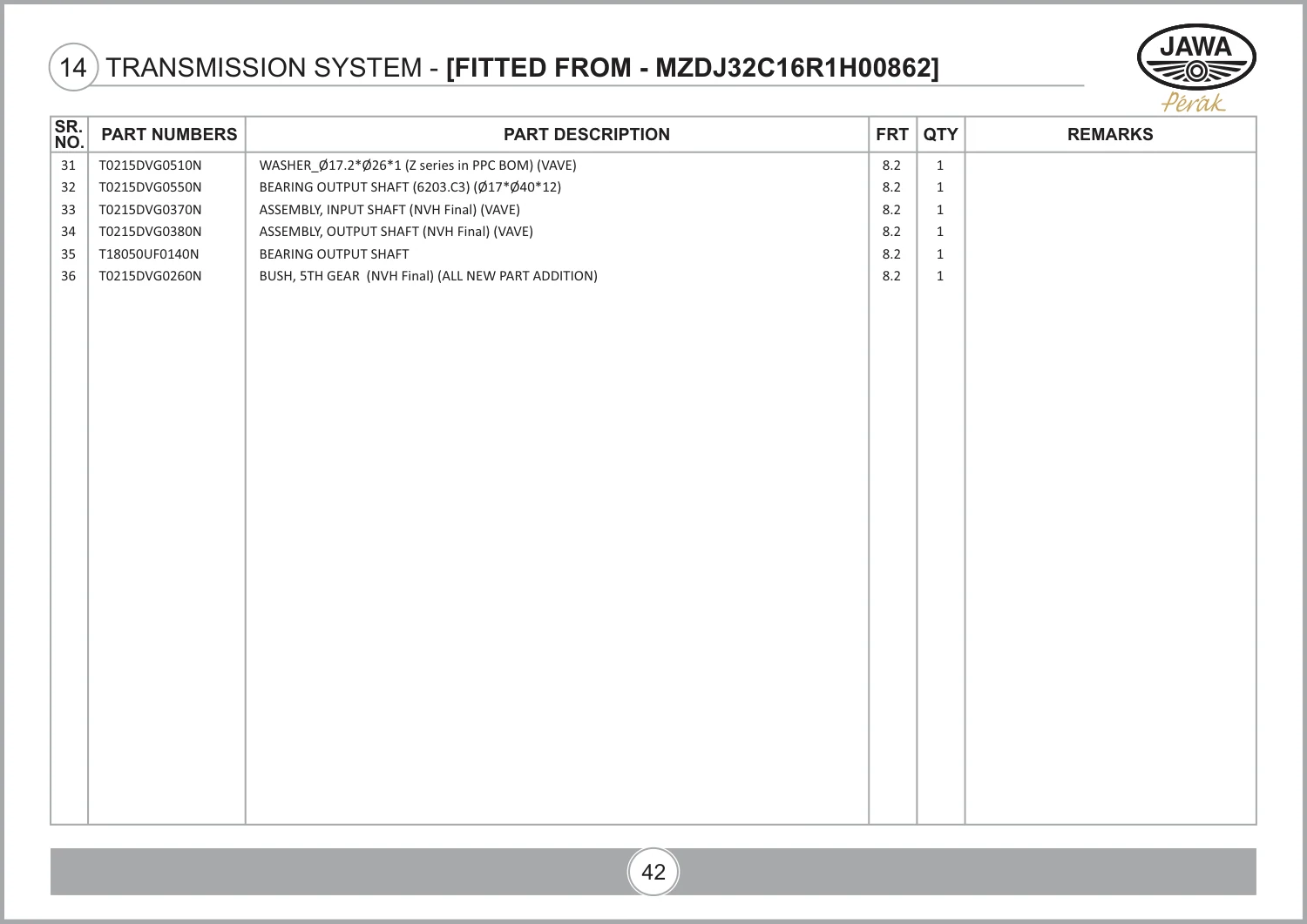

Source: PARTS CATALOGUE - JAWA PERAK_REV-24.pdf · PDF diagram page 53, parts table page 54. View original parts table ↗
