Jawa Perak · ASSEMBLY 15 · REV 24
R Crankcase Cover
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa Perak · Rev 24 · p. 45Original parts list ↗
Parts in this drawing
19 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 26 | O-Ring, Cover Coolant PumpT0209BVE0010N | 1 | |
| 27 | Oil Filter AssemblyT0203BUF0260N | 1 | |
| 28 | Hose Pipe To Cylinder BlockT04000KW0050N | 1 | |
| 29 | Spring Band Clamp Dia 24T0401DKE0290N | 2 | |
| 30 | Asm Coolant Pump ShaftT0204AVE0070N | 1 | |
| 31 | Shaft Coolant Pump C300T0401EVE0010N | 1 | |
| 32 | Dg Ball Brg 12X28X8 6001MF01850000300 | 1 | |
| 32.1 | Deep Groove Ball Bearing 6001.C3 12X28X8 (Vave)T0215DVG0571N | 1 | |
| 33 | Coolant Pump Gear BlackT0401EUF0090N | 1 | |
| 33.1 | Coolant Pump Gear Black Mat Raven TextureT0401EVG0030N | 1 | |
| 34 | Circlip Ext - Lug 12X1.5SF0601216 | 1 | |
| 35 | Pin Water Pump GearT0202DUF0850N | 1 | |
| 36 | Screw Ftcs Cr Sl M6X1X18X8.8SF0211009 | 1 | |
| 37 | Bearing Dg Ball Sr 12X24X6SP010102309 | 1 | |
| 38 | ImpellerT0401EUF0030N | 1 | |
| 39 | Water SealT0401EUF0040N | 1 | |
| 40 | Plate RetainerT0401BVE0010N | 1 | |
| 41 | Dowel Pin, Hollow (Ø8*12)MJ01760000500 | 4 | |
| 42 | Flange Bolt Sh - M6 X 40SP0906032 | 4 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

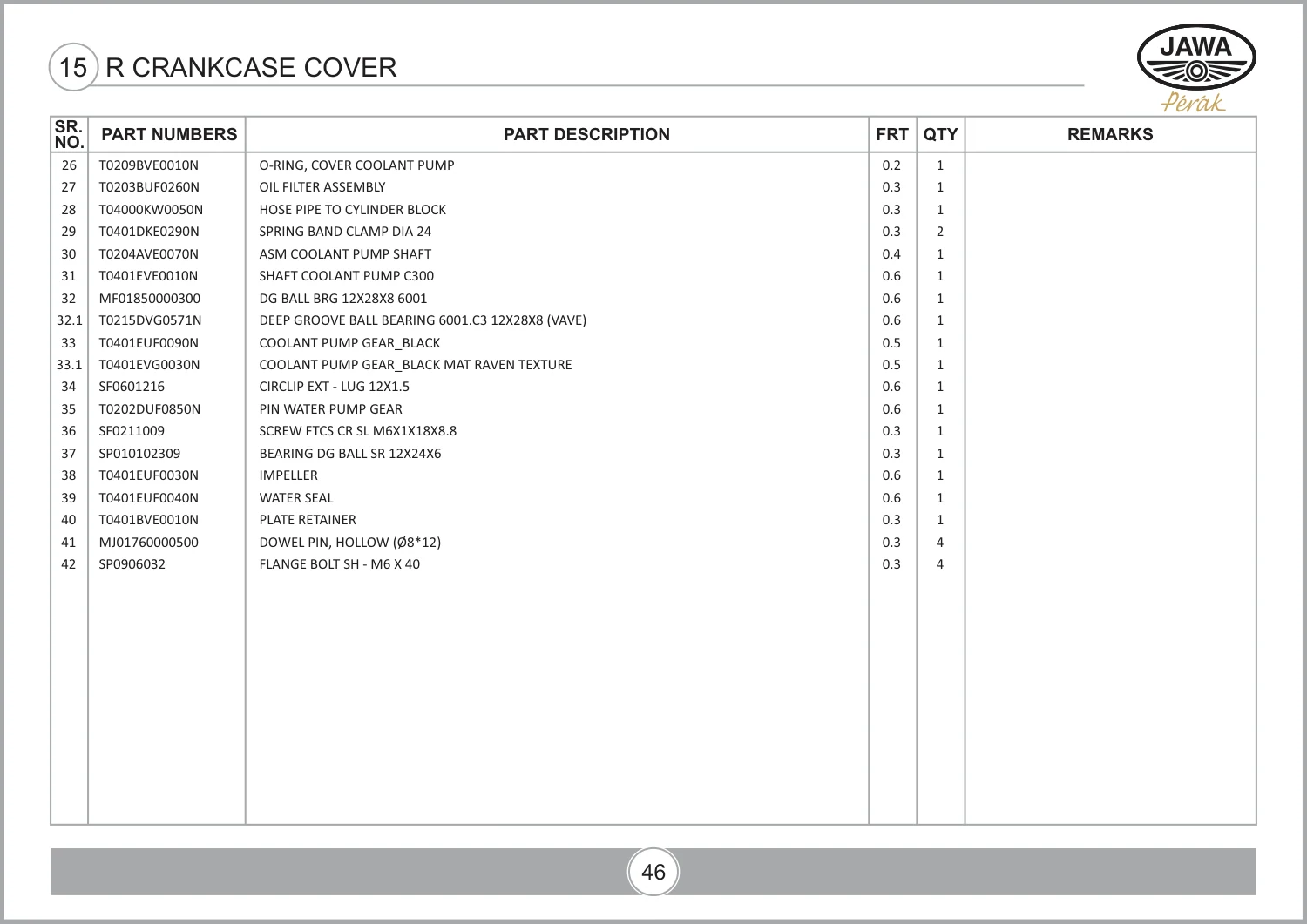

Source: PARTS CATALOGUE - JAWA PERAK_REV-24.pdf · PDF diagram page 57, parts table page 58. View original parts table ↗
