Jawa Perak · ASSEMBLY 26 · REV 24

Brake System Rear - Fwd Footrest

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa Perak Brake System Rear - Fwd Footrest exploded assembly diagram, catalogue page 69

Jawa Perak · Rev 24 · p. 69Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Socket Head Screw M6X16 Black (Locktite)TSF0224080	1	Enquiry ↗
2	Speed Sensor Front Wheel M104T0602FKE0010N	1	Enquiry ↗
3	Wet ABS Unit J1 Dual ChannelT2501AKW0021N	1	Enquiry ↗
4	Rear Reservoir Hose ClipT25000KW0010N	2	Enquiry ↗
5	Banjo Bolt KitT1901JKW0020N	3	Enquiry ↗
6	A02-Split Pin 2 X 16 Is:549MF01920001500	1	Enquiry ↗
7	Kit Hose, ABS To Rear Master CylinderT2501HJ30080N	1	Enquiry ↗
8	Kit Hose, ABS To Rear CaliperT2501HJ30060N	1	Enquiry ↗
9	Caliper Assy, Rear Brake RHT2001CKW0040N	1	Enquiry ↗
10	Master Cylinder Assy -Rear (Ø 12),J302T2501EJ30050N	1	Enquiry ↗
11	Screw Hex Fl M6X1X18X8.8TSF0102271	2	Enquiry ↗
12	Reservoir ABS (J101)T25010KE0030N	1	Enquiry ↗
13	Hose, Reservoir J302T2501EJ30070N	1	Enquiry ↗
14	Washer 6.5X12.7X1T0208AVF0140N	1	Enquiry ↗
15	Cable Strap 200MmT1501AKE2050E	4	Enquiry ↗
16	Return Spring, Rear Brake Pedal J302T2001BJ30010N	1	Enquiry ↗
17	Rear Brake Lever Complete J302T20010J30030N	1	Enquiry ↗
18	Screw Rdskt M6X1X12Xa2-70SF0212023	1	Enquiry ↗
19	Locking PinT25000KE0310N	1	Enquiry ↗
20	Rear Master Cyl Pressure Switch KitT2501EKW0020N	1	Enquiry ↗
21	Rear Brake Pad KitT2001KKW0020N	1	Enquiry ↗
22	Boot KitT2001KKW0040N	1	Enquiry ↗
23	Bleeder Screw KitT2001KKW0010N	1	Enquiry ↗
24	Pad Pin KitT2001KKW0030N	1	Enquiry ↗
25	Double Cable Clip Rev0 L1 A2T1501AKW0070N	2	Enquiry ↗
26	Cover Rear Master CylinderT20000J30010N	1	Enquiry ↗
27	Pivot Link Rear Brake Lever J302T2001CJ30030N	1	Enquiry ↗
28	Screw Hex Fl M6X1X28X8.8SF0202349	1	Enquiry ↗
29	Cover Rear CaliperT13070Y50100N	1	Enquiry ↗
30	Clip Constant 8X4.75SF5201005	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

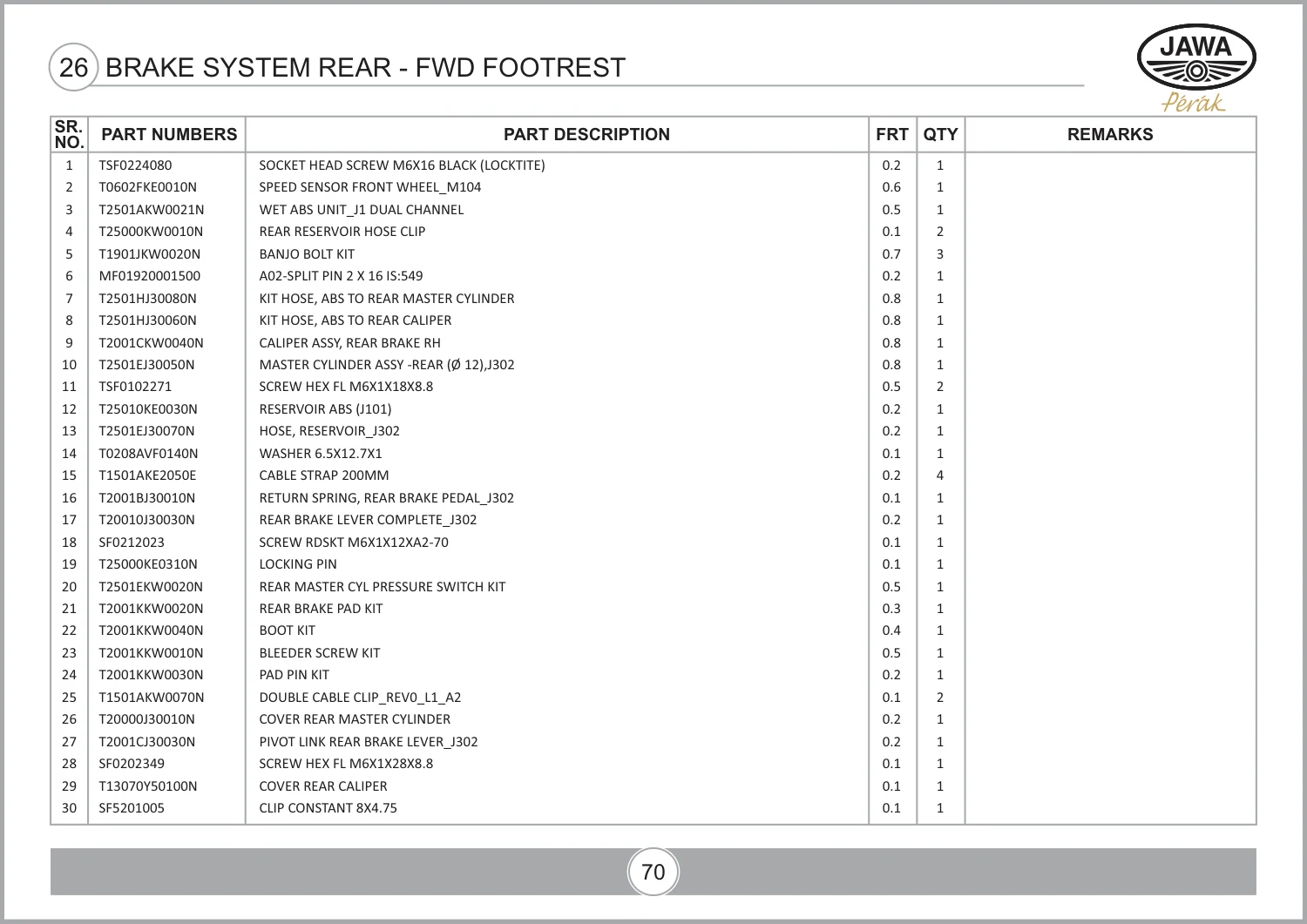

Source: PARTS CATALOGUE - JAWA PERAK_REV-24.pdf · PDF diagram page 81, parts table page 82. View original parts table ↗
