Jawa Perak · ASSEMBLY 32 · REV 24
Front Mudguard Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa Perak · Rev 24 · p. 87Original parts list ↗
Parts in this drawing
10 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Nut Flange 6 Mm65538380 | 8 | |
| 2 | Button Head Socket Screw M6X16TSF0212011 | 2 | |
| 3 | Screw Socket M6X1X20X8.8SF0224110 | 8 | |
| 4 | Front Fender StayT13060J30030N | 2 | |
| 5 | Front Fender Mud FlapT13060J30010N | 1 | |
| 6 | Front Fender Matt Charcoal GreyT13060J30020L | 1 | |
| 6.1 | Front Fender Ebony Matt Black Fwd FootrestT13060J30020W | 1 | |
| 7 | Screw Rdskt M6X1X8X8.8SF0212030 | 4 | |
| 8 | Washer M6 (6.5 X 12 X 2)TSF0401132 | 2 | |
| 9 | Beading Front FenderT1306AKW0030N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

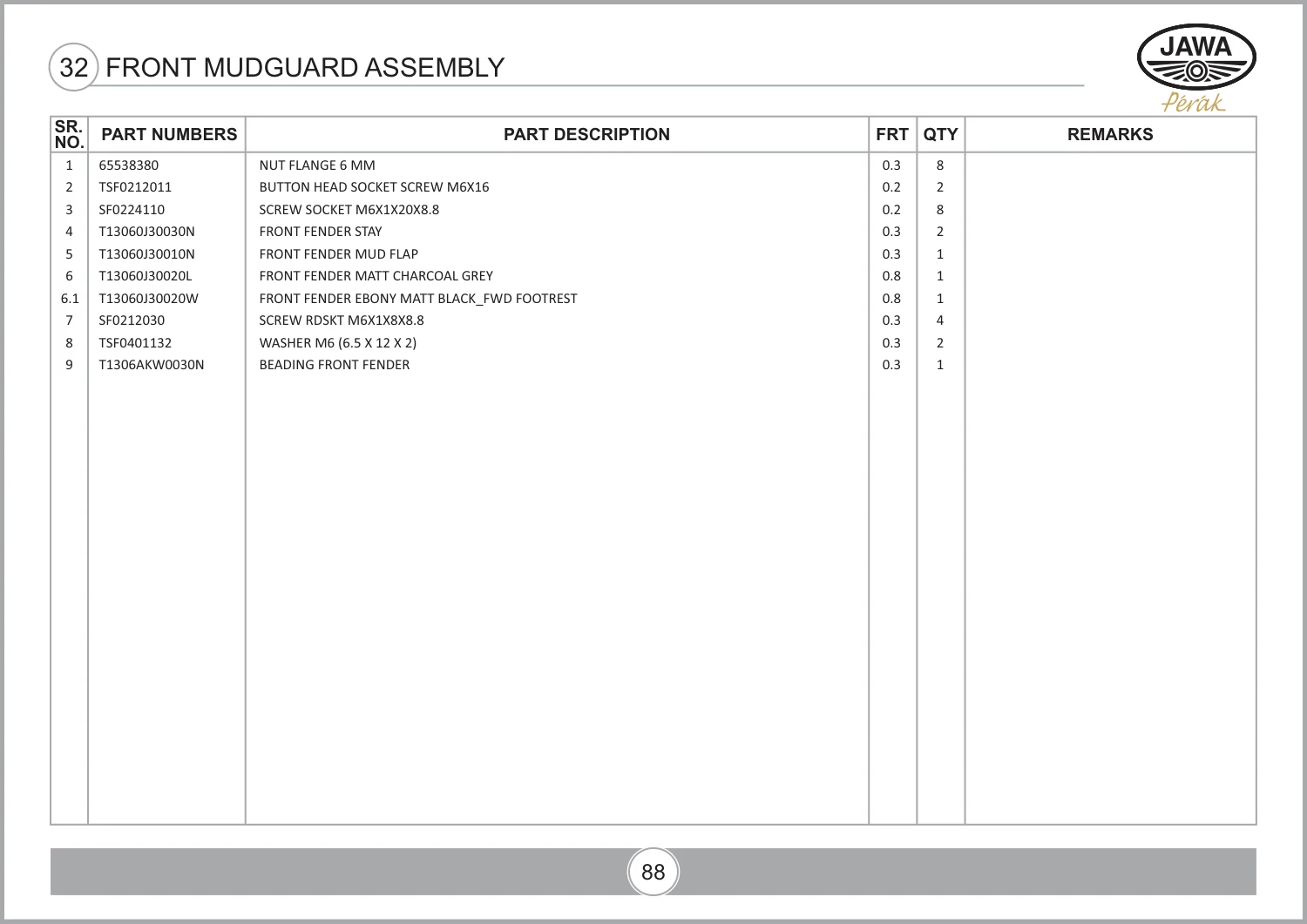

Source: PARTS CATALOGUE - JAWA PERAK_REV-24.pdf · PDF diagram page 99, parts table page 100. View original parts table ↗
