Jawa Perak · ASSEMBLY 40 · REV 24
Front Fork Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa Perak · Rev 24 · p. 111Original parts list ↗
Parts in this drawing
26 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Piston(Piston+Piston Ring)T05010J30030N | 1 | |
| 2 | Front Fork Rebound SpringT05010J30040N | 1 | |
| 3 | Inner Tube AssemblyT05010KW0090N | 1 | |
| 4 | Slide BushT05010KW0110N | 1 | |
| 5 | Spindle TaperT05010KW0120N | 1 | |
| 6 | Outer Tube LHT05010J30070N | 1 | |
| 7 | GasketT05010KW0140N | 1 | |
| 8 | Bolt M10X1T05010KW0150N | 1 | |
| 9 | Guide BushT05010KW0160N | 1 | |
| 10 | Du Bush WasherT05010KW0170N | 1 | |
| 11 | Oil SealT05010KW0180N | 1 | |
| 12 | Circlip(Sanp-Ring)T05010KW0190N | 1 | |
| 13 | Dust SealT05010KW0200N | 1 | |
| 14 | Spring-1T05010J30050N | 1 | |
| 15 | SpacerT05010J30060N | 1 | |
| 16 | Bolt Cap AsslyT05010KW0250N | 1 | |
| 17 | Socket Head Bolt(M8X1.25X35)T05010KW0260N | 1 | |
| 18 | Front Fork AssyT05010J30010N | 1 | |
| 18.1 | Front Fork Assy Fwd FootrestT05010J30090N | 1 | |
| 19 | Fork Leg Assy LHT05030J30010N | 1 | |
| 19.1 | Fork Leg Assy LH Fwd FootrestT05030J30020N | 1 | |
| 20 | Fork Leg Assy RHT05040J30010N | 1 | |
| 20.1 | Fork Leg Assy RH Fwd FootrestT05040J30020N | 1 | |
| 21 | Outer Tube RHT05010J30080N | 1 | |
| 22 | Beading Front Fork PudomT13000KW0170N | 2 | |
| 23 | Side Reflex Reflector Fwd FootrestT1501FB10020N | 2 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

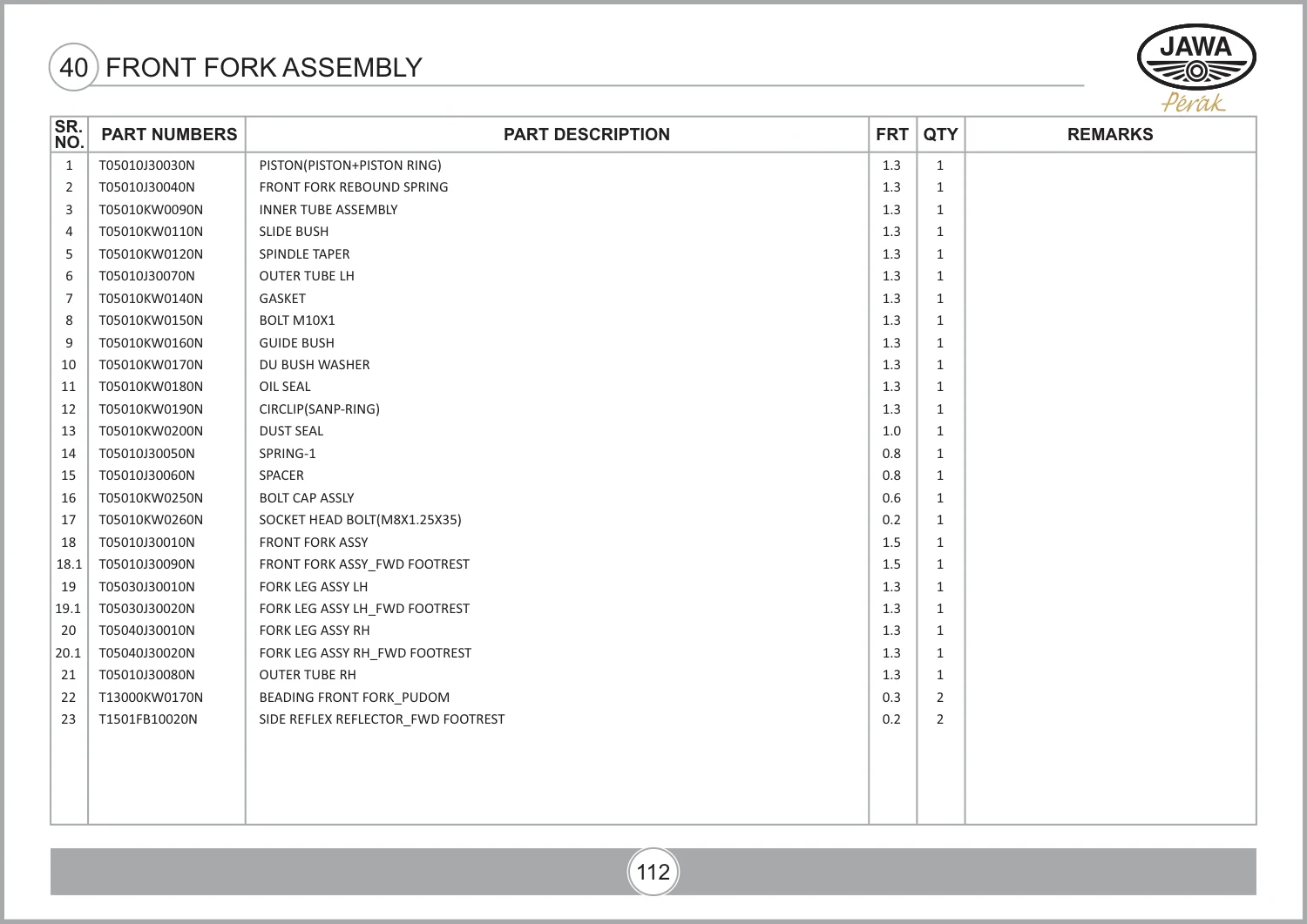

Source: PARTS CATALOGUE - JAWA PERAK_REV-24.pdf · PDF diagram page 123, parts table page 124. View original parts table ↗
