Jawa Perak · ASSEMBLY 46 · REV 24
Handle Bar Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa Perak · Rev 24 · p. 131Original parts list ↗

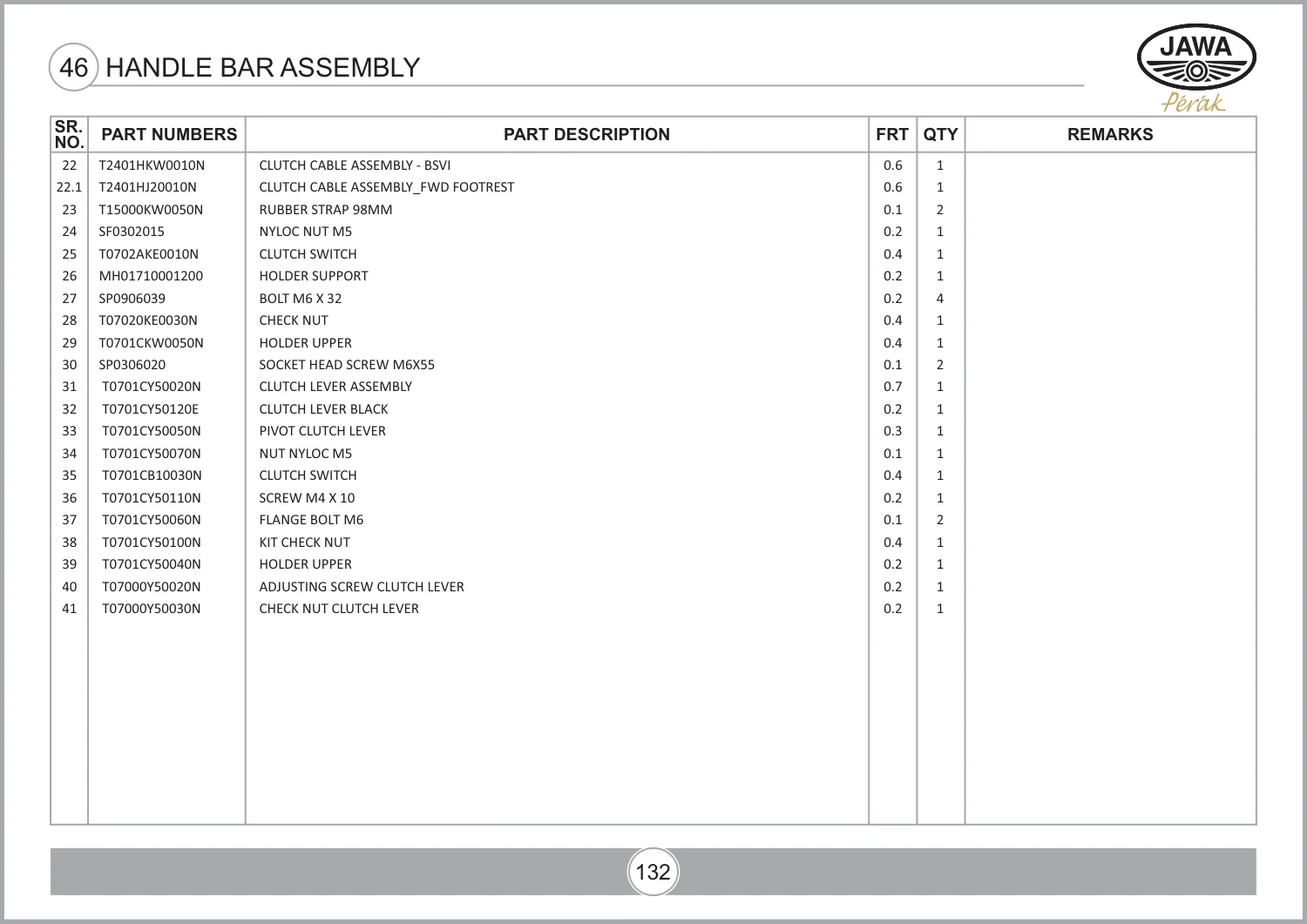

Parts in this drawing
21 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 22 | Clutch Cable Assembly - BSVIT2401HKW0010N | 1 | |
| 22.1 | Clutch Cable Assembly Fwd FootrestT2401HJ20010N | 1 | |
| 23 | Rubber Strap 98MmT15000KW0050N | 2 | |
| 24 | Nyloc Nut M5SF0302015 | 1 | |
| 25 | Clutch SwitchT0702AKE0010N | 1 | |
| 26 | Holder SupportMH01710001200 | 1 | |
| 27 | Bolt M6 X 32SP0906039 | 4 | |
| 28 | Check NutT07020KE0030N | 1 | |
| 29 | Holder UpperT0701CKW0050N | 1 | |
| 30 | Socket Head Screw M6X55SP0306020 | 2 | |
| 31 | Clutch Lever AssemblyT0701CY50020N | 1 | |
| 32 | Clutch Lever BlackT0701CY50120E | 1 | |
| 33 | Pivot Clutch LeverT0701CY50050N | 1 | |
| 34 | Nut Nyloc M5T0701CY50070N | 1 | |
| 35 | Clutch SwitchT0701CB10030N | 1 | |
| 36 | Screw M4 X 10T0701CY50110N | 1 | |
| 37 | Flange Bolt M6T0701CY50060N | 2 | |
| 38 | Kit Check NutT0701CY50100N | 1 | |
| 39 | Holder UpperT0701CY50040N | 1 | |
| 40 | Adjusting Screw Clutch LeverT07000Y50020N | 1 | |
| 41 | Check Nut Clutch LeverT07000Y50030N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.
Source: PARTS CATALOGUE - JAWA PERAK_REV-24.pdf · PDF diagram page 143, parts table page 144. View original parts table ↗
