Jawa & Jawa 42 Platform · ASSEMBLY 1 · REV 36

Camchain And Tensioner & Cylinder Head Cover

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa & Jawa 42 Platform Camchain And Tensioner & Cylinder Head Cover exploded assembly diagram, catalogue page 1

Jawa & Jawa 42 Platform · Rev 36 · p. 1Original parts list ↗

Parts in this drawing

29 entries

Ref.	Part name / number	Assembly qty.	Action
1	Guide Chain Slack SideT0202CUF0340N	1	Enquiry ↗
2	Guide Chain Tight SideT0202AUF0450N	1	Enquiry ↗
3	Guide Chain Pivot BoltT0202CUF0810N	2	Enquiry ↗
4	Guide Chain With Insert BottomT0202CUF0360N	1	Enquiry ↗
5	Bolt, Hex Flange Sh - M6X20SP0906029	1	Enquiry ↗
6	Guide Chain (Top) With InsertT0208AUF0640N	1	Enquiry ↗
7	Pan Head Screw (M4*10)93500-04010-OH	1	Enquiry ↗
8	Timing ChainT0208BUF0390N	1	Enquiry ↗
9	Asm Tensioner And Mtg Bolts KitT0208EVE0020N	1	Enquiry ↗
10	Gasket, TensionerT0208EUF0660N	1	Enquiry ↗
11	Washer, Star Drum Bolt (Ø6.4Ø151)T18010UF0150N	2	Enquiry ↗
12	Bolt, Hex Flange Sh - M6X14TSF0102282	1	Enquiry ↗
13	Shf Flange Bolt 6*22 BSVI90001-M9Q-0000-IK	2	Enquiry ↗
14	Cover, Cylinder HeadT0202DVE0110N	1	Enquiry ↗
14.1	Cover Cylinder Head (Black Colour)T0202DVG0160E	1	Enquiry ↗
15	Gasket/Seal, Cover Cylinder Head 5 LugsT0209AVE0010N	1	Enquiry ↗
15.1	Gasket/Seal, Cover Cylinder Head 7 LugsT0209AVG0010N	1	Enquiry ↗
16	Rubber WasherT18010UF0050N	3	Enquiry ↗
17	Cyl Head Cover Special BoltT02010VG0010N	3	Enquiry ↗
18	Asm Cover Cylinder Head Chrome VariantT0202DVG0630N	1	Enquiry ↗
18.1	Asm Cover Cylinder Head NVH Black VariantT0202DVG0520E	1	Enquiry ↗
18.2	Asm Cover Cylinder Head Black Mat Raven TextureT0202DVG1080N	1	Enquiry ↗
19	Cover Cylinder Head Chrome VariantT0202DVG0640N	1	Enquiry ↗
19.1	Cover Cylinder Head NVH Black VariantT0202DVG0530E	1	Enquiry ↗
19.2	Cover Cylinder Head Black Mat Raven TextureT0202DVG1030N	1	Enquiry ↗
20	Cover Plastic Logo Plate Cylinder Head Chrome VariantT0202DVG0690F	1	Enquiry ↗
20.1	Cover Plastic Logo Plate Cylinder Head NVH Black & Black Mat Raven Texture VariantT0202DVG0690E	1	Enquiry ↗
21	Screw Rdskt M6X1X12X8.8 - Black (NVH)SF0212037	2	Enquiry ↗
22	Collar M6X3L (NVH)T18000KG0130N	2	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

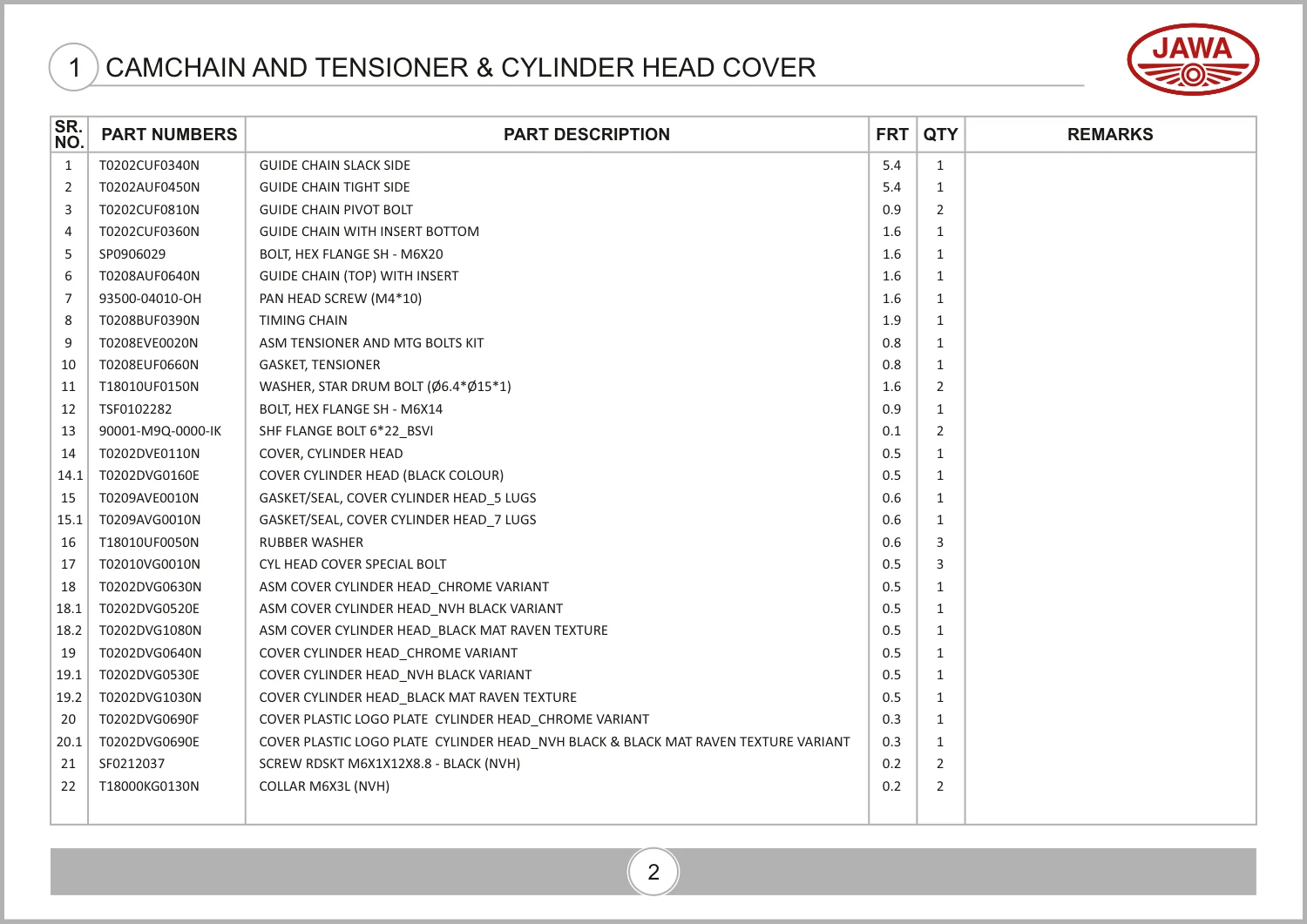

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 16, parts table page 17. View original parts table ↗
