Jawa & Jawa 42 Platform · ASSEMBLY 9 · REV 36
Valve Train And Cam Shaft
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa & Jawa 42 Platform · Rev 36 · p. 25Original parts list ↗

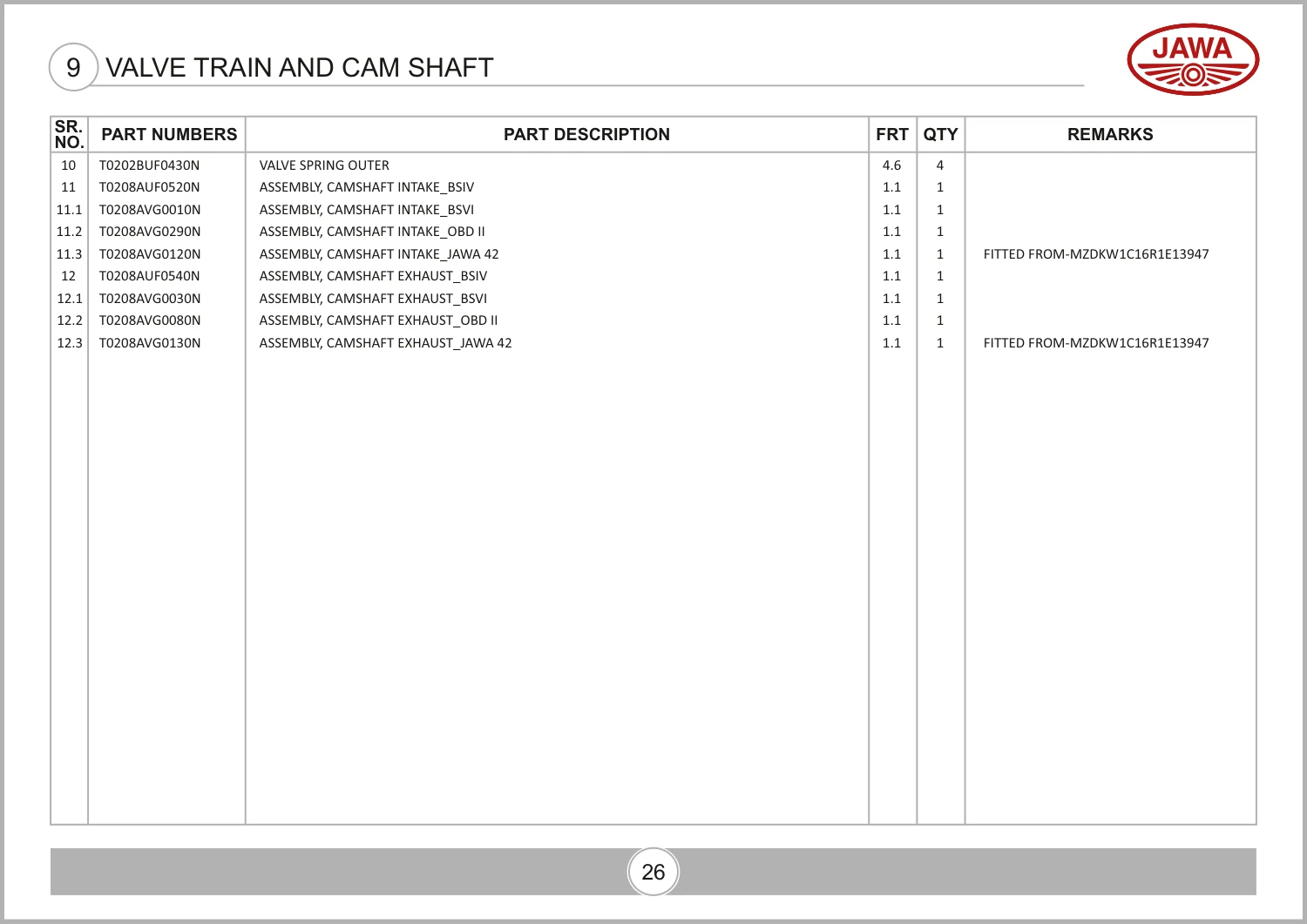

Parts in this drawing
9 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 10 | Valve Spring OuterT0202BUF0430N | 4 | |
| 11 | Assembly, Camshaft Intake BSIVT0208AUF0520N | 1 | |
| 11.1 | Assembly, Camshaft Intake BSVIT0208AVG0010N | 1 | |
| 11.2 | Assembly, Camshaft Intake OBD IIT0208AVG0290N | 1 | |
| 11.3 | Assembly, Camshaft Intake Jawa 42T0208AVG0120N FITTED FROM-MZDKW1C16R1E13947 | 1 | |
| 12 | Assembly, Camshaft Exhaust BSIVT0208AUF0540N | 1 | |
| 12.1 | Assembly, Camshaft Exhaust BSVIT0208AVG0030N | 1 | |
| 12.2 | Assembly, Camshaft Exhaust OBD IIT0208AVG0080N | 1 | |
| 12.3 | Assembly, Camshaft Exhaust Jawa 42T0208AVG0130N FITTED FROM-MZDKW1C16R1E13947 | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.
Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 40, parts table page 41. View original parts table ↗
