Transmission System

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa & Jawa 42 Platform · Rev 36 · p. 31Original parts list ↗

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Washer 20.2300.5T0215DVG0470N	1	Enquiry ↗
2	Shaft, Input T/MT0215DUF0110N	1	Enquiry ↗
3	Gear, 5Th DriveT0215DUF0120N	1	Enquiry ↗
4	Spline Washer 20.3X26X1.6T18010UF0060N	2	Enquiry ↗
5	CirclipT0215AUF0130N	2	Enquiry ↗
6	Gear, 3Rd & 4Th Drive (Integral)T0215DUF0170N	1	Enquiry ↗
7	Spline Bush - 6Th DriveT0215AUF0140N	1	Enquiry ↗
8	Gear, 6Th DriveT0215DUF0150N	1	Enquiry ↗
9	Gear, 2Nd DriveT0215DUF0160N	1	Enquiry ↗
10	Washer 15.2X25X1T18010UF0070N	1	Enquiry ↗
11	Sprocket, DriveT0215DUF0080N	1	Enquiry ↗
12	Lock Plate Drive SprocketT0215DUF0090N	1	Enquiry ↗
13	Flange Bolt M6*10TSF0102281	4	Enquiry ↗
14	Bearing Ball InputT18050UF0130N	1	Enquiry ↗
15	Oil Seal, Output ShaftT18020UF0080N	1	Enquiry ↗
16	Internal Circlip (Ø35*1.75)TSF0602039	1	Enquiry ↗
17	Bearing Input ShaftT18050UF0280N	1	Enquiry ↗
17.1	Bearing Input Shaft (Vave)T0215DVG0560N	1	Enquiry ↗
18	Lock Plate Input BearingT0202CUF0510N	1	Enquiry ↗
19	Breather Hole Cover PlateT0202CUF2430N	1	Enquiry ↗
20	Shaft, Output T/MT0215DUF0190N	1	Enquiry ↗
21	Bush, 2Nd GearT0215AUF0200N	3	Enquiry ↗
22	Gear, 2Nd DrivenT0215DUF0210N	1	Enquiry ↗
23	Gear, 6Th DrivenT0215DUF0220N	1	Enquiry ↗
24	Gear, 4Th DrivenT0215DUF0230N	1	Enquiry ↗
25	Gear 3Rd, DrivenT0215DUF0240N	1	Enquiry ↗
26	Washer 22.2280.5T18010UF0090N	1	Enquiry ↗
27	CirclipT0215AUF0150N	1	Enquiry ↗
28	Gear, 5Th DrivenT0215DUF0250N	1	Enquiry ↗
29	Bush, 1St GearT0215AUF0260N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

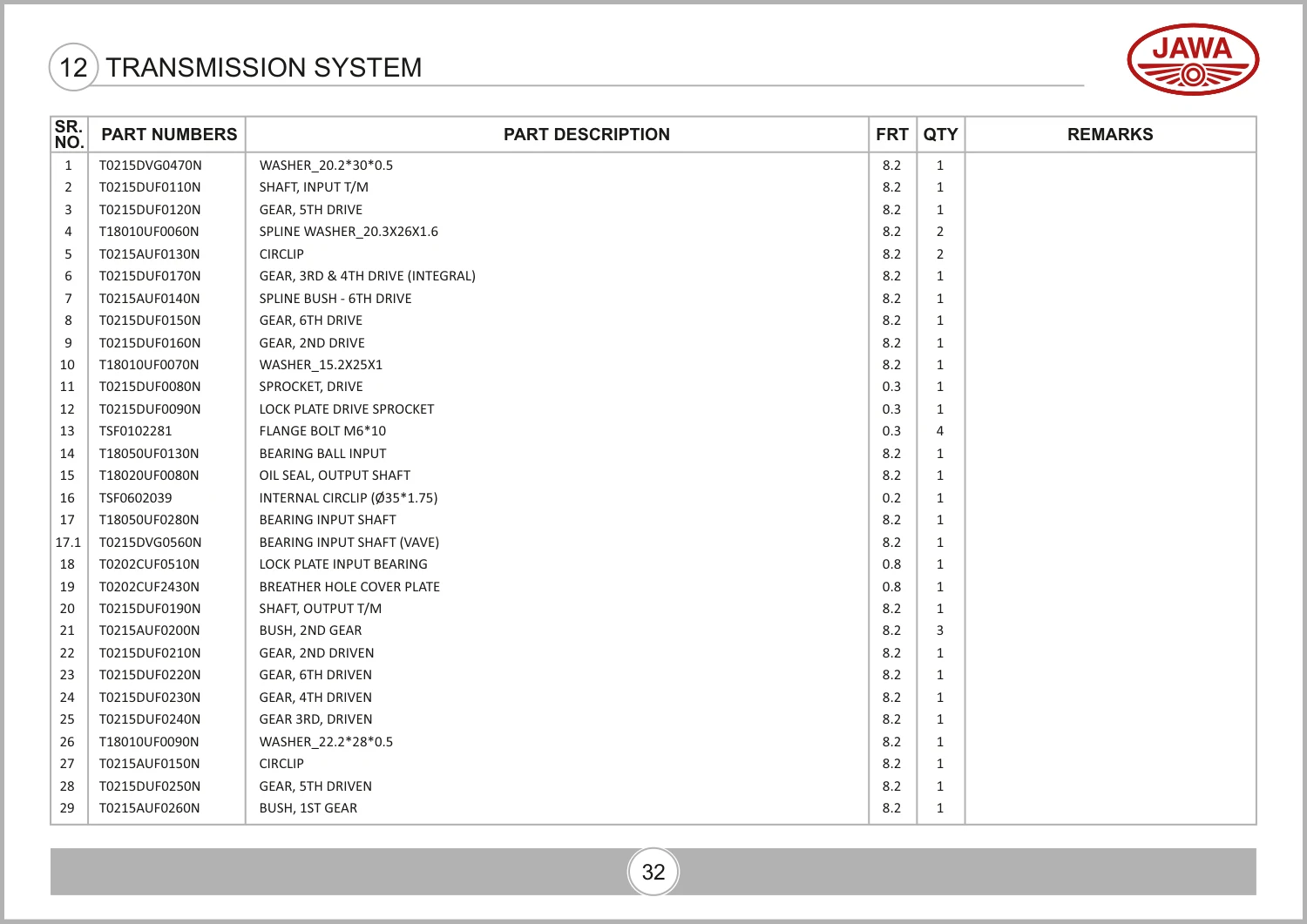

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 46, parts table page 47. View original parts table ↗
