Jawa & Jawa 42 Platform · ASSEMBLY 13 · REV 36
Transmission System - OBD II
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa & Jawa 42 Platform · Rev 36 · p. 37Original parts list ↗
Parts in this drawing
13 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 30 | Gear, 1St Driven (NVH Final)T0215DVG0150N | 1 | |
| 31 | *Washer Ø17.2*Ø26*1T18010UF0100N | 1 | |
| 31 | Washer 17.2 X 26 X Thk. (1.000 To 1.050)T0215AUF0990N | 1 | |
| 31 | Washer 17.2 X 26 X Thk. (1.051 To 1.100)T0215AUF1000N | 1 | |
| 31 | Washer 17.2 X 26 X Thk. (1.101 To 1.150)T0215AUF1010N | 1 | |
| 31 | Washer 17.2 X 26 X Thk. (1.151 To 1.200)T0215AUF1020N | 1 | |
| 31 | Washer 17.2 X 26 X Thk. (1.201 To 1.250)T0215AUF1030N | 1 | |
| 31 | Washer 17.2 X 26 X Thk. (1.251 To 1.300)T0215AUF1040N | 1 | |
| 32 | Bearing Output ShaftT18050UF0170N | 1 | |
| 32.1 | Bearing Output Shaft (Vave)T0215DVG0550N | 1 | |
| 33 | Assembly, Input Shaft (NVH Final)T0215AVG0030N | 1 | |
| 34 | Assembly, Output Shaft (NVH Final)T02150VG0190N | 1 | |
| 35 | Bearing Output ShaftT18050UF0140N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

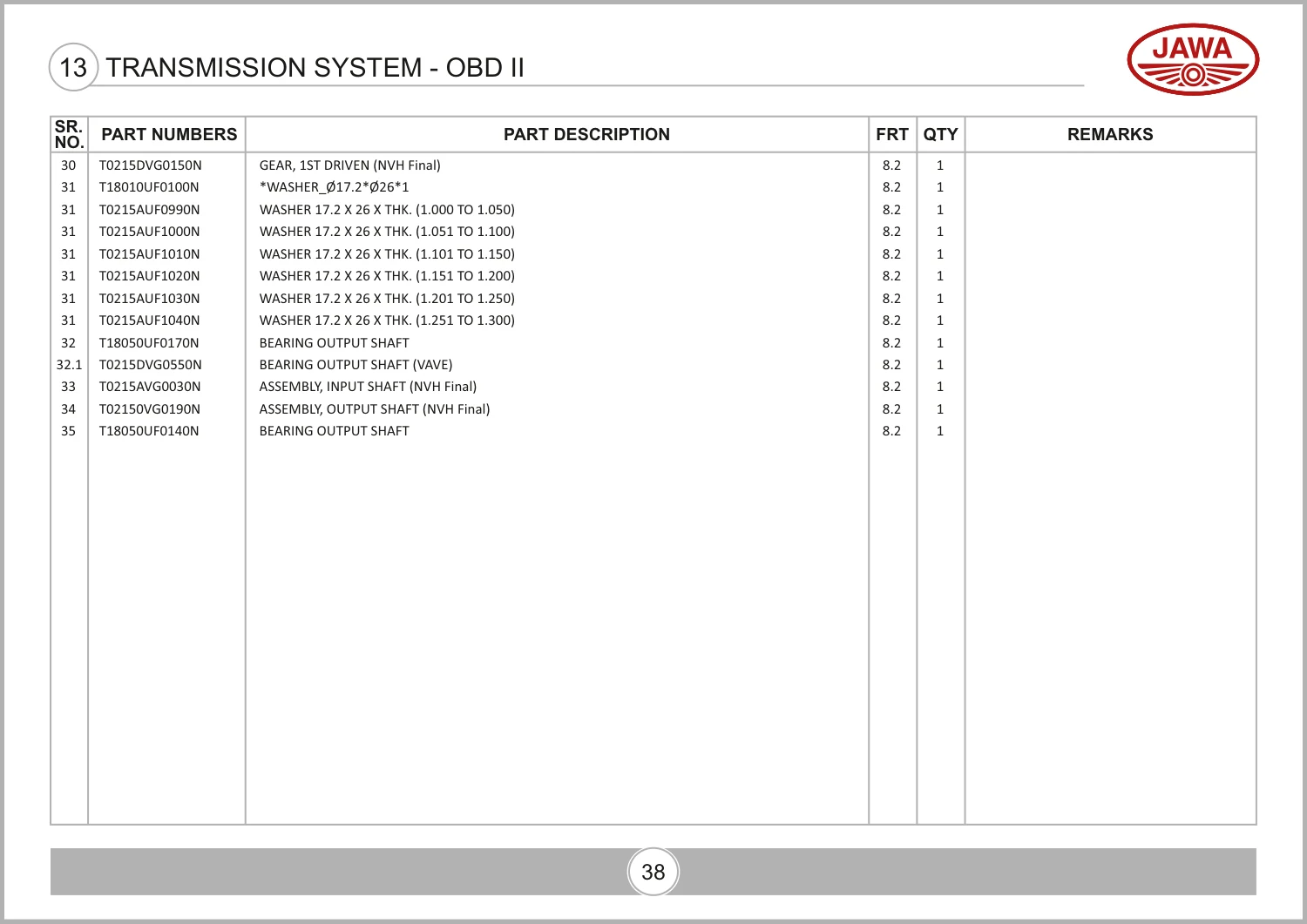

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 52, parts table page 53. View original parts table ↗
