Jawa & Jawa 42 Platform · ASSEMBLY 16 · REV 36

Crankshaft And Piston

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa & Jawa 42 Platform Crankshaft And Piston exploded assembly diagram, catalogue page 47

Jawa & Jawa 42 Platform · Rev 36 · p. 47Original parts list ↗

Parts in this drawing

29 entries

Ref.	Part name / number	Assembly qty.	Action
1	PistonT0210BUF0300N	1	Enquiry ↗
1.1	Piston C300 OBD IIT0210BVE0020N	1	Enquiry ↗
1.2	Piston C300 Group A Jawa 42 J1BT0210BVE0070E	1	Enquiry ↗
1.3	Piston C300 Group B Jawa 42 J1BT0210BVE0080E	1	Enquiry ↗
2	Ring Piston TopT0210BUF0340N	1	Enquiry ↗
3	Ring Piston SecondT0210BUF0350N	1	Enquiry ↗
4	Ring Piston OilT0210BUF0370N	1	Enquiry ↗
5	Pin PistonT0210BUF0310N	1	Enquiry ↗
6	Ring SnapT0210BUF0380N	2	Enquiry ↗
7	Kit Crankshaft Balancer Shaft Assembly BSIV & BSVIT0210AVG0200N	1	Enquiry ↗
7.1	Assembly, Crankshaft OBD-IIT0210AVG0010N	1	Enquiry ↗
8	Block Piston Kit Spd Chrome BSIV/BSVIT0202AVE0070N	1	Enquiry ↗
8.1	Block Piston Kit (Blk Colour) SpdT0202AVE0170E	1	Enquiry ↗
8.2	Kit Block Piston Black Mat Raven Texture (C300)T0202AVE0220E	1	Enquiry ↗
8.3	Kit Block Piston Black Mat Raven Texture Group-A Jawa 42T0202AVE0310E	1	Enquiry ↗
9	Key Primary Drive (5512)T18080UF0020N	1	Enquiry ↗
10	Gear, Primary Drive (26T) (Gpd)T0215EVG0100N	1	Enquiry ↗
11	Washer, Gear Primary Drive (<O>18.2<O>293)T18010UF0020N	1	Enquiry ↗
12	Lock Nut, Gear Primary Drive (M18*1.25)T0210AUF0320N	1	Enquiry ↗
13	Key Woodruff (4*13)T1502AUF0170N	1	Enquiry ↗
14	Kit Cylinder Block With Coolant Pipe Chrome VariantT0202AVE0180N	1	Enquiry ↗
14.1	Kit Cylinder Block With Coolant Pipe NVH Black VariantT0202AVE0190E	1	Enquiry ↗
14.2	Kit Cylinder Block With Coolant Pipe Black Mat Raven TextureT0202AVE0210E	1	Enquiry ↗
14.3	Kit Cylinder Block With Coolant Pipe Black Mat Group-A Jawa 42T0202AVE0290E	1	Enquiry ↗
14.4	Kit Cylinder Block With Coolant Pipe Black Mat Group-B Jawa 42T0202AVE0300E	1	Enquiry ↗
15	Gasket, Cylinder BlockT0209DUF0180N	1	Enquiry ↗
16	Assembly, PistonT0210BUF0330N	1	Enquiry ↗
16.1	Assembly, Piston C300 OBD IIT0210BVE0010N	1	Enquiry ↗
16.2	Assembly Piston C300 Group A Jawa 42 J1BT0210BVE0050E	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

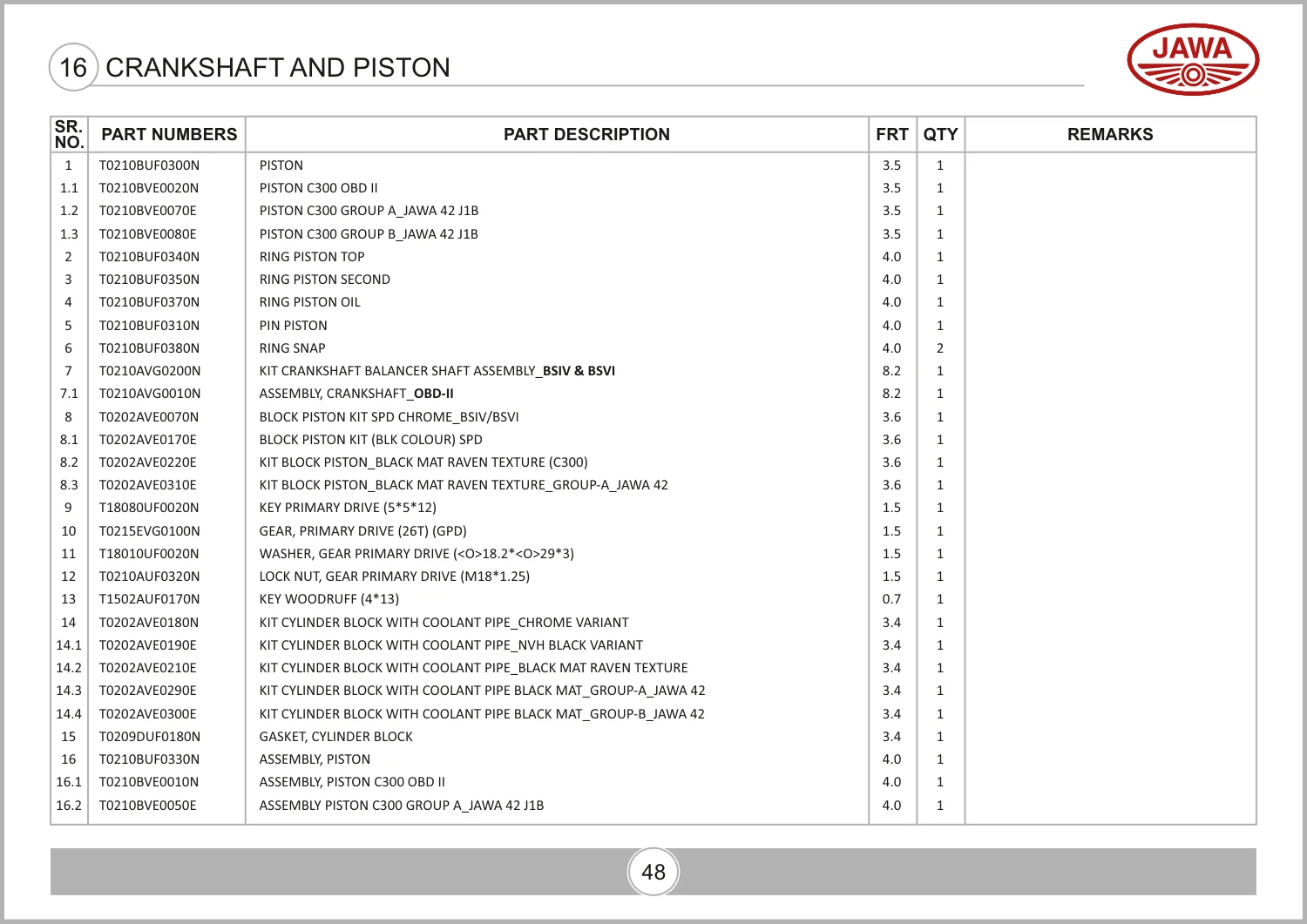

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 62, parts table page 63. View original parts table ↗
