Jawa & Jawa 42 Platform · ASSEMBLY 29 · REV 36

Fuel Tank Assembly

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa & Jawa 42 Platform Fuel Tank Assembly exploded assembly diagram, catalogue page 87

Jawa & Jawa 42 Platform · Rev 36 · p. 87Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
22.1	Fuel Tank Cap With Key – Jawa J1BT10020KW0050N	1	Enquiry ↗
22.2	Fuel Tank Cap With Key (E20) OBD-II Phase-2 (E20) Jawa 42 (Ug 2.2/Dual Disc/Og)T10000J10550N	1	Enquiry ↗
23	Fuel Tank Assy Maroon Ral3005T10010KW0010A	1	Enquiry ↗
23.1	Fuel Tank Assy Black 6CT10010KW0010E	1	Enquiry ↗
23.2	Fuel Tank Assy Grey Ral7035T10010KW0010L	1	Enquiry ↗
23.3	Fuel Tank Assy Galactic GreenT10010KW0270G	1	Enquiry ↗
23.4	Fuel Tank Assy Halleys TealT10010KW0270U	1	Enquiry ↗
23.5	Fuel Tank Assy Lumos LimeT10010KW0270D	1	Enquiry ↗
23.6	Fuel Tank Assy Starlight BlueT10010KW0270C	1	Enquiry ↗
23.7	Fuel Tank Assy Comet RedT10010KW0270A	1	Enquiry ↗
23.8	Fuel Tank Assy Nebula BlueT10010KW0270V	1	Enquiry ↗
23.9	Fuel Tank Assy Solid Bc Red Jm94T10010KW0010F	1	Enquiry ↗
23.10	Fuel Tank Assy KhakiT10010KW0010T	1	Enquiry ↗
23.11	Fuel Tank Assy Matt RedT10010KW0270X	1	Enquiry ↗
23.12	Fuel Tank Assy Matt WhiteT10010KW0270B	1	Enquiry ↗
23.13	Fuel Tank Assy Gloss BlackT10010KW0270Y	1	Enquiry ↗
23.14	Fuel Tank Assy Galaxy GreyT10010KW0010R	1	Enquiry ↗
23.15	Fuel Tank Assy Rocky BeigeT10010KW0270M	1	Enquiry ↗
23.16	Fuel Tank Assy Gloss White Jawa 42 Dual DiscT10000KW0270V	1	Enquiry ↗
23.17	Fuel Tank Assy Gloss Black Jawa 42 Dual DiscT10010J10040X	1	Enquiry ↗
23.18	Fuel Tank Assy Gloss Grey Jawa 42 Dual DiscT10000KW0270W	1	Enquiry ↗
23.19	Fuel Tank Assy Gloss Red Jawa 42 Dual DiscT10000KW0270P	1	Enquiry ↗
23.20	Fuel Tank Assy Nebula Blue Jawa 42 OgT10000KW0400C	1	Enquiry ↗
23.21	Fuel Tank Assy Red Matte Jawa 42 OgT10000KW0400A	1	Enquiry ↗
23.22	Fuel Tank Assy Rockey Beige Jawa 42 OgT10000KW0400T	1	Enquiry ↗
23.23	Fuel Tank Assy Copper Matte Jawa 42 OgT10000KW0400K	1	Enquiry ↗
23.24	Fuel Tank Assy Allstar Black Jawa 42 OgT10000KW0400E	1	Enquiry ↗
23.25	Fuel Tank Assy Nebula Blue Matte Jawa 42 Og UgT10000KW0400V	1	Enquiry ↗
23.26	Fuel Tank Assy Red Matte Jawa 42 Og UgT10000KW0440A	1	Enquiry ↗
23.27	Fuel Tank Assy Ivory Jawa 42 Og UgT10000KW0400Y	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

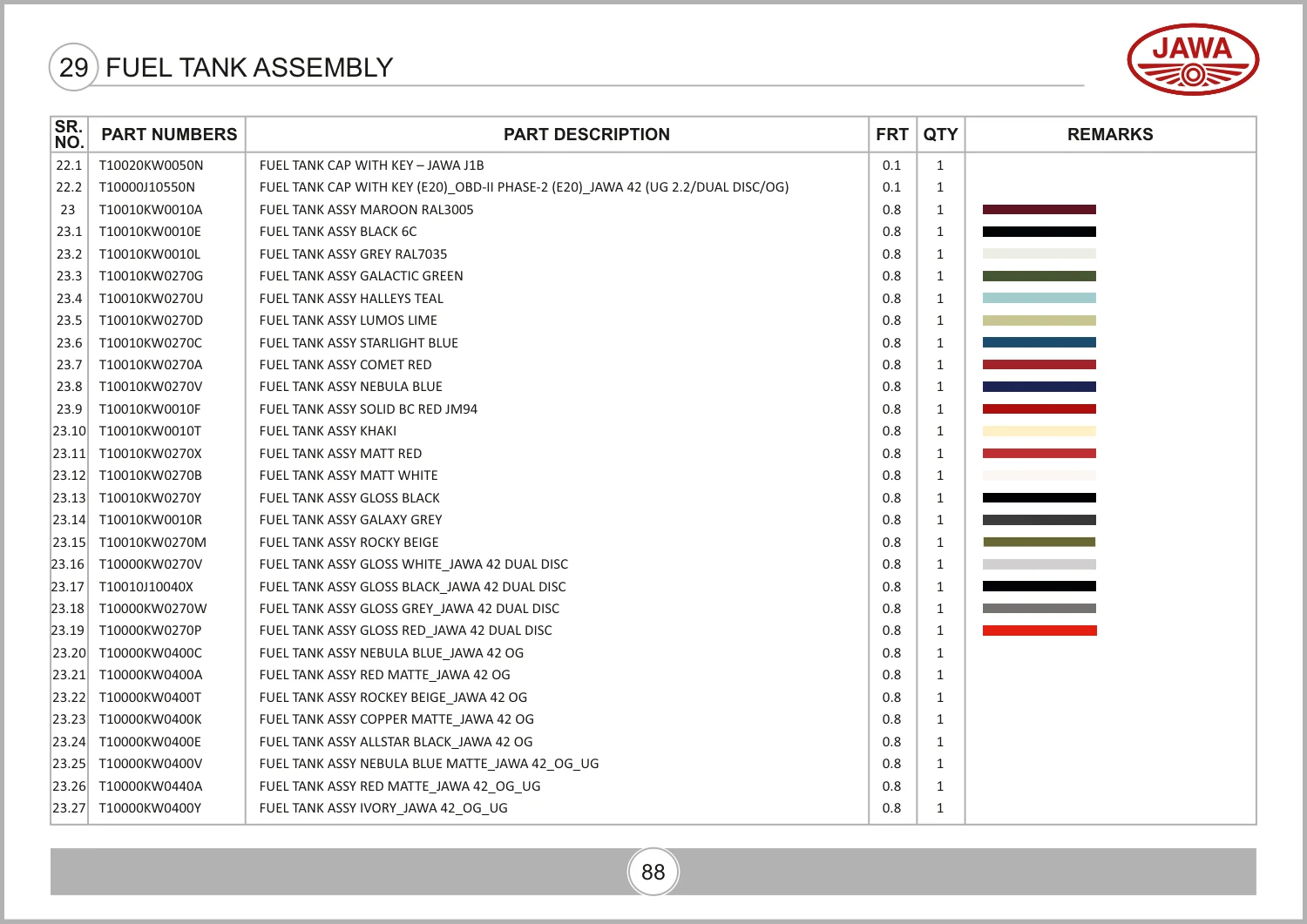

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 102, parts table page 103. View original parts table ↗
