Jawa & Jawa 42 Platform · ASSEMBLY 34 · REV 36

Rear Fender Assembly

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa & Jawa 42 Platform Rear Fender Assembly exploded assembly diagram, catalogue page 109

Jawa & Jawa 42 Platform · Rev 36 · p. 109Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
10.14	Sub-Assy Tail Lamp Gloss BlackT13010KW0200Y	1	Enquiry ↗
11	M6 Nyloc Nut (Black)TSF0318007	2	Enquiry ↗
12	Turn Signal Indicator Rear LHT1501GKW0030N	1	Enquiry ↗
12.1	Turn Signal Indicator Rear LH J301T1501GKW0030E	1	Enquiry ↗
12.2	Turn Signal Indicator Rear LH Jawa 42 Ug 2.2T1501GKW0110N	1	Enquiry ↗
13	Turn Signal Indicator Rear RHT1501GKW0040N	1	Enquiry ↗
13.1	Turn Signal Indicator Rear RH J301T1501GKW0040E	1	Enquiry ↗
13.2	Turn Signal Indicator Rear RH Jawa 42 Ug 2.2T1501GKW0120N	1	Enquiry ↗
14	Spring Washer B10 Is:306393910007	2	Enquiry ↗
15	Nut Hex M10X1.25X5X8XznSF0301023	2	Enquiry ↗
16	Reflex Reflector Mtg Bkt Black GlossyT08020KW0030W	1	Enquiry ↗
17	Bolt Fl.6X1295701-06012-00	8	Enquiry ↗
18	Rear Reflex ReflectorT1501FKW0060N	1	Enquiry ↗
19	Washer Plain M5X14X1SF0401069	2	Enquiry ↗
20	Rear Mudguard CouplerT15000KW0040N	1	Enquiry ↗
21	RR Number Plate Mtg Bkt Matt BlackT13070KW0050W	1	Enquiry ↗
22	Rear Number PlateT14000AB0430B	1	Enquiry ↗
23	Number Plate LampT1501TKW0010N	1	Enquiry ↗
23.1	Number Plate Lamp Jawa 42 Ug 2.2T1501TKW0040N	1	Enquiry ↗
24	Spacer H=4 For M6MH01790003300	2	Enquiry ↗
25	Screw Rdskt M6X1X12Xa2-70SF0212018	4	Enquiry ↗
26	Screw Rdskt M6X1X12Xa2-70SF0212023	4	Enquiry ↗
26.1	Screw Rdskt M6X1X12X8.8 Jawa 42 Ug 2.2SF0212037	4	Enquiry ↗
27	Nutflange6Mm(White)65538380	2	Enquiry ↗
28	M6 Nyloc Nut (Black)TSF0318007	2	Enquiry ↗
29	Cover Rear Number Plate BracketT13030KW0010N	1	Enquiry ↗
29.1	Cover Rear Number Plate Bracket Jawa 42 Ug 2.2T13070KW0270N	1	Enquiry ↗
30	Frame Cover LHT13070KW0210N	1	Enquiry ↗
31	Frame Cover RHT13070KW0220N	1	Enquiry ↗
32	Rear Mudguard - Side Cover LH BlackT13070J20040H	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

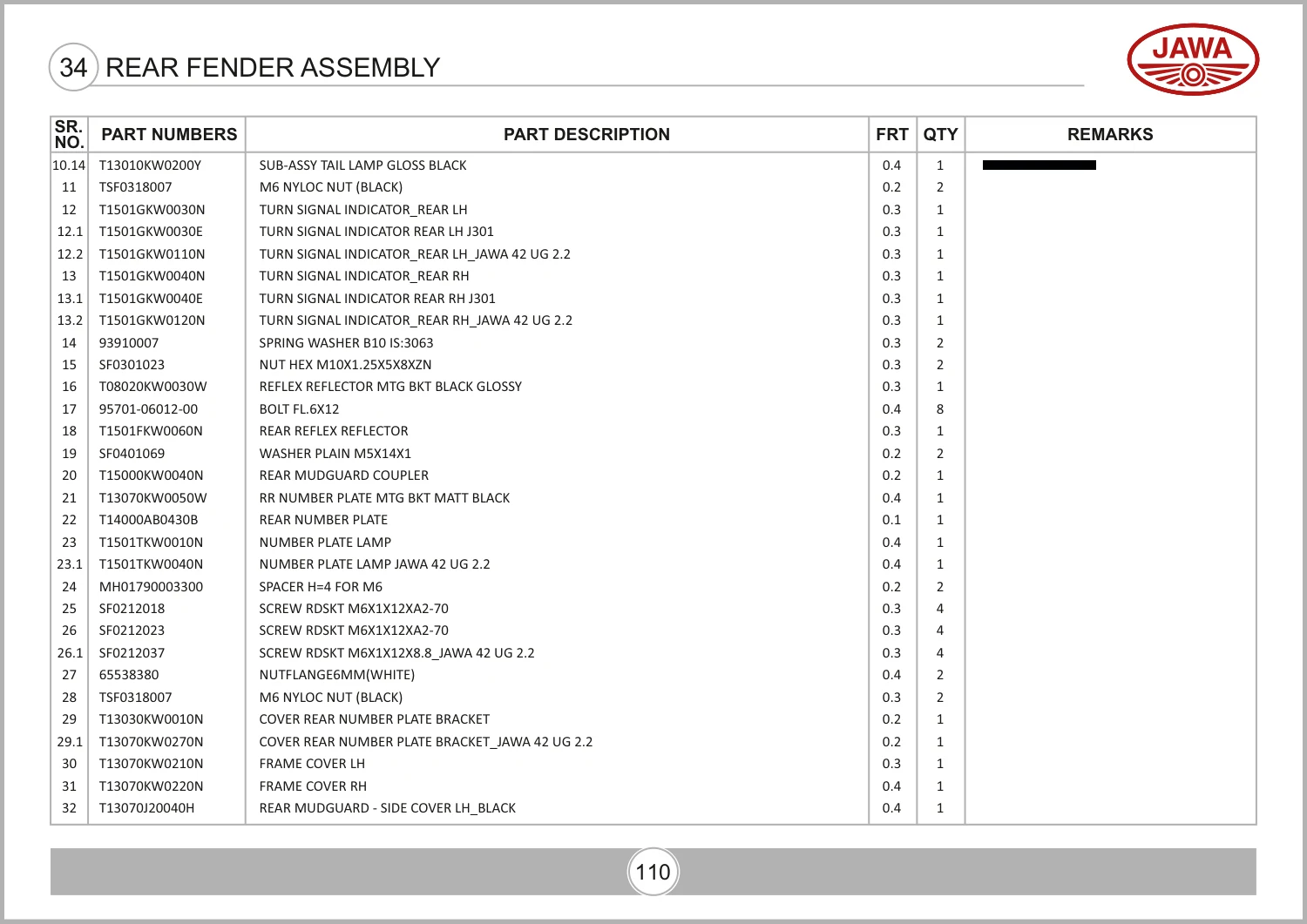

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 124, parts table page 125. View original parts table ↗
