Jawa & Jawa 42 Platform · ASSEMBLY 39 · REV 36
Silencer Assembly - BSIV
Select a diagram reference or a row below to enquire about the exact part.

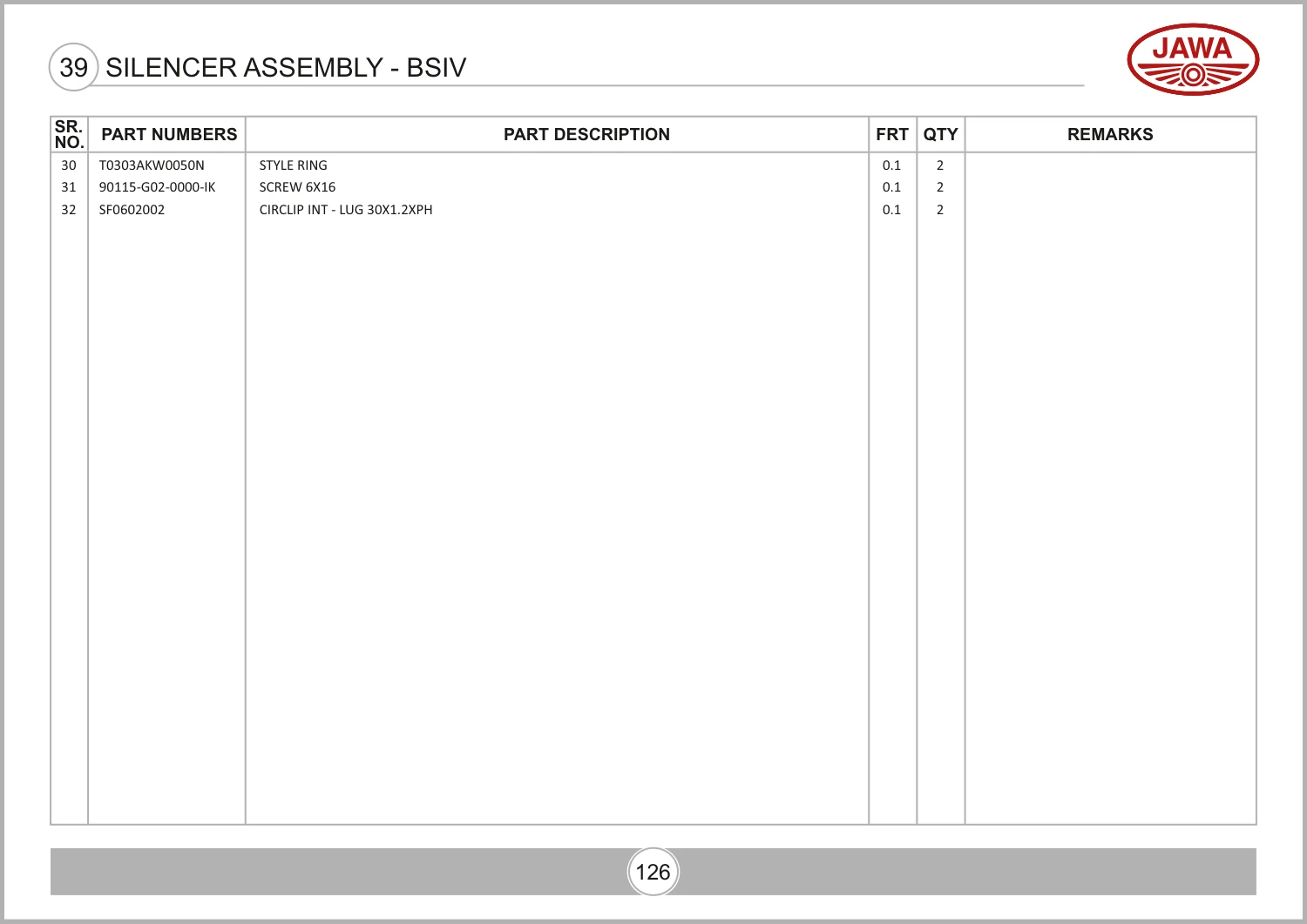

CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa & Jawa 42 Platform · Rev 36 · p. 125Original parts list ↗
Parts in this drawing
3 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 30 | Style RingT0303AKW0050N | 2 | |
| 31 | Screw 6X1690115-G02-0000-IK | 2 | |
| 32 | Circlip Int - Lug 30X1.2XphSF0602002 | 2 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.
Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 140, parts table page 141. View original parts table ↗
