Jawa & Jawa 42 Platform · ASSEMBLY 41 · REV 36

Silencer Assembly - BSVI Tandem Cat

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa & Jawa 42 Platform Silencer Assembly - BSVI Tandem Cat exploded assembly diagram, catalogue page 131

Jawa & Jawa 42 Platform · Rev 36 · p. 131Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Body Muffler Assy Ffm (Short Db) RH ChromeT03040KW0340N	1	Enquiry ↗
1.1	Muffler Assy Ffm RH (Black) Jawa 42 Ug 2.2T03040KW0340E	1	Enquiry ↗
2	Body Muffler Assy Ffm (Short Db) LH ChromeT03040KW0360N	1	Enquiry ↗
2.1	Muffler Assy Ffm LH (Black) Jawa 42 Ug 2.2T03040KW0360E	1	Enquiry ↗
3	Header Pipe Assembly RHT0302CKW0030N	1	Enquiry ↗
4	Header Pipe Assembly LHT0302CKW0020N	1	Enquiry ↗
5	Style Shield LH ChromeT0302CKW0260N	1	Enquiry ↗
5.1	Style Shield LH BlackT0302CKW0260E	1	Enquiry ↗
5.2	Trim Shield LH ChromeT0303AKW0210N	1	Enquiry ↗
5.3	Trim Shield LH BlackT0303AKW0210E	1	Enquiry ↗
5.4	Trim Shield LH (Black) Jawa 42 Ug 2.2T0303AKW0210T	1	Enquiry ↗
6	Style Shield RH ChromeT0302CKW0270N	1	Enquiry ↗
6.1	Style Shield RH BlackT0302CKW0270E	1	Enquiry ↗
6.2	Trim Shield RH ChromeT0303AKW0200N	1	Enquiry ↗
6.3	Trim Shield RH BlackT0303AKW0200E	1	Enquiry ↗
6.4	Trim Shield RH (Black) Jawa 42 Ug 2.2T0303AKW0200T	1	Enquiry ↗
7	Exhaust Flange Top ChromeT0304CKW0060N	2	Enquiry ↗
7.1	Exhaust Flange Top BlackT0304CKW0060E	2	Enquiry ↗
7.2	Exhaust Flange Top Jawa 42 Ug 2.2T0304CKW0060T	2	Enquiry ↗
8	Exhaust Flange Bottom ChromeT0304CKW0070N	2	Enquiry ↗
8.1	Exhaust Flange Bottom BlackT0304CKW0070E	2	Enquiry ↗
8.2	Exhaust Flange Bottom Jawa 42 Ug 2.2T0304CKW0070T	2	Enquiry ↗
9	Nut Special M8X1.25X17X6SF0300075	4	Enquiry ↗
10	Graphite GasketT0304BKW0020N	2	Enquiry ↗
11	Exhaust ClampT0302CJ30040N	2	Enquiry ↗
12	Main Stand Stopper RubberT0901HAE1900N	1	Enquiry ↗
13	Nut Hex Fl M10X1.25X10X10SP2901001	2	Enquiry ↗
14	Bolt Hex Fl M10X1.25X22.5X10.9SF0102251	2	Enquiry ↗
15	Exhaust GasketT0304BKW0010N	2	Enquiry ↗
16	Screw Rdskt M5X0.8X8SF0212043	7	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

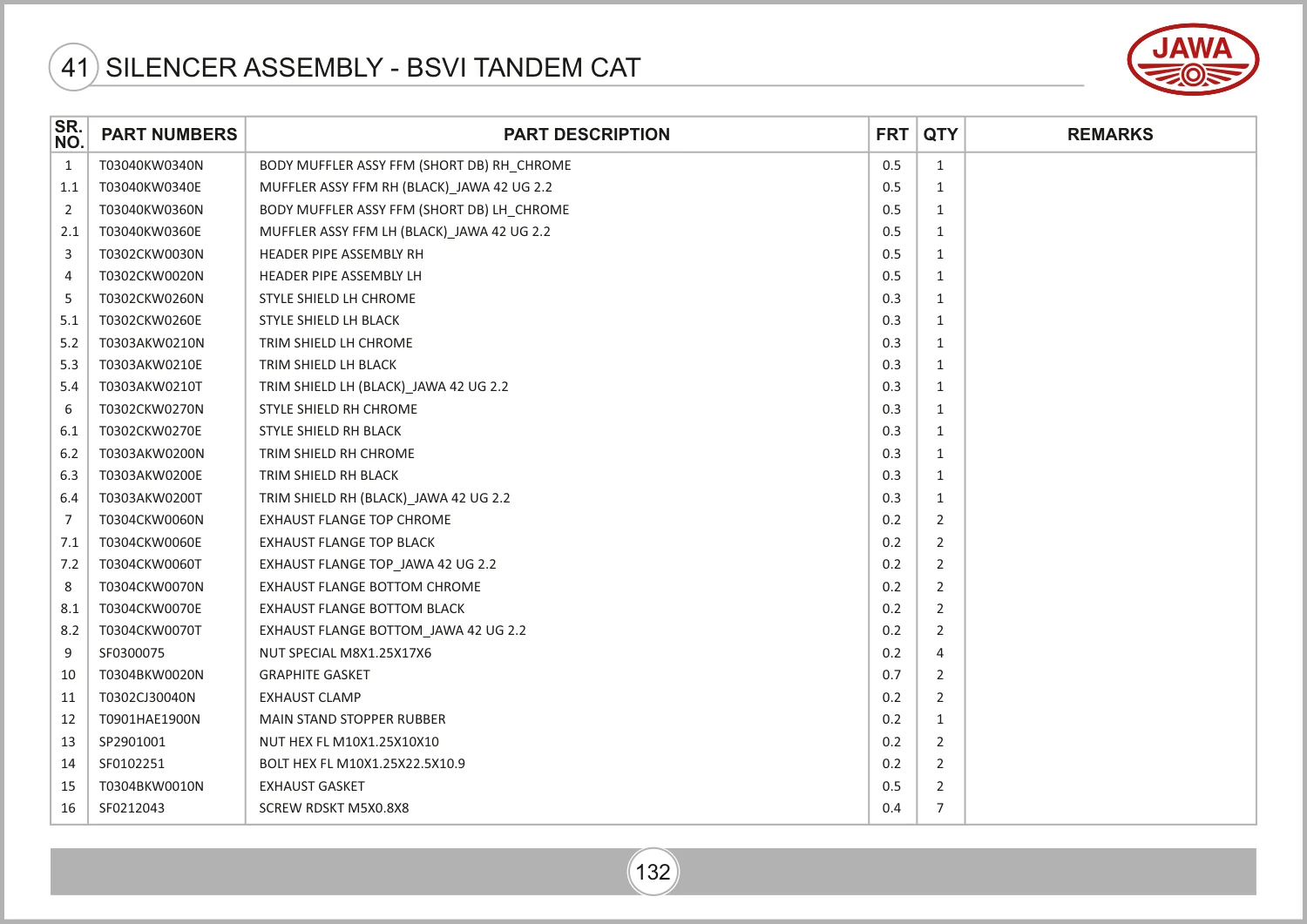

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 146, parts table page 147. View original parts table ↗
