Jawa & Jawa 42 Platform · ASSEMBLY 42 · REV 36

Silencer Assembly - Jawa 42 Ladder

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa & Jawa 42 Platform · Rev 36 · p. 135Original parts list ↗

25 entries

Ref.	Part name / number	Assembly qty.	Action
1	Muffler Assy Ffm RH (Black)T03040KW0340E	1	Enquiry ↗
2	Muffler Assy Ffm LH (Black)T03040KW0360E	1	Enquiry ↗
3	Header Pipe RH AssyT0302CKW0030N	1	Enquiry ↗
3A	Header Pipe RH Assy OBD-II Phase-2 (E20)T0302AJ10470N	1	Enquiry ↗
4	Header Pipe LH AssyT0302CKW0020N	1	Enquiry ↗
4A	Header Pipe LH Assy OBD-II Phase-2 (E20)T0302AJ10460N	1	Enquiry ↗
5	Trim Shield LH (T)T0303AKW0210T	1	Enquiry ↗
6	Trim Shield RH (T)T0303AKW0200T	1	Enquiry ↗
7	Exhaust Flange Top (T)T0304CKW0060T	2	Enquiry ↗
8	Exhaust Flange Bottom (T)T0304CKW0070T	2	Enquiry ↗
9	Nut Special M8X1.25X17X8SF0300075	4	Enquiry ↗
10	Graphite GasketT0304BKW0020N	2	Enquiry ↗
11	Exhaust Clamp M36T0302CJ30040N	2	Enquiry ↗
12	Nut Hfl Ser M10X1.25X10X8SF0322008	2	Enquiry ↗
13	Screw Hex Fl Ml0X1.25X30X10.9SF0202341	2	Enquiry ↗
14	Exhaust GasketT0304BKW0010N	2	Enquiry ↗
15	Washer Plain M5X10X1SF0401445	7	Enquiry ↗
16	Screw Rdskt M5X0.8X8X8.8SF0212035	7	Enquiry ↗
17	Washer Plain M8X16X1.5SF0401127	4	Enquiry ↗
18	Socket Head Screw M8X18 (Black)SP0224002	4	Enquiry ↗
19	Style Ring (Black)T0303AKW0050T	2	Enquiry ↗
20	Lambda Sensor Down Stream OBD-II Phase-2 (E20)T15000J10010N	2	Enquiry ↗
21	Cover Lambda Sensor OBD-II Phase-2 (E20)T0302AJ10170E	2	Enquiry ↗
22	Screw Rdskt M6X1X12Xa2-70 OBD-II Phase-2 (E20)SF0212037	2	Enquiry ↗
23	Plug Tpr Sk Mc12X1.25 Stsl OBD-II Phase-2 (E20)SF1104035	2	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

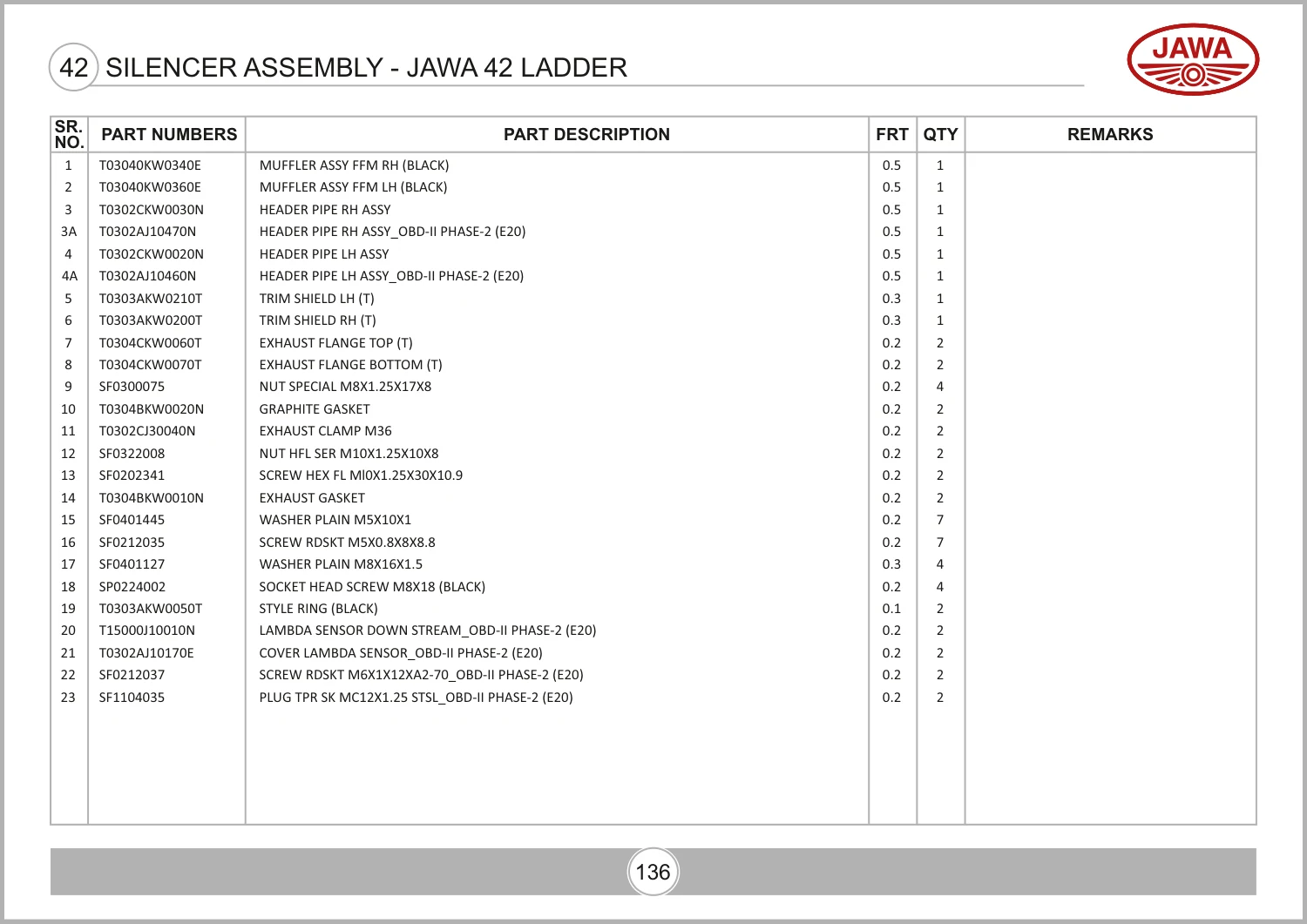

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 150, parts table page 151. View original parts table ↗
