Jawa & Jawa 42 Platform · ASSEMBLY 48 · REV 36

Side Panel LH & RH Assy / ECU & Relay / Fusebox

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa & Jawa 42 Platform Side Panel LH & RH Assy / ECU & Relay / Fusebox exploded assembly diagram, catalogue page 157

Jawa & Jawa 42 Platform · Rev 36 · p. 157Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1.30	Box Side Panel LH Jawa 42 White Matte Jawa 42 Og UgT13000KW0580B	1	Enquiry ↗
1.31	Box Side Panel LH Jawa 42 All Star Black Jawa 42 Og UgT13000KW0580E	1	Enquiry ↗
1.32	Box Side Panel LH Jawa 42 St With Decal All Star Black MatteT13000KW0490Y	1	Enquiry ↗
1.33	Box Side Panel LH Jawa 42 St With Decal Sirius White MatteT13000KW0490B	1	Enquiry ↗
1.34	Box Side Panel LH Jawa 42 St With Decal Orion Red MatteT13000KW0490X	1	Enquiry ↗
1.35	Box Side Panel LH Jawa 42 St With Decal Cosmic CarbonT13000KW0490M	1	Enquiry ↗
2	Side Panel RH Matt BlackT13010KW0060E	1	Enquiry ↗
2.1	Side Panel RH Jawa 42 Ug 2.2T13010KW0060T	1	Enquiry ↗
3	Screw Rdskt M6X1X12Xa2-70SF0212023	8	Enquiry ↗
3.1	Screw Rdskt M6X1X12X8.8 Jawa 42 Ug 2.2SF0212037	8	Enquiry ↗
4	Tool KitT14010KW0010N	1	Enquiry ↗
5	Tool Kit BandT14010KE0010N	1	Enquiry ↗
6	Damper Side Panel LockT18080KS0020N	2	Enquiry ↗
7	Bead Side PanelT13010KW0120N	2	Enquiry ↗
8	Box Side Panel RH Maroon Ral3005T13010KW0080A	1	Enquiry ↗
8.1	Box Side Panel RH Black 6CT13010KW0080E	1	Enquiry ↗
8.2	Box Side Panel RH Grey Ral7035T13010KW0080L	1	Enquiry ↗
8.3	Box Side Panel RH Galactic GreenT13010KW0080G	1	Enquiry ↗
8.4	Box Side Panel RH Halleys TealT13010KW0080U	1	Enquiry ↗
8.5	Box Side Panel RH Lumos LimeT13010KW0080D	1	Enquiry ↗
8.6	Box Side Panel RH Starlight BlueT13010KW0080C	1	Enquiry ↗
8.7	Box Side Panel RH Comet RedT13010KW0080P	1	Enquiry ↗
8.8	Box Side Panel RH Nebula BlueT13010KW0080V	1	Enquiry ↗
8.9	Box Side Panel RH Solid Bc Red Jm94T13010KW0080F	1	Enquiry ↗
8.10	Box Side Panel RH KhakiT13010KW0080T	1	Enquiry ↗
8.11	Box Side Panel RH Matt RedT13010KW0080X	1	Enquiry ↗
8.12	Box Side Panel RH Matt WhiteT13010KW0080B	1	Enquiry ↗
8.13	Box Side Panel RH Gloss BlackT13010KW0080Y	1	Enquiry ↗
8.14	Box Side Panel RH Galaxy GreyT13010KW0080R	1	Enquiry ↗
8.15	Box Side Panel RH Mystic OrangeT13010KW0080J	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

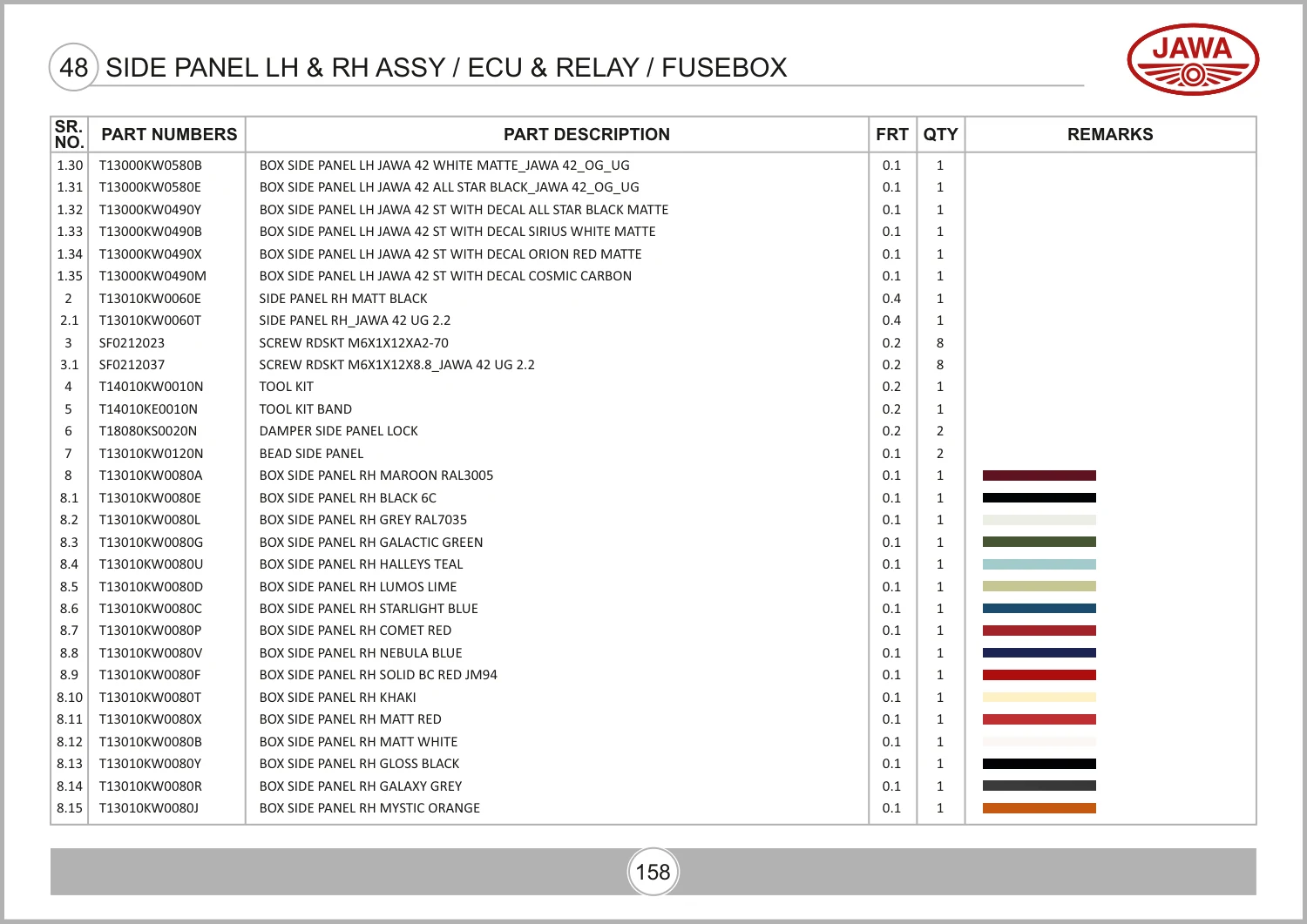

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 172, parts table page 173. View original parts table ↗
