Jawa & Jawa 42 Platform · ASSEMBLY 48 · REV 36
Side Panel LH & RH Assy / ECU & Relay / Fusebox
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa & Jawa 42 Platform · Rev 36 · p. 161Original parts list ↗
Parts in this drawing
14 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 12.6 | Electronic Control Unit OBD-II Phase-2 (E20) Jawa 42 Ug 2.2T1502GKW0120N | 1 | |
| 12.7 | Electronic Control Unit OBD-II Phase-2 (E20) Jawa 42 Dual DiscT1502GJ10040N | 1 | |
| 12.8 | Electronic Control Unit- Clpl Obd2A Bs-Vi, OBD-II AT1502GJ20010N ONLY HARDWARE | 1 | |
| 12.9 | Electronic Control Unit Hardware (Single Spark) OBD-II B (E20)T1502GJ30080N ONLY HARDWARE | 1 | |
| 13 | ECU Mtg. BracketT08000KW0260N | 1 | |
| 13.1 | ECU Mounting Bracket BSVIT13010KW0270N | 1 | |
| 14 | Socket Head Screw M6X12(White)SP0306006 | 3 | |
| 15 | Fuse Box Mounting BracketT13010KW0090N | 1 | |
| 16 | Relay Mounting Bracket BSVIT13010KW0260N | 1 | |
| 17 | Jawa Classic Owners Manual OBD IIT14090KW0040N | 1 | |
| 17.1 | Jawa 42 OBD II Owners ManualT14090KW0060N | 1 | |
| 17.2 | Jawa 42 OBD Ug 2.2 Owners ManualT14090KW0070N | 1 | |
| 18 | Mini Relay (Resistor Type)T1501FKW0120N | 3 | |
| 19 | Bolt Fl.6 X 1295701-06012-00 | 2 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

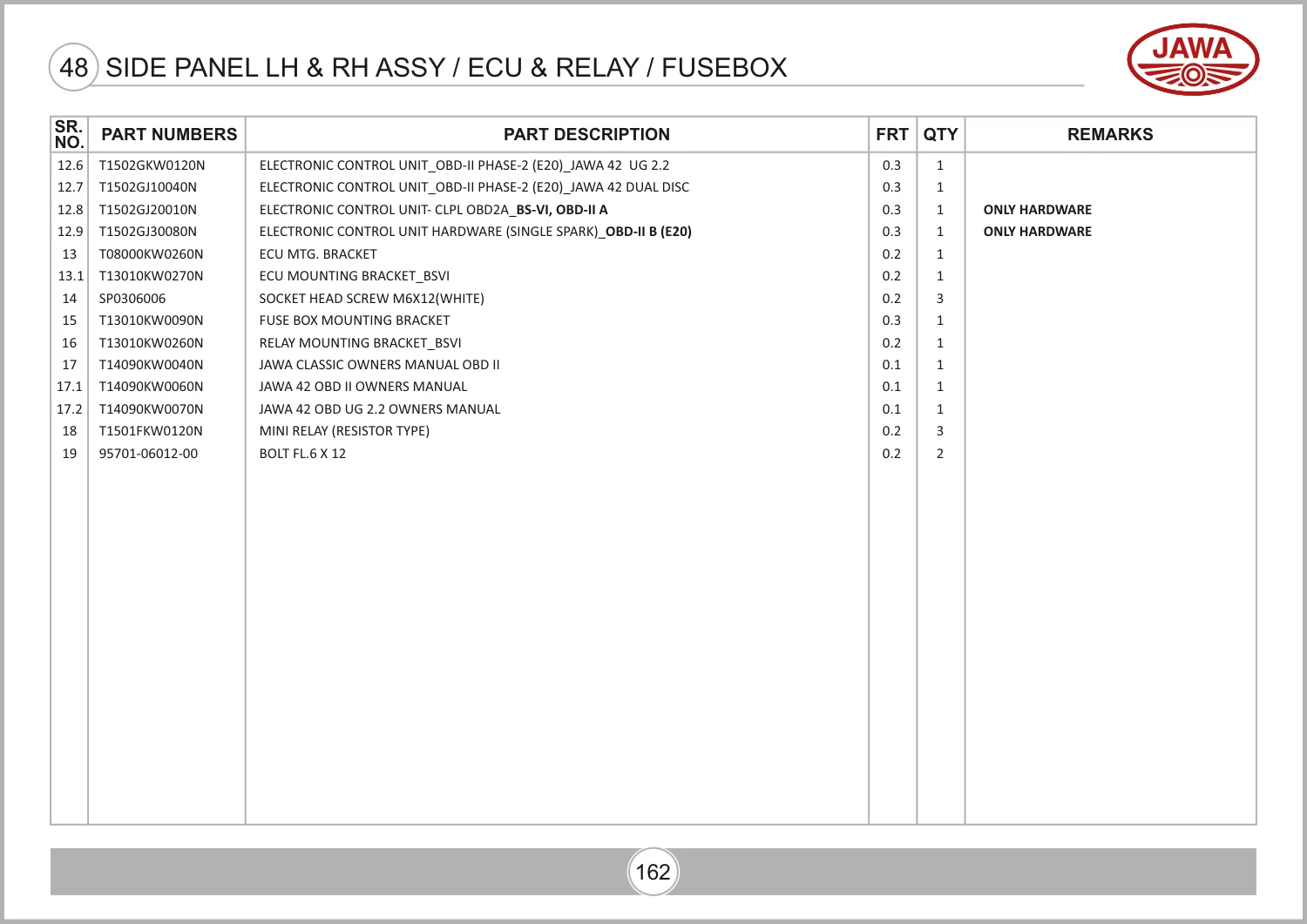

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 176, parts table page 177. View original parts table ↗
