Jawa & Jawa 42 Platform · ASSEMBLY 49 · REV 36

Frame Assembly & Frame Mountings

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa & Jawa 42 Platform Frame Assembly & Frame Mountings exploded assembly diagram, catalogue page 165

Jawa & Jawa 42 Platform · Rev 36 · p. 165Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
23.5	Fr Engine Bracket LH KhakiT2101DKW0010T	1	Enquiry ↗
24	Flange U Nut M10X1.5TSF0318009	7	Enquiry ↗
25	Flanged Bolt M10X90TSF0102299	1	Enquiry ↗
26	Fr Engine Bracket RH Maroon Ral3005T2101DKW0020A	1	Enquiry ↗
26.1	Fr Engine Bracket RH Black 6CT2101DKW0020E	1	Enquiry ↗
26.2	Fr Engine Bracket RH Grey Ral7035T2101DKW0020L	1	Enquiry ↗
26.3	Fr Engine Bracket RH Black GlossyT2101DKW0020W	1	Enquiry ↗
26.4	Fr Engine Bracket RH Solid Bc Red Jm94T2101DKW0020F	1	Enquiry ↗
26.5	Fr Engine Bracket RH KhakiT2101DKW0020T	1	Enquiry ↗
27	Bypass Resistor RosT1501AKW0230N	1	Enquiry ↗
28	Cable Strap 200MmT1501AKE2050E	1	Enquiry ↗
29	Washer M6 (6.5 X 12 X 2)TSF0401132	3	Enquiry ↗
30	Wiring Battery NegativeT1503AKW0020N	1	Enquiry ↗
31	Winker Relay With HolderMF00660000100 FITTED TILL - MZDKW1C16P1C97111	1	Enquiry ↗
31.1	Hazard Relay-Bulb Indicators OBD II Jawa42 UgT1501FJ20010N FROM- MZDKW1C16P1C97112 to MZDKW1C16R1C12450	1	Enquiry ↗
31.2	Flasher Relay J121 Jawa 42T1501FKW0090N MZDKW1C16R1C12451	1	Enquiry ↗
32	Wiring Battery PositiveT1503AKW0010N	1	Enquiry ↗
33	Starter RelayT1503CKE0730E	1	Enquiry ↗
34	Bolt Fl.6 X 1295701-06012-00	1	Enquiry ↗
35	Flange Bolt M6X10TSF0102281	2	Enquiry ↗
36	Rider Footrest LH Maroon Ral3005T2201AKW0020A	1	Enquiry ↗
36.1	Rider Footrest LH Black 6CT2201AKW0020E	1	Enquiry ↗
36.2	Rider Footrest LH Grey Ral7035T2201AKW0020L	1	Enquiry ↗
36.3	Rider Footrest LH Black GlossyT2201AKW0020W	1	Enquiry ↗
36.4	Rider Footrest LH Solid Bc Red Jm94T2201AKW0020F	1	Enquiry ↗
36.5	Rider Footrest LH KhakiT2201AKW0020T	1	Enquiry ↗
36.6	Rider Footrest Holder LH Black 6C Jawa 42 Ug 2.2T22000J20040E	1	Enquiry ↗
37	Rider Footrest RH Maroon Ral3005T2201AKW0070A	1	Enquiry ↗
37.1	Rider Footrest RH Black 6CT2201AKW0070E	1	Enquiry ↗
37.2	Rider Footrest RH Grey Ral7035T2201AKW0070L	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

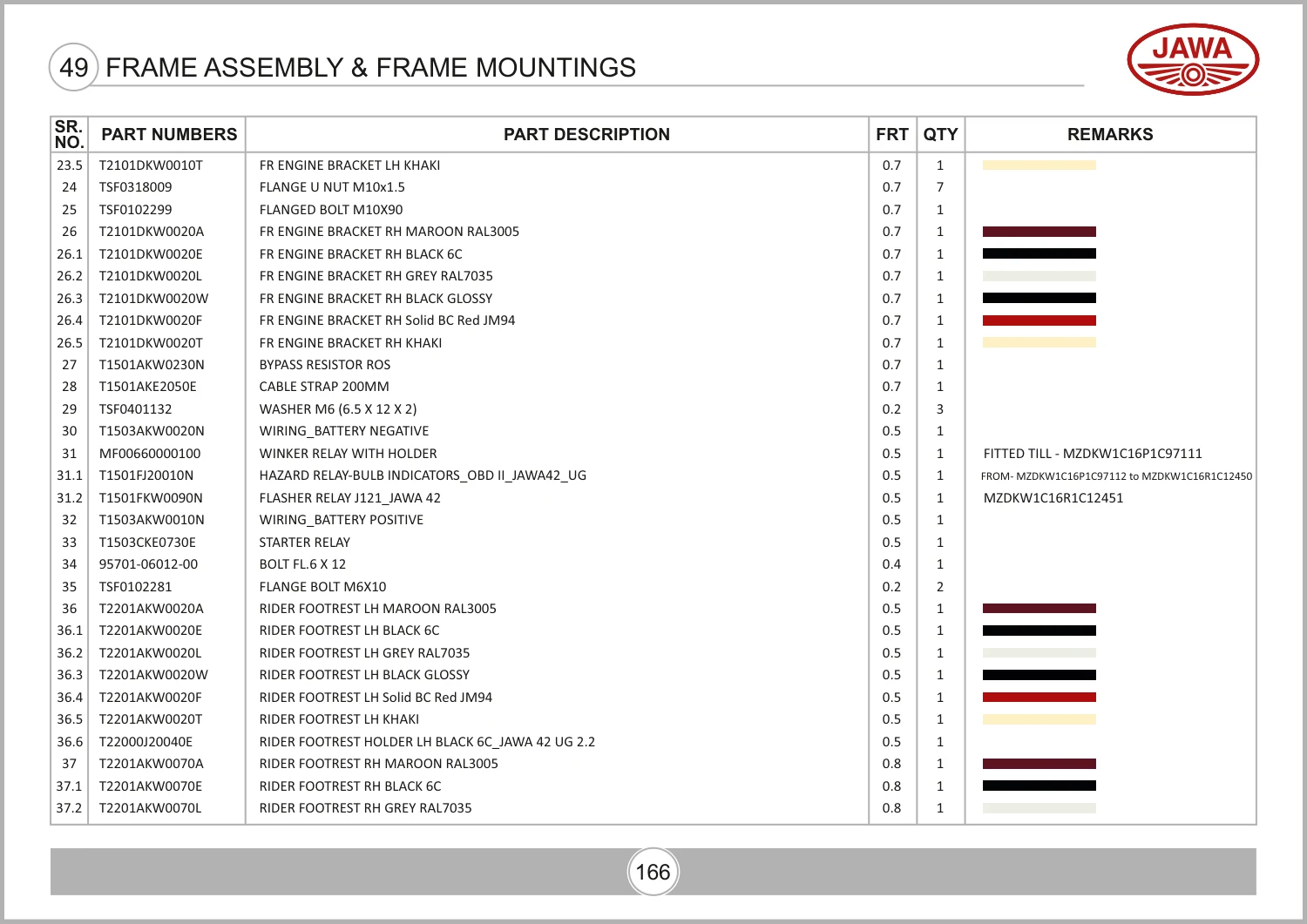

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 180, parts table page 181. View original parts table ↗
