Jawa & Jawa 42 Platform · ASSEMBLY 50 · REV 36

Handle Bar Assembly (Jawa)

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa & Jawa 42 Platform Handle Bar Assembly (Jawa) exploded assembly diagram, catalogue page 171

Jawa & Jawa 42 Platform · Rev 36 · p. 171Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Nut Hx Nyl Fl M10X1.50X13.5X10SF0315017	2	Enquiry ↗
2	Shot Silent BlockMH01800004000	2	Enquiry ↗
2.1	Shot Silent BlockT0505HB10010N	2	Enquiry ↗
3	Silent BlockMH01800003900	4	Enquiry ↗
4	Socket Head Screw M8X28SP0308023	6	Enquiry ↗
5	Upper Bracket J302T0505DJ30020N	1	Enquiry ↗
6	Screw Special M16X1.25X25X8.8SF0200115	1	Enquiry ↗
7	Spacer Inner Silent BlockMH01790002300	2	Enquiry ↗
8	Handle Bar Holder LowerT07010KW0020N	2	Enquiry ↗
9	Handle Bar TubeT07000KW0010N	1	Enquiry ↗
9.1	Handle Bar Tube BlackT07000KW0010E	1	Enquiry ↗
10	Switch Assy RH J301T1501MJ30010N	1	Enquiry ↗
10.1	Switch Assy RH With Trip Meter S/WT1501MKW0120N	1	Enquiry ↗
11	Throttle Control Tube With Handle Grip RH (J121)T0701DKW0020N	1	Enquiry ↗
12	CounterweightT0701JKW0030N	2	Enquiry ↗
12.1	Counterweight Black Jawa 42 Ug 2.2T0701JKW0020N	2	Enquiry ↗
13	Socket Head Screw M6X55SP0306020	2	Enquiry ↗
13.1	Bolt Socket M6X1X60X8.8 Jawa 42 Ug 2.2SF0105025	2	Enquiry ↗
14	Switch Assy LH- J1 UgT1501MKW0110N	1	Enquiry ↗
15	Handle Grip LHT0701DKW0010N	1	Enquiry ↗
16	Handle Bar Holder UpperT07010KW0010N	2	Enquiry ↗
17	Throttle Cable AssyT2401DKW0010N	1	Enquiry ↗
18	Mirror RH AssemblyT14040KW0020N	1	Enquiry ↗
19	Mirror LH AssemblyT14040KW0010N	1	Enquiry ↗
20	Clutch LeverT0701CKE0060N	1	Enquiry ↗
20.1	Clutch Lever BlackT0701CKE0060E	1	Enquiry ↗
21	Clutch Lever AssemblyT0701CKW0030N	1	Enquiry ↗
21.1	Clutch Lever Assembly BlackT0701CKW0030E	1	Enquiry ↗
22	Clutch Cable Assembly - BSVIT2401HKW0010N	1	Enquiry ↗
23	Cable TiesMF01840000300	2	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

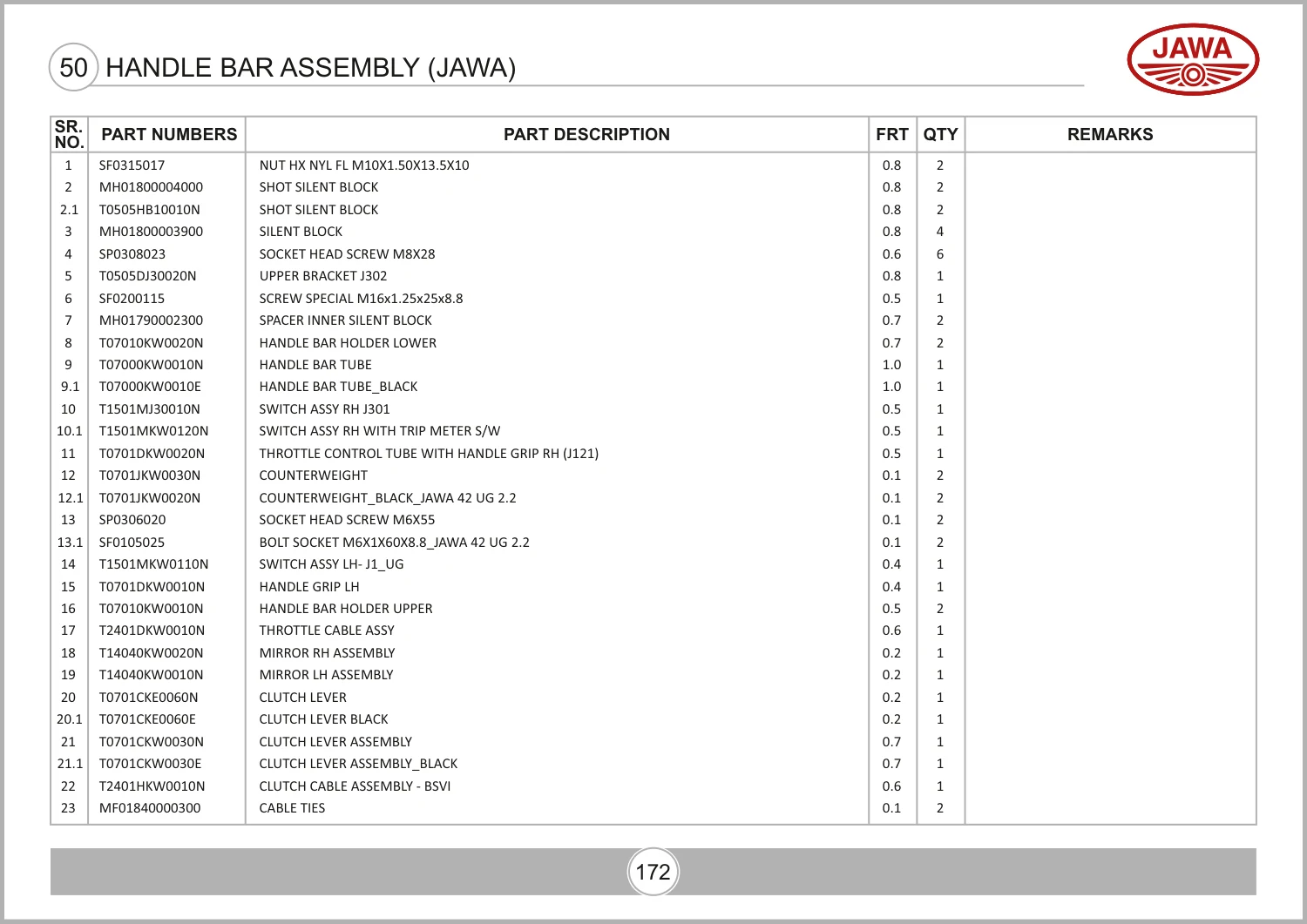

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 186, parts table page 187. View original parts table ↗
