Handle Bar Assembly (Jawa - Forty Two)

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa & Jawa 42 Platform Handle Bar Assembly (Jawa - Forty Two) exploded assembly diagram, catalogue page 177

Jawa & Jawa 42 Platform · Rev 36 · p. 177Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
16	Handle Bar Holder Upper Jawa 42 & Jawa 42 Dual DiscT0701GKW0010N	1	Enquiry ↗
16.1	Handle Bar Holder Upper Jawa 42 2.2T07010KW0010W	2	Enquiry ↗
16.2	Handle Bar Holder Upper Jawa 42 Ug 2.2T0701GKW0010T	2	Enquiry ↗
17	Socket Head Screw M8X28SP0308023	4	Enquiry ↗
18	Clutch LeverT0701CKE0060N	1	Enquiry ↗
19	Mirror RH Assembly Black Jawa 42 Ug 2.2T14040KW0070N	1	Enquiry ↗
20	Mirror LH Assembly Black Jawa 42 Ug 2.2T14040KW0060N	1	Enquiry ↗
21	Screw Socket M6X1X35X8.8SF0224101	2	Enquiry ↗
22	Nyloc Nut M5SF0302015	1	Enquiry ↗
23	Clutch SwitchT0702AKE0010N	1	Enquiry ↗
24	Holder SupportMH01710001200	1	Enquiry ↗
25	Bolt M6 X 32SP0906039	2	Enquiry ↗
26	Check NutT07020KE0030N	1	Enquiry ↗
27	Holder UpperT0701CKW0050N	1	Enquiry ↗
28	Bolt M6 X 32SP0906039	2	Enquiry ↗
29	Counterweight Jawa 42 Ug 2.2T0701JKW0020N	2	Enquiry ↗
30	Pivot Lever LH Minus HeadT0701CKW0070N	1	Enquiry ↗
31	Plug Cap RHT0701CJ30020N	1	Enquiry ↗
32	Plug Cap LHT0701CJ30010N	1	Enquiry ↗
33	Steering Bolt CapT07000KW0040N	1	Enquiry ↗
34	Rubber Strap 110 Mm Jawa 42 Ug 2.2T08000B10420N	4	Enquiry ↗
35	Bolt, Socket Head M5X0.8X10 White PassivationTSF0224077	2	Enquiry ↗
36	Handle Bar Holder Upper Bolt Cap Jawa 42 Ug 2.2T0701GY50020N	2	Enquiry ↗
37	Hose Tie Hellermann Jawa 42 Ug 2.2T25010KW0034N	2	Enquiry ↗
38	Clip Windshield Washer Tube Jawa 42 Ug 2.20116CAG01001N	1	Enquiry ↗
39	Rubber Strap Jawa 42T15000KW0050N	4	Enquiry ↗
40	Clutch Lever Assembly Black Jawa 42 UgT0701CY50020N	1	Enquiry ↗
41	Clutch Lever BlackT0701CY50120E	1	Enquiry ↗
42	Holder UpperT0701CY50040N	1	Enquiry ↗
43	Pivot Clutch LeverT0701CY50050N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

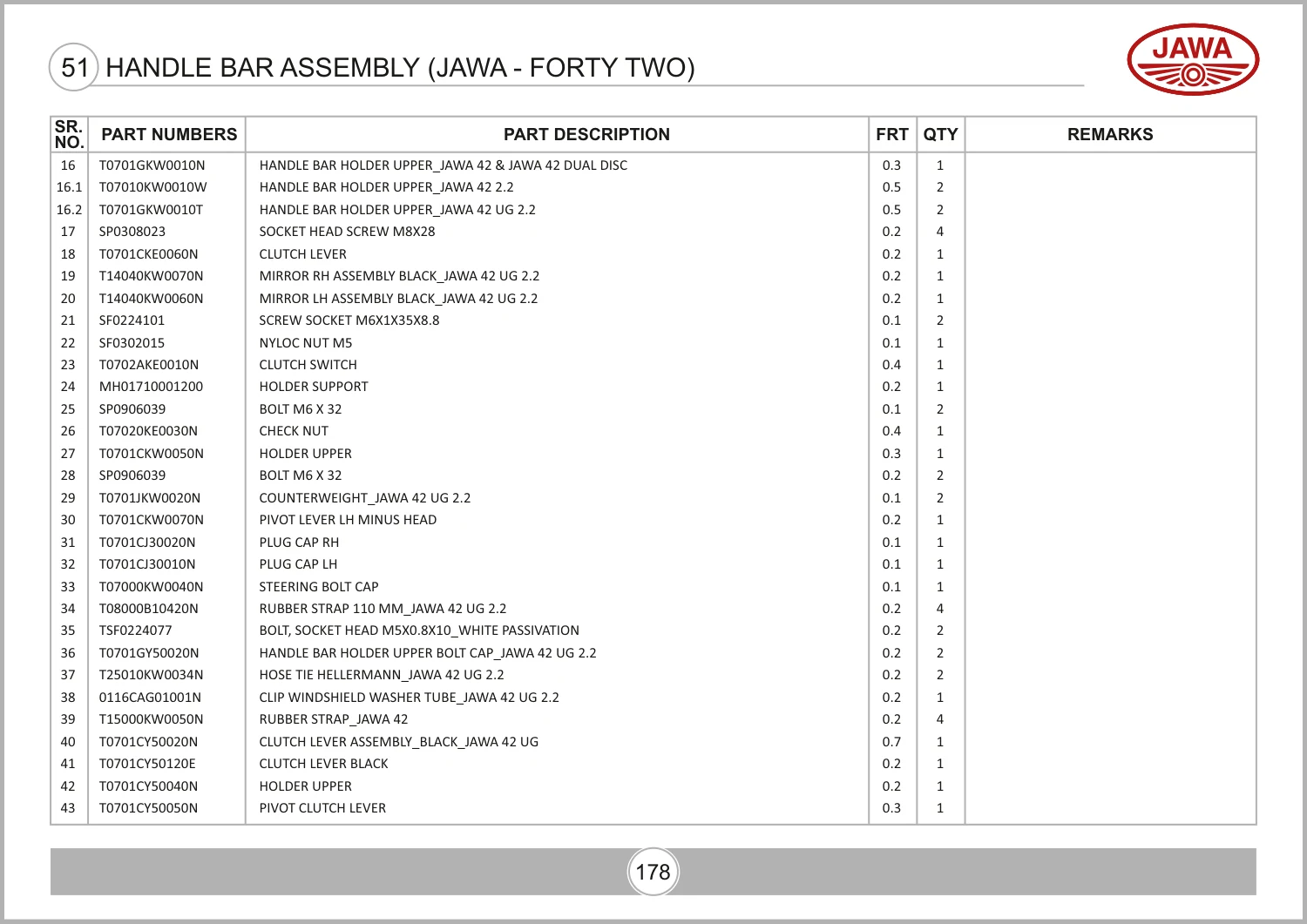

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 192, parts table page 193. View original parts table ↗
