Jawa & Jawa 42 Platform · ASSEMBLY 52 · REV 36
Swing Arm Assembly And Rear Shock Absorber
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part

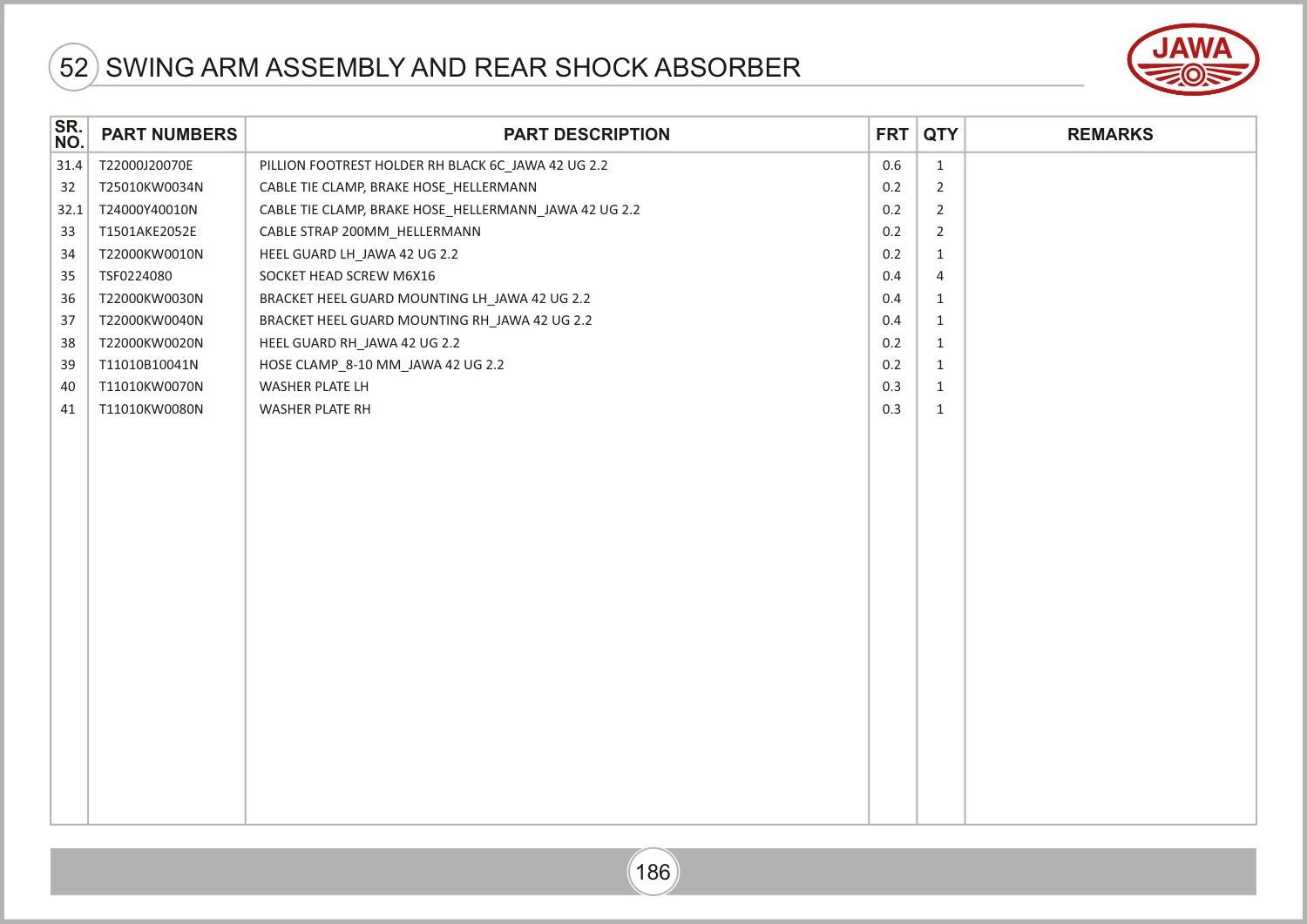

Jawa & Jawa 42 Platform · Rev 36 · p. 185Original parts list ↗
Parts in this drawing
12 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 31.4 | Pillion Footrest Holder RH Black 6C Jawa 42 Ug 2.2T22000J20070E | 1 | |
| 32 | Cable Tie Clamp, Brake Hose HellermannT25010KW0034N | 2 | |
| 32.1 | Cable Tie Clamp, Brake Hose Hellermann Jawa 42 Ug 2.2T24000Y40010N | 2 | |
| 33 | Cable Strap 200Mm HellermannT1501AKE2052E | 2 | |
| 34 | Heel Guard LH Jawa 42 Ug 2.2T22000KW0010N | 1 | |
| 35 | Socket Head Screw M6X16TSF0224080 | 4 | |
| 36 | Bracket Heel Guard Mounting LH Jawa 42 Ug 2.2T22000KW0030N | 1 | |
| 37 | Bracket Heel Guard Mounting RH Jawa 42 Ug 2.2T22000KW0040N | 1 | |
| 38 | Heel Guard RH Jawa 42 Ug 2.2T22000KW0020N | 1 | |
| 39 | Hose Clamp 8-10 Mm Jawa 42 Ug 2.2T11010B10041N | 1 | |
| 40 | Washer Plate LHT11010KW0070N | 1 | |
| 41 | Washer Plate RHT11010KW0080N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.
Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 200, parts table page 201. View original parts table ↗
