Electronic Fuel Injection (EFI) Assembly

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa & Jawa 42 Platform Electronic Fuel Injection (EFI) Assembly exploded assembly diagram, catalogue page 205

Jawa & Jawa 42 Platform · Rev 36 · p. 205Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Throttle Body Assembly (33 Dia)T0102HKW0010N FITTED TILL - MZDKW1C16P1C97111	1	Enquiry ↗
2	Flanged Head Bolt-Sh M6X12SP0906041	4	Enquiry ↗
3	Throttle Cable BracketT0102HKW0040N	1	Enquiry ↗
4	Fastner-MtbT1501PKW0050N	4	Enquiry ↗
5	Fastner-TmapT1502EKW0020N	1	Enquiry ↗
6	Tmap ECU CT1502EKE0250N	1	Enquiry ↗
7	Metal FlangeT10050KW0050N	1	Enquiry ↗
8	Fuel Sensor UnitT1501PKW0010N	1	Enquiry ↗
8.1	Fuel Sensor Unit OBD-II Phase-2 (E20)T1501PJ10010N	1	Enquiry ↗
9	Rubber GasketT1501PKW0040N	1	Enquiry ↗
10	Iacv ECUT1502HKW0020N	1	Enquiry ↗
11	Fuel Injector CapT1501PVF0020E	1	Enquiry ↗
12	SeperatorT1501PKW0060N	1	Enquiry ↗
13	Fixing Injector Clip (Dellorto)T0102BKE0050N	1	Enquiry ↗
14	Fuel Injector J1A UgT1501PKW0070N	1	Enquiry ↗
15	Electronic Control Unit BSIVT1502GKW0020N	1	Enquiry ↗
15.1	Electronic Control Unit BSVIT1502GKW0040N	1	Enquiry ↗
15.2	Electronic Control Unit BSVI TandemT1502GKW0060N FITTED TILL - MZDKW1C16P1C97111	1	Enquiry ↗
15.3	Electronic Control Unit OBD II – Jawa 42T1502GKW0100N FITTED FROM - MZDKW1C16P1C97112	1	Enquiry ↗
15.4	Electronic Control Unit - Jawa 42 Dual DiscT1502GJ10030N	1	Enquiry ↗
15.5	Electronic Control Unit OBD II – Jawa ClassicT1502GKW0110N	1	Enquiry ↗
15.6	Electronic Control Unit OBD-II Phase-2 (E20) Jawa 42 Ug 2.2T1502GKW0120N	1	Enquiry ↗
15.7	Electronic Control Unit OBD-II Phase-2 (E20) Jawa 42 Dual DiscT1502GJ10040N	1	Enquiry ↗
15.8	Electronic Control Unit- Clpl Obd2A Bs-Vi, OBD-II AT1502GJ20010N ONLY HARDWARE	1	Enquiry ↗
15.9	Electronic Control Unit Hardware (Single Spark) OBD-II B (E20)T1502GJ30080N ONLY HARDWARE	1	Enquiry ↗
16	Lambda Sensor - J301 Jawa Classic & Jawa42 BSIV / BSVIT15000J30010N	1	Enquiry ↗
16.1	Lambda Sensor - Y501 Jawa 42 Ug 2.2T15000Y50020N	1	Enquiry ↗
17	Ignition Coil With CableT1502CKE0050N	1	Enquiry ↗
18	Fuel Pump Plastic Bs4 & Bs6T10050KW0010N FITTED TILL - MZDKW1C16P1C97111	1	Enquiry ↗
18.1	Fuel Pump OBD IIT10050J20010N FITTED FROM - MZDKW1C16P1C97112	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

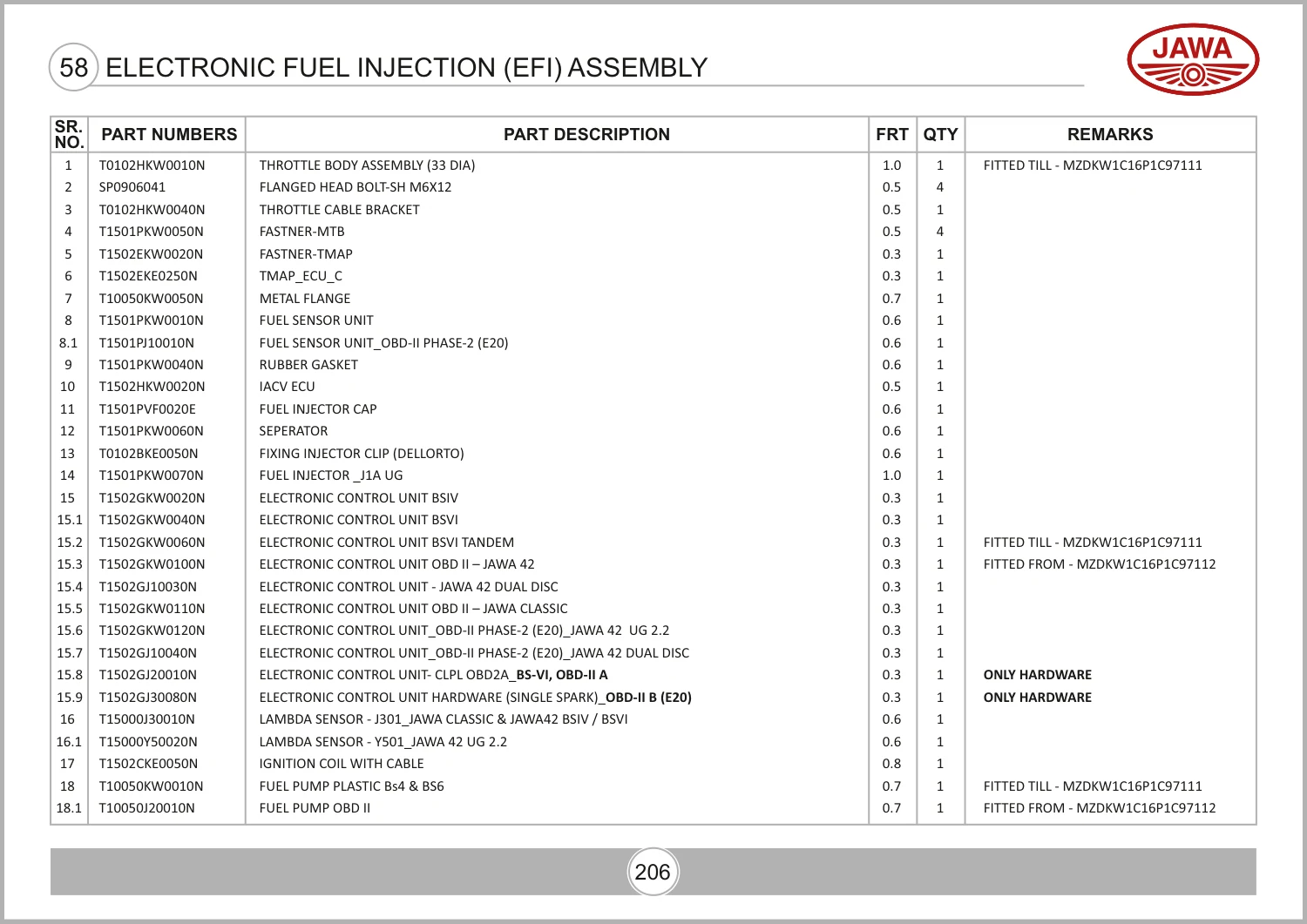

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 220, parts table page 221. View original parts table ↗
