Jawa & Jawa 42 Platform · ASSEMBLY 59 · REV 36
Decals - Jawa
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa & Jawa 42 Platform · Rev 36 · p. 209Original parts list ↗
Parts in this drawing
19 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Decal Tank Front LHT13200KW0090N | 1 | |
| 1.1 | Decal Tank Front LH BlackT13200KW0540E | 1 | |
| 2 | Decal Tank Front RHT13200KW0100N | 1 | |
| 2.1 | Decal Tank Front RH BlackT13200KW0550E | 1 | |
| 3 | Decal Tank Rear LHT13200KW0110N | 1 | |
| 3.1 | Decal Tank Rear LH BlackT13200KW0560E | 1 | |
| 4 | Decal Tank Rear RHT13200KW0120N | 1 | |
| 4.1 | Decal Tank Rear RH BlackT13200KW0570E | 1 | |
| 5 | Decal Side Panel LHT13200KW0130N | 1 | |
| 5.1 | Decal Side Panel LH BlackT13200KW0530E | 1 | |
| 6 | Decal Side Panel RHT13200KW0140N | 1 | |
| 6.1 | Decal Side Panel RH BlackT13200KW0520E | 1 | |
| 7 | Logo Engine Starter Motor CoverT13200KW0040N | 1 | |
| 8 | Logo Horn Cover JawaT13200KW0050N | 1 | |
| 9 | Logo Fuel Tank CapT13200KW0060N | 1 | |
| 10 | Logo Tank (Chrome)T13200KW0020F | 2 | |
| 10.1 | Logo Tank (Khaki)T13200KW0480K | 2 | |
| 10.2 | Logo Tank (Galaxy Grey)T13200KW0480R | 2 | |
| 11 | Decal Upper Cowl CenterT13200KW0200N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

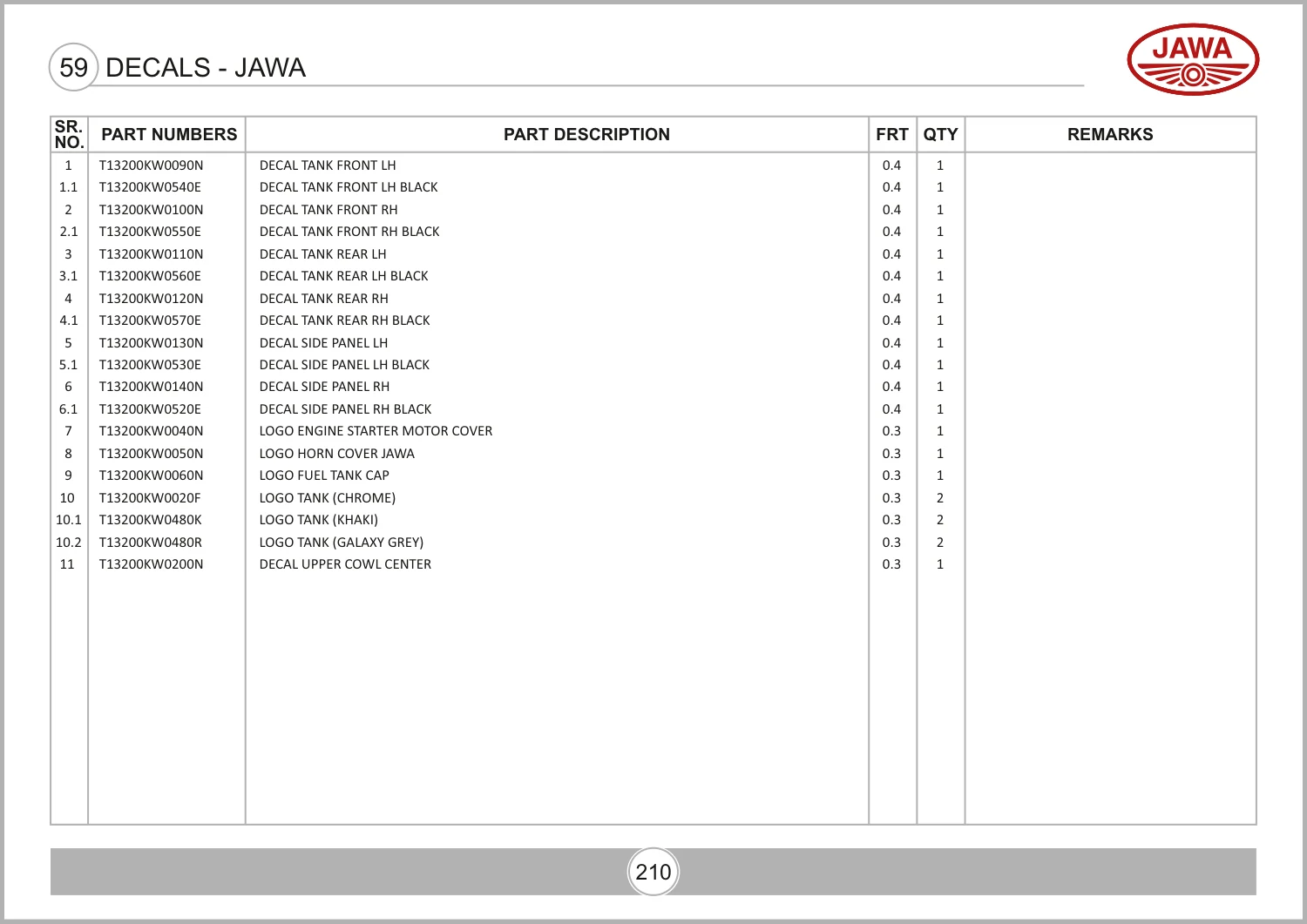

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 224, parts table page 225. View original parts table ↗
