Jawa & Jawa 42 Platform · ASSEMBLY 66 · REV 36
Decals For Jawa Fortytwo Upgrade
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa & Jawa 42 Platform · Rev 36 · p. 223Original parts list ↗

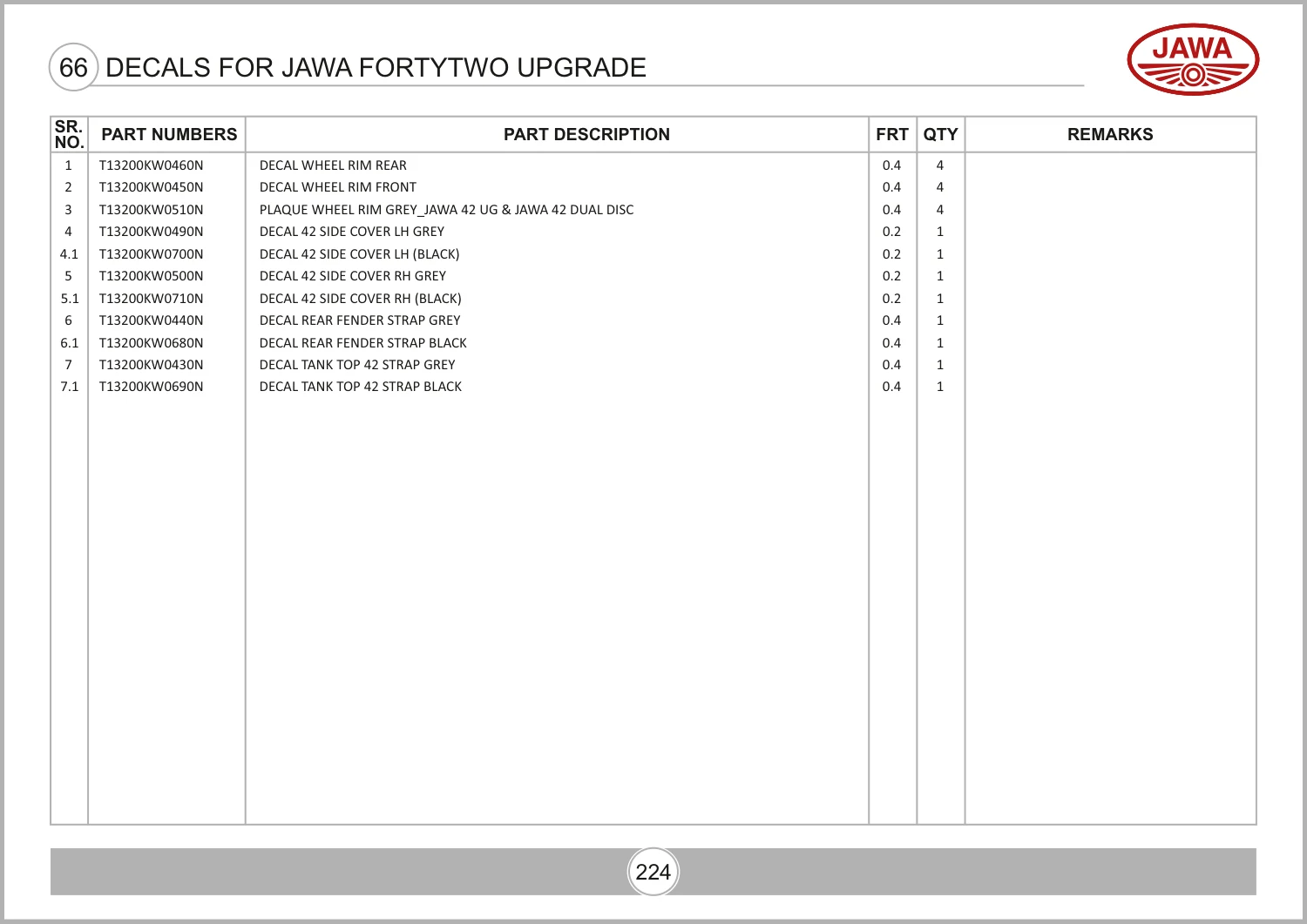

Parts in this drawing
11 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Decal Wheel Rim RearT13200KW0460N | 4 | |
| 2 | Decal Wheel Rim FrontT13200KW0450N | 4 | |
| 3 | Plaque Wheel Rim Grey Jawa 42 Ug & Jawa 42 Dual DiscT13200KW0510N | 4 | |
| 4 | Decal 42 Side Cover LH GreyT13200KW0490N | 1 | |
| 4.1 | Decal 42 Side Cover LH (Black)T13200KW0700N | 1 | |
| 5 | Decal 42 Side Cover RH GreyT13200KW0500N | 1 | |
| 5.1 | Decal 42 Side Cover RH (Black)T13200KW0710N | 1 | |
| 6 | Decal Rear Fender Strap GreyT13200KW0440N | 1 | |
| 6.1 | Decal Rear Fender Strap BlackT13200KW0680N | 1 | |
| 7 | Decal Tank Top 42 Strap GreyT13200KW0430N | 1 | |
| 7.1 | Decal Tank Top 42 Strap BlackT13200KW0690N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.
Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 238, parts table page 239. View original parts table ↗
