Jawa & Jawa 42 Platform · ASSEMBLY 78 · REV 36
Accessories
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa & Jawa 42 Platform · Rev 36 · p. 249Original parts list ↗
Parts in this drawing
8 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 25 | Stay Assembly LH UpgradeT13190KW0030N | 1 | |
| 26 | Stay Assembly RH UpgradeT13190KW0040N | 1 | |
| 27 | Plaque Wheel Rim RedT13200KW0470N | 4 | |
| 28 | Socket Head Screw M6X55SP0306020 | 2 | |
| 29 | Button Head Socket Screw M8X25SP0708011 | 2 | |
| 30 | Screw Rdskt M6X1X12Xa2-70SF0212023 | 8 | |
| 31 | Kit Front Faring Jawa 42 UpgradeT13020KW0010N | 1 | |
| 32 | Kit Front Grill Jawa 42 UpgradeT13020KW0020N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

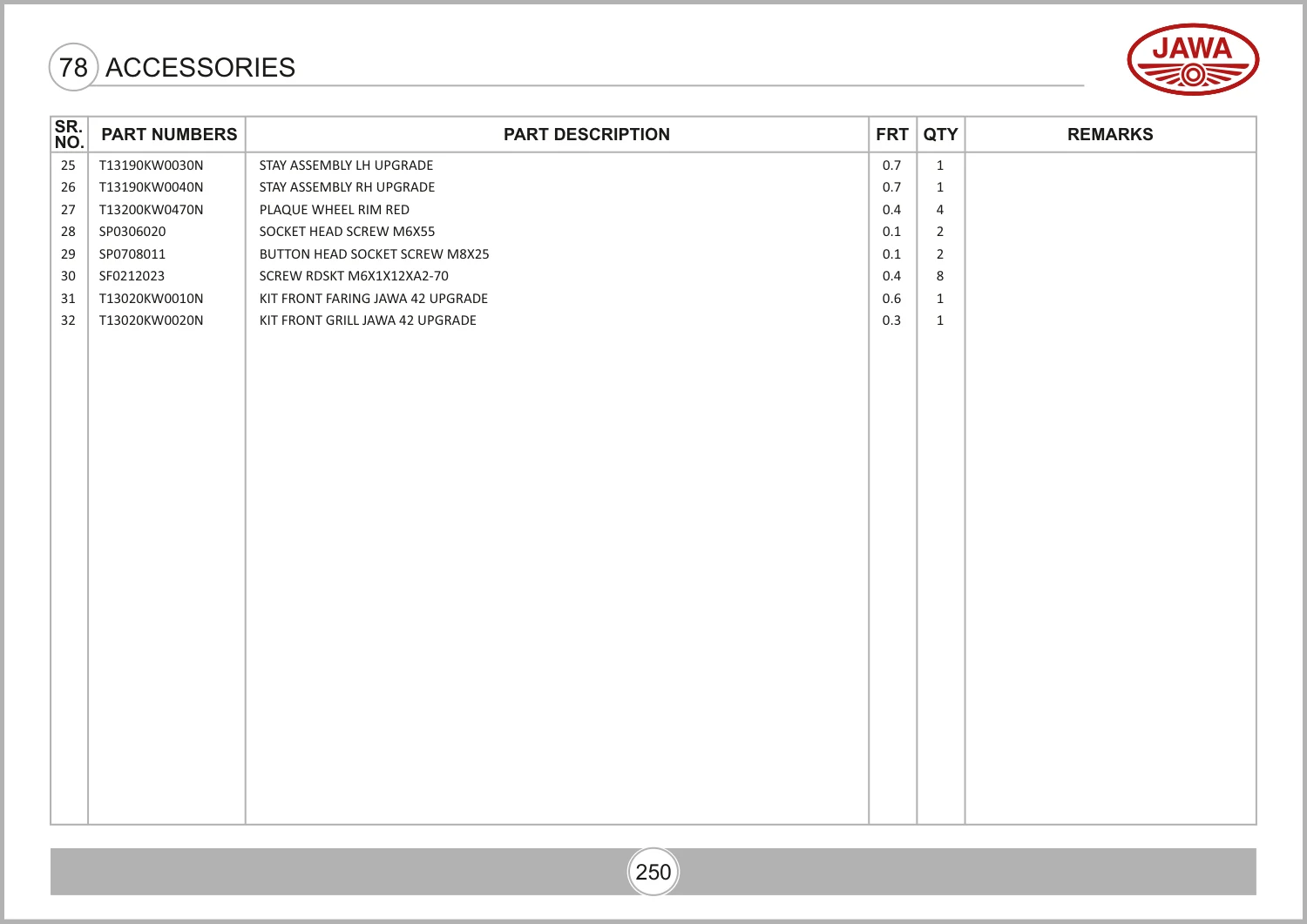

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 264, parts table page 265. View original parts table ↗
