Yezdi Roadster Mark II · ASSEMBLY 20 · REV 06
Footrest Assembly LH & RH
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Roadster Mark II · Rev 06 · p. 55Original parts list ↗
Parts in this drawing
14 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 31 | Spring Washer For M8SP3908001 | 2 | |
| 32 | Rotation SpringMH01820003800 | 2 | |
| 33 | Ball Steel(Under)#896211-08000 | 2 | |
| 34 | Washer Plain M6X18X1.6SF0401090 | 1 | |
| 35 | Pillion Footrest Holder LHT22000J20170N | 1 | |
| 36 | Heel Guard LH Pu Textured BlackT22000J20180E | 1 | |
| 36.1 | Heel Guard LH Matt BlackT22000J20180U SHADOW BLACK | 1 | |
| 37 | Bolt Socket M8X1.25X48X10.9SF0105028 | 4 | |
| 38 | Bolt Hex Fl M6X1X50X8.8SF0102646 | 1 | |
| 39 | Clevis, Rider Footrest RHT22000J30010T | 1 | |
| 40 | Pillion Footrest RH Satin BlackT2201BB10040W | 1 | |
| 41 | Rider Footrest RH Satin BlackT2201AB10030W | 1 | |
| 42 | Heel Guard RH Pu Textured BlackT22000J20190E | 1 | |
| 42.1 | Heel Guard RH Matt BlackT22000J20190U SHADOW BLACK | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

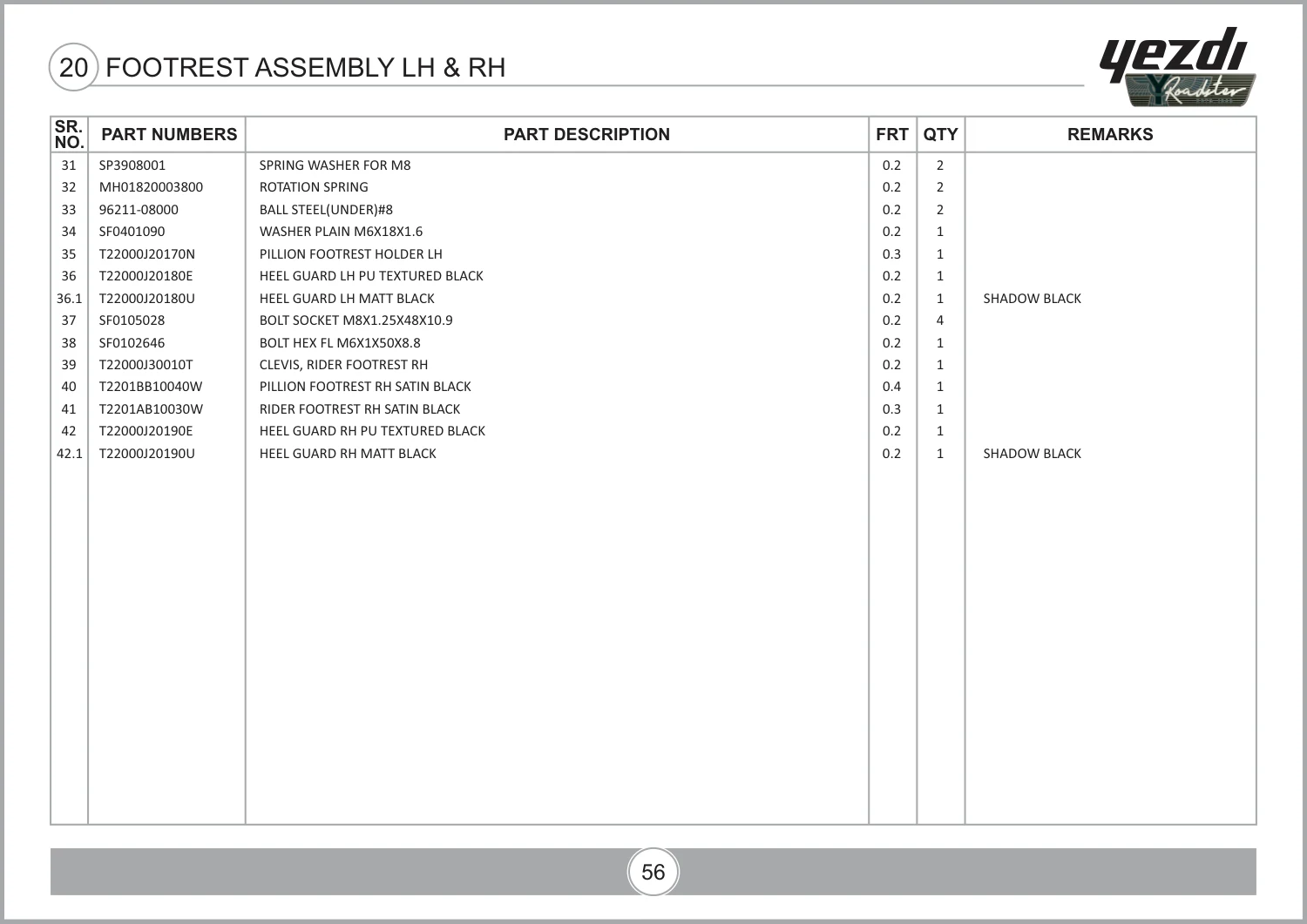

Source: PARTS CATALOGUE - YEZDI ROADSTER MARK-II_REV-06.pdf · PDF diagram page 65, parts table page 66. View original parts table ↗
