This part is reference 7
Yezdi Scrambler LWE · Rev 04 · p. 85Original parts list ↗

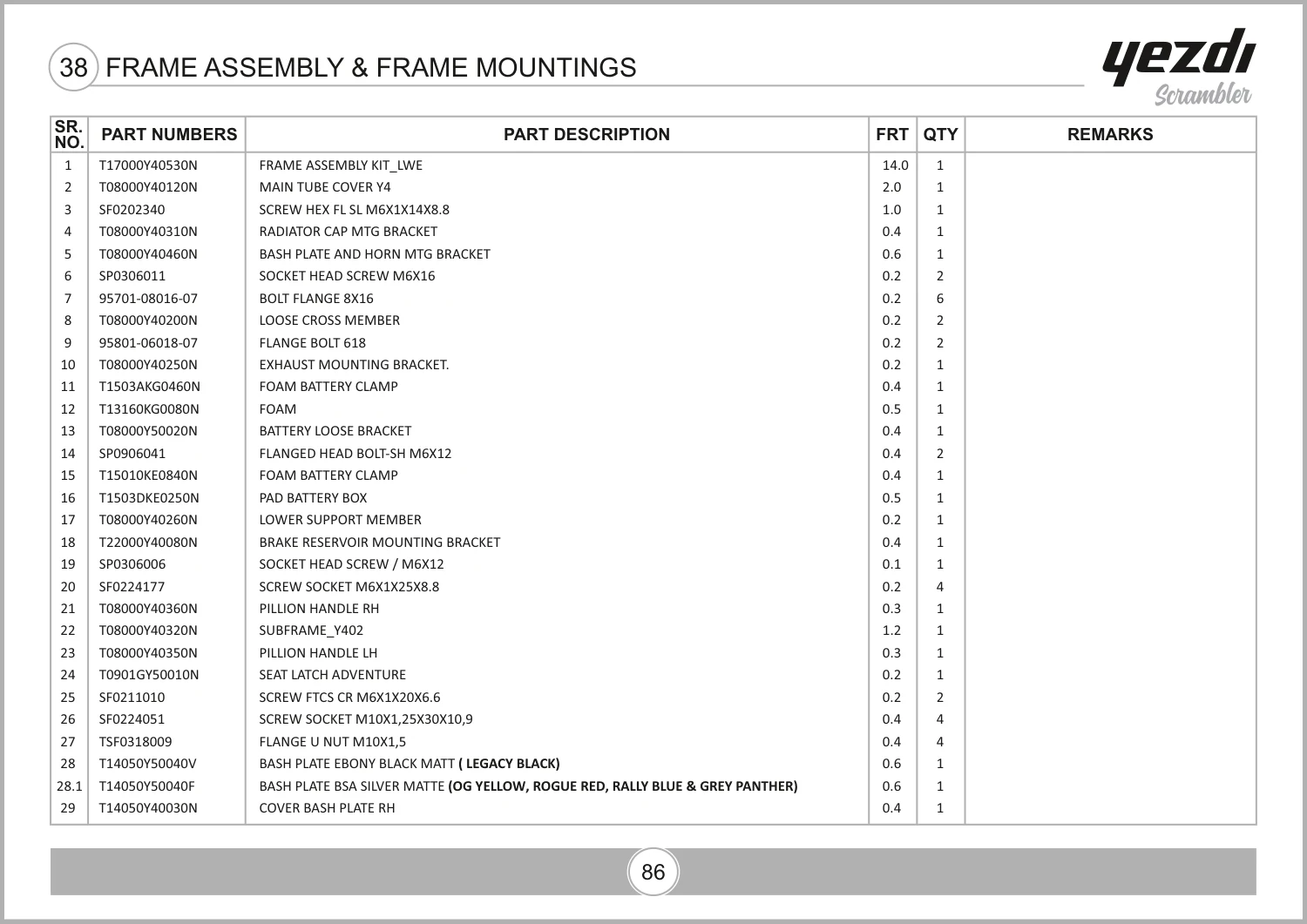

Highlighted catalogue reference 7. The image shows the complete assembly.
Bolt Flange 8X16 · 95701-08016-07
Listed in the supplied Yezdi Scrambler LWE catalogue, revision 04, under Frame Assembly & Frame Mountings. Match reference 7 in the drawing. Assembly quantity: 6. Choose the quantity you need in your enquiry above.
Bolt Flange 8X16 specifications & catalogue names
- Part number
- 95701-08016-07
- Catalogue part name
- BOLT FLANGE 8X16
Bike catalogues listing this part number
These are catalogue references. Confirm your model year, BS/OBD version and any colour or size notes before ordering.
Model & catalogue references
Match your bike version and these notes. A shared part number does not confirm compatibility with every model year.
| Model / revision | Assembly / reference | Source note |
|---|---|---|
| Yezdi Scrambler LWEBolt Flange 8X16Rev 04 · PDF p. 97 | Frame Assembly & Frame MountingsRef 7 · Assembly qty. 6 | Confirm exact bike variant. |
