Screw Socket M8X1 25X48X10.9
SF0105028
Enquiry ↗CATALOGUE DRAWING
This part is reference 1

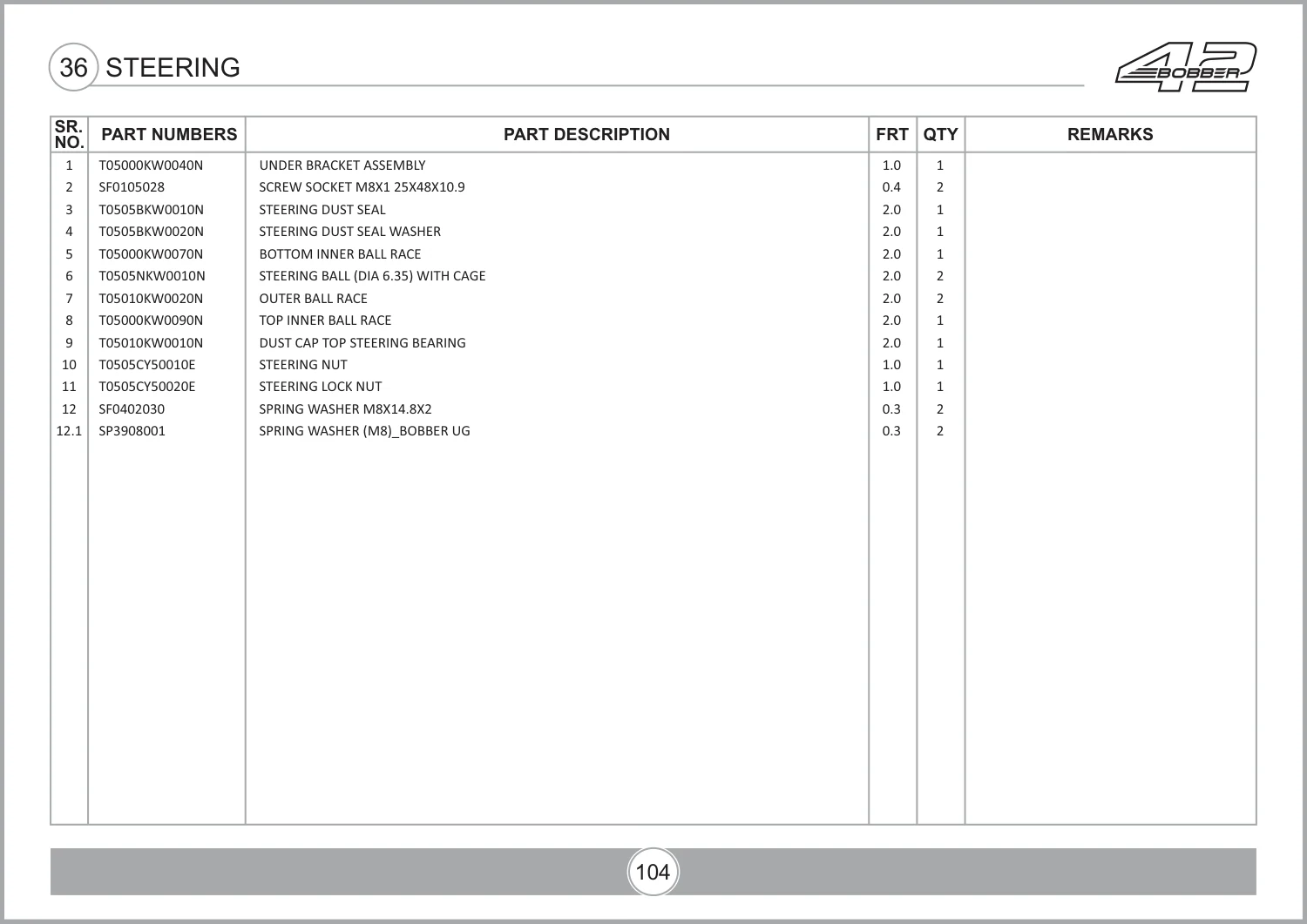

Jawa 42 Bobber · Rev 17 · p. 103Original parts list ↗
Highlighted catalogue reference 1. The image shows the complete assembly.
Under Bracket Assembly · T05000KW0040N
Listed in the supplied Jawa 42 Bobber catalogue, revision 17, under Steering. Match reference 1 in the drawing. Assembly quantity: 1. Choose the quantity you need in your enquiry above.
Under Bracket Assembly specifications & catalogue names
- Part number
- T05000KW0040N
- Catalogue part name
- UNDER BRACKET ASSEMBLY
Bike catalogues listing this part number
These are catalogue references. Confirm your model year, BS/OBD version and any colour or size notes before ordering.
Model & catalogue references
Match your bike version and these notes. A shared part number does not confirm compatibility with every model year.
| Model / revision | Assembly / reference | Source note |
|---|---|---|
| Jawa 42 BobberUnder Bracket AssemblyRev 17 · PDF p. 116 | SteeringRef 1 · Assembly qty. 1 | Confirm exact bike variant. |
| Jawa 42 OG All StarUnder Bracket AssemblyRev 01 · PDF p. 77 | SteeringRef 1 · Assembly qty. 1 | Confirm exact bike variant. |
| Jawa 42 OG All StarUnder Bracket AssemblyRev 01 · PDF p. 81 | Front Fork MountingsRef 1 · Assembly qty. 1 | Confirm exact bike variant. |
| Jawa PerakUnder Bracket AssemblyRev 24 · PDF p. 122 | SteeringRef 1 · Assembly qty. 1 | Confirm exact bike variant. |
| Jawa & Jawa 42 PlatformUnder Bracket AssemblyRev 36 · PDF p. 153 | SteeringRef 1 · Assembly qty. 1 | Confirm exact bike variant. |
