CATALOGUE DRAWING

This part is reference 16

Clamping Bracket 3,Brake Hose T05000KW0130N — reference 16 in the Jawa & Jawa 42 Platform Mudguard Assembly assembly drawing
Jawa & Jawa 42 Platform · Rev 36 · p. 93Original parts list ↗
This part is reference 16
Full-size Mudguard Assembly catalogue drawing
Highlighted catalogue reference 16. The image shows the complete assembly.
Model & variant notes ↓View all parts in this assembly →
PART IDENTIFICATION

Clamping Bracket 3,Brake Hose · T05000KW0130N

Listed in the supplied Jawa & Jawa 42 Platform catalogue, revision 36, under Mudguard Assembly. Match reference 16 in the drawing. Assembly quantity: 4. Choose the quantity you need in your enquiry above.

EXACT PART DETAILS

Clamping Bracket 3,Brake Hose specifications & catalogue names

Part number
T05000KW0130N
Catalogue part name
CLAMPING BRACKET 3,BRAKE HOSE

Bike catalogues listing this part number

Jawa & Jawa 42 Platform parts

These are catalogue references. Confirm your model year, BS/OBD version and any colour or size notes before ordering.

CHECK BEFORE ORDERING

Model & catalogue references

Match your bike version and these notes. A shared part number does not confirm compatibility with every model year.

Model / revisionAssembly / referenceSource note

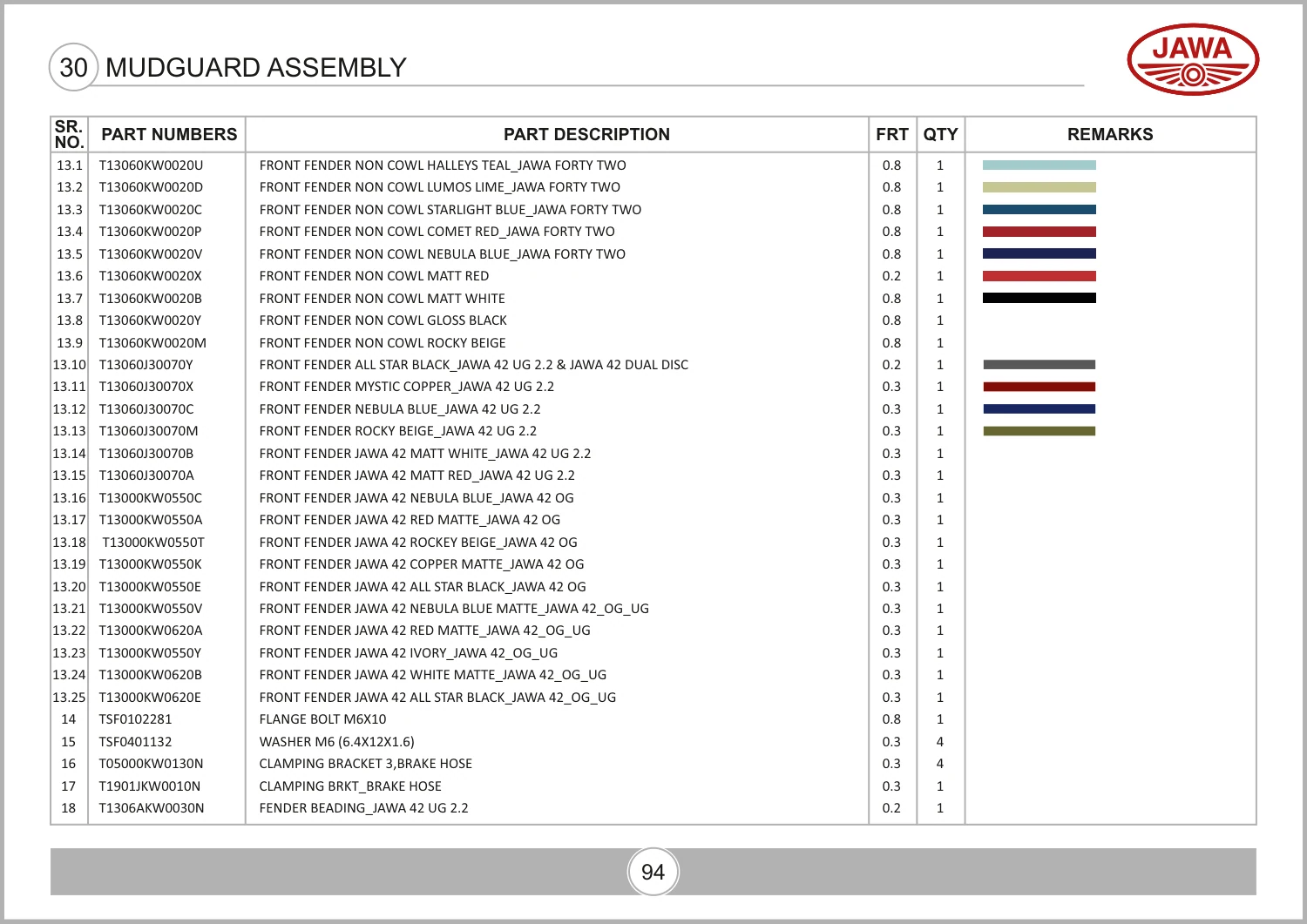

Jawa & Jawa 42 PlatformClamping Bracket 3,Brake HoseRev 36 · PDF p. 109Mudguard AssemblyRef 16 · Assembly qty. 4Confirm exact bike variant.

Other parts in this drawing

Open complete drawing →
