CATALOGUE DRAWING

This part is reference 1

Frame Assembly Kit T08000B10470N — reference 1 in the BSA Gold Star 650 Frame, Sub Frame & Mountings - (2/2) assembly drawing
BSA Gold Star 650 · Rev 06 · p. 95Original parts list ↗
This part is reference 1

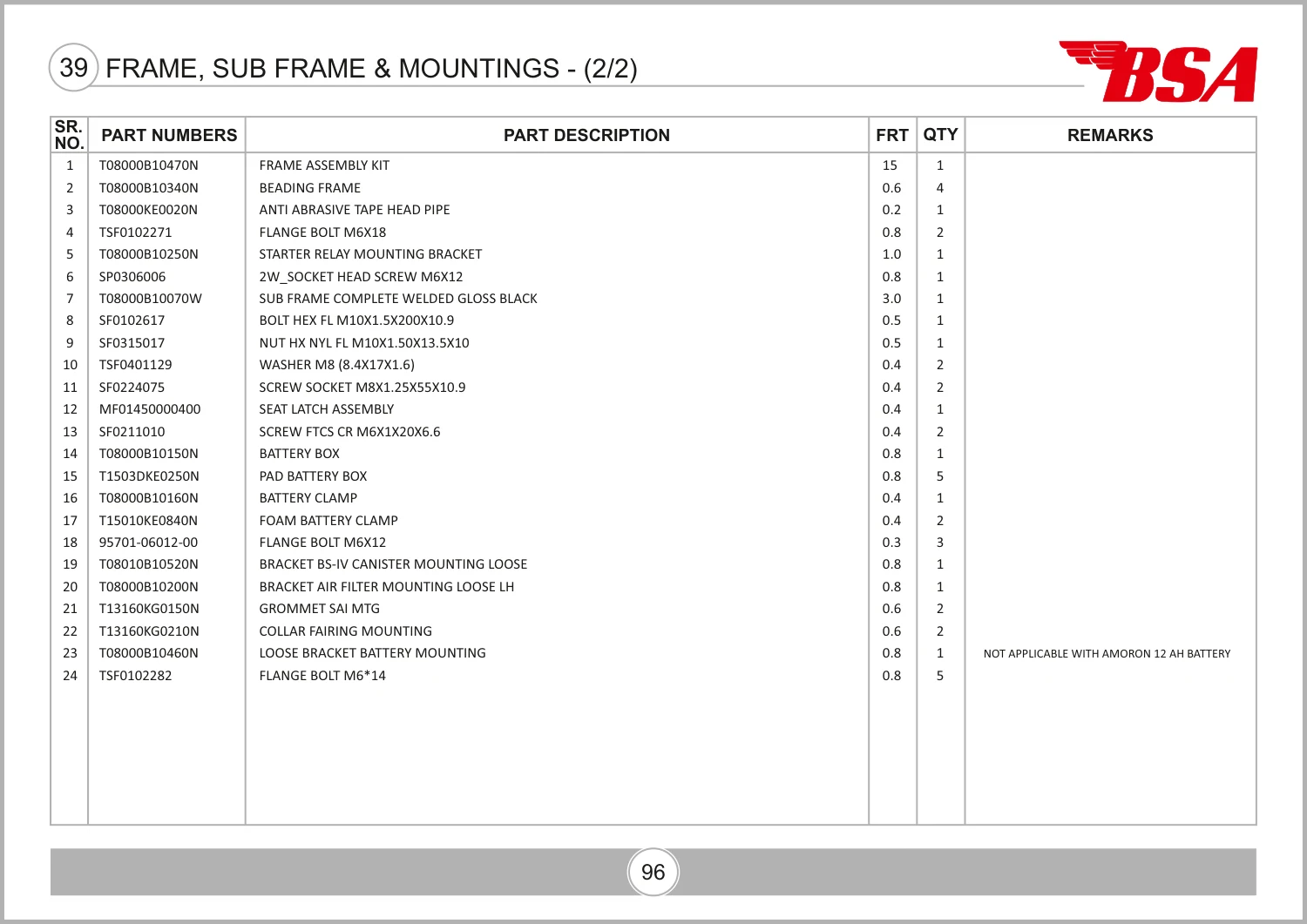

Full-size Frame, Sub Frame & Mountings - (2/2) catalogue drawing
Highlighted catalogue reference 1. The image shows the complete assembly.
Model & variant notes ↓View all parts in this assembly →
PART IDENTIFICATION

Frame Assembly Kit · T08000B10470N

Listed in the supplied BSA Gold Star 650 catalogue, revision 06, under Frame, Sub Frame & Mountings - (2/2). Match reference 1 in the drawing. Assembly quantity: 1. Choose the quantity you need in your enquiry above.

EXACT PART DETAILS

Frame Assembly Kit specifications & catalogue names

Part number
T08000B10470N
Catalogue part name
FRAME ASSEMBLY KIT

Bike catalogues listing this part number

BSA Gold Star 650 parts

These are catalogue references. Confirm your model year, BS/OBD version and any colour or size notes before ordering.

CHECK BEFORE ORDERING

Model & catalogue references

Match your bike version and these notes. A shared part number does not confirm compatibility with every model year.

Model / revisionAssembly / referenceSource note
BSA Gold Star 650Frame Assembly KitRev 06 · PDF p. 108Frame, Sub Frame & Mountings - (2/2)Ref 1 · Assembly qty. 1Confirm exact bike variant.
