Wiring Harness OBD-II
T15000J30030N
Enquiry ↗CATALOGUE DRAWING
This part is reference 1
Jawa Perak · Rev 24 · p. 141Original parts list ↗

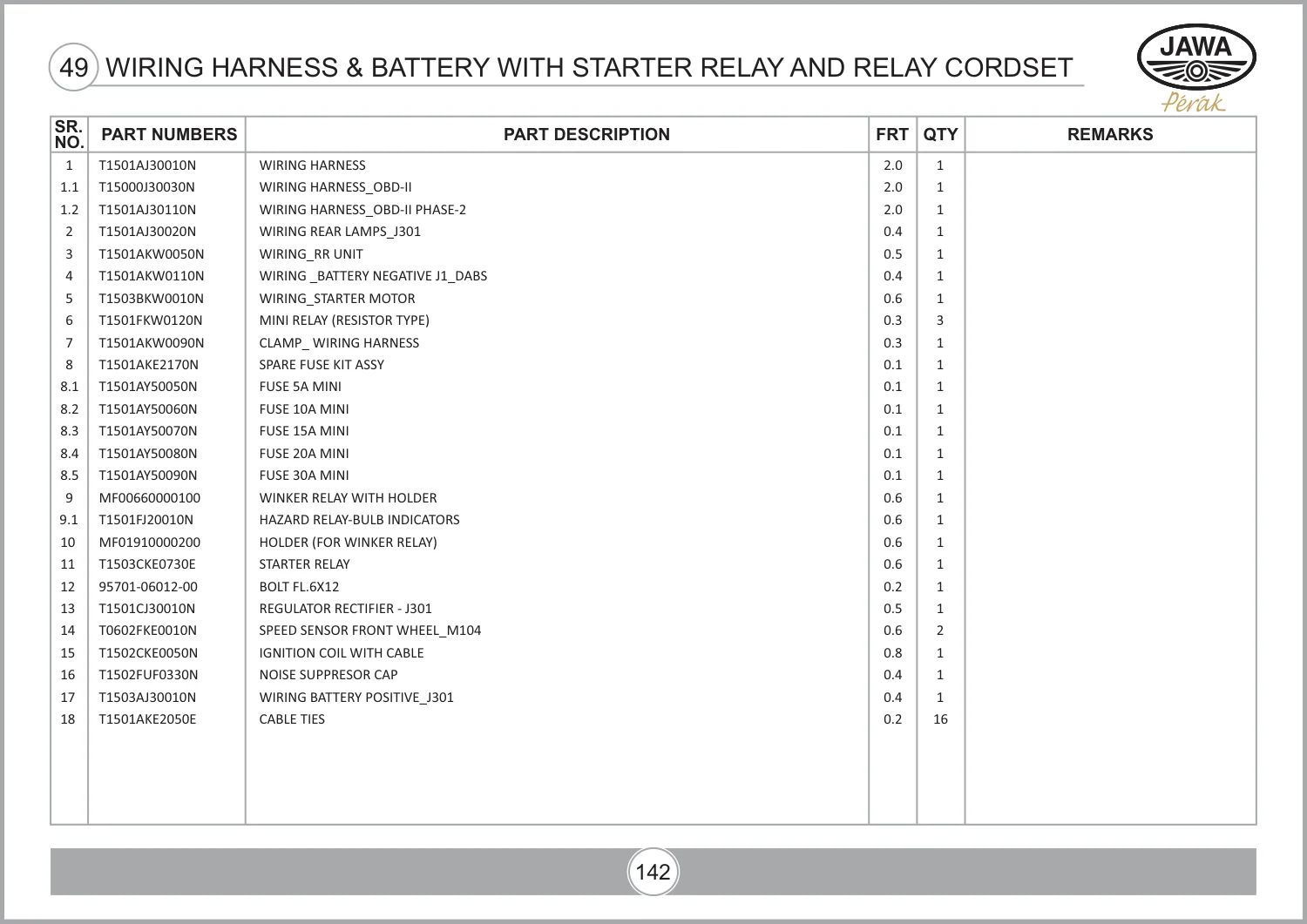

Highlighted catalogue reference 1. The image shows the complete assembly.
Wiring Harness · T1501AJ30010N
Listed in the supplied Jawa Perak catalogue, revision 24, under Wiring Harness & Battery With Starter Relay And Relay Cordset. Match reference 1 in the drawing. Assembly quantity: 1. Choose the quantity you need in your enquiry above.
Wiring Harness specifications & catalogue names
- Part number
- T1501AJ30010N
- Catalogue part name
- WIRING HARNESS
Bike catalogues listing this part number
These are catalogue references. Confirm your model year, BS/OBD version and any colour or size notes before ordering.
Model & catalogue references
Match your bike version and these notes. A shared part number does not confirm compatibility with every model year.
| Model / revision | Assembly / reference | Source note |
|---|---|---|
| Jawa PerakWiring HarnessRev 24 · PDF p. 154 | Wiring Harness & Battery With Starter Relay And Relay CordsetRef 1 · Assembly qty. 1 | Confirm exact bike variant. |
