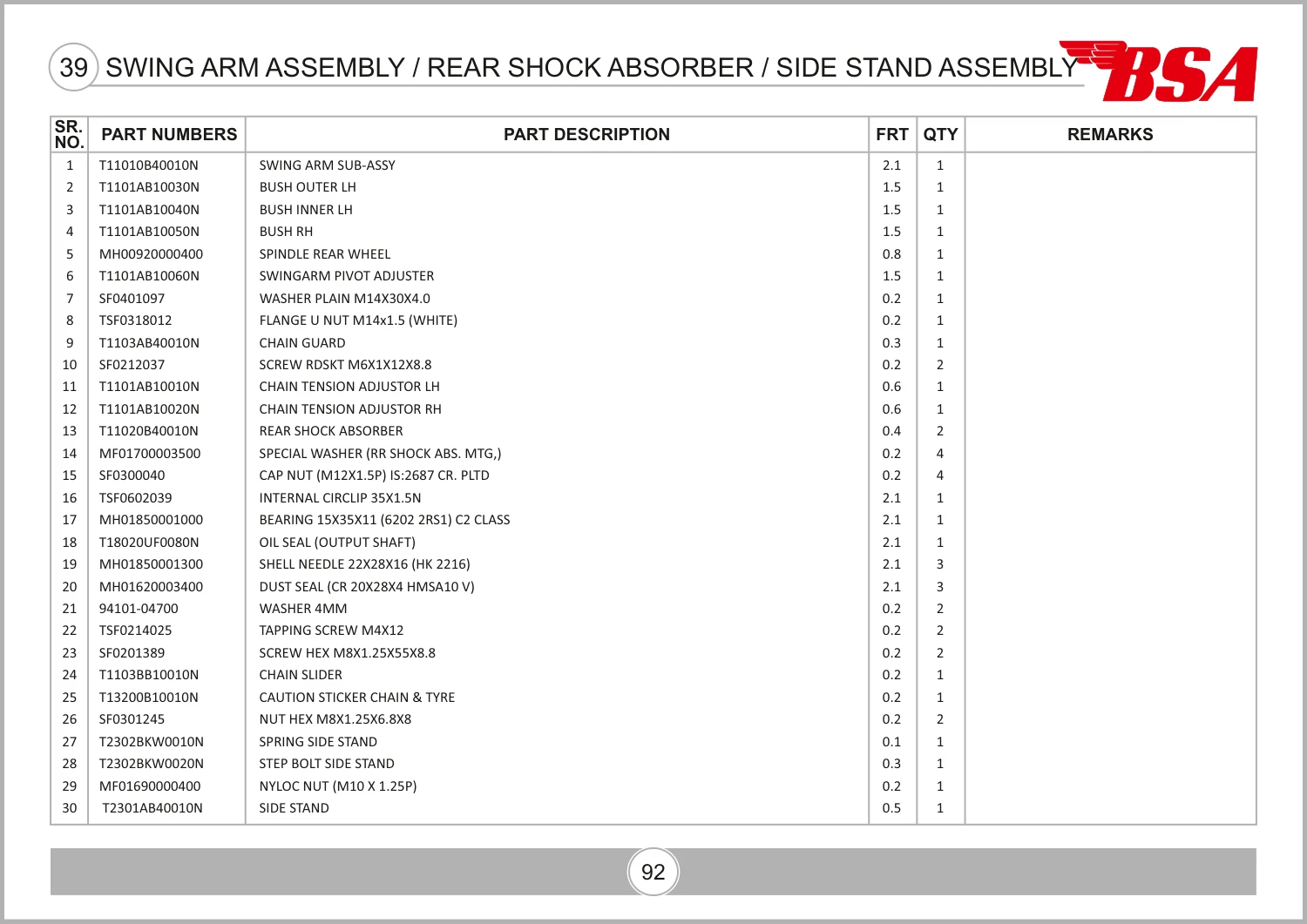

BSA Scrambler 650 · Rev 03 · p. 91Original parts list ↗
Highlighted catalogue reference 30. The image shows the complete assembly.
Side Stand · T2301AB40010N
Listed in the supplied BSA Scrambler 650 catalogue, revision 03, under Swing Arm Assembly / Rear Shock Absorber / Side Stand Assembly. Match reference 30 in the drawing. Assembly quantity: 1. Choose the quantity you need in your enquiry above.
Side Stand specifications & catalogue names
- Part number
- T2301AB40010N
- Catalogue part name
- SIDE STAND
Bike catalogues listing this part number
These are catalogue references. Confirm your model year, BS/OBD version and any colour or size notes before ordering.
Model & catalogue references
Match your bike version and these notes. A shared part number does not confirm compatibility with every model year.
| Model / revision | Assembly / reference | Source note |
|---|---|---|
| BSA Scrambler 650Side StandRev 03 · PDF p. 102 | Swing Arm Assembly / Rear Shock Absorber / Side Stand AssemblyRef 30 · Assembly qty. 1 | Confirm exact bike variant. |
