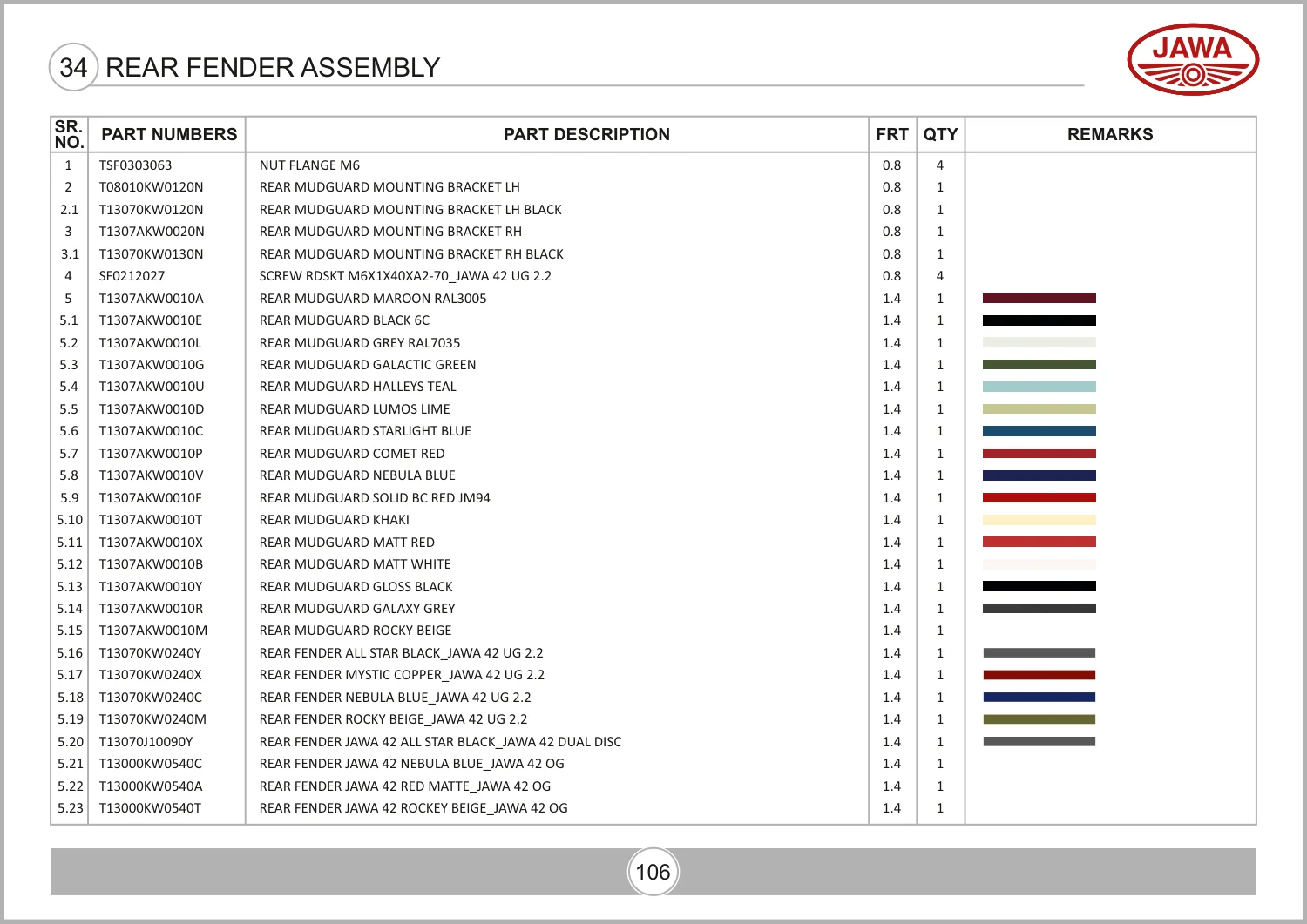

Jawa & Jawa 42 Platform · Rev 36 · p. 105Original parts list ↗
Highlighted catalogue reference 1. The image shows the complete assembly.
Nut Flange M6 · TSF0303063
Listed in the supplied Jawa & Jawa 42 Platform catalogue, revision 36, under Rear Fender Assembly. Match reference 1 in the drawing. Assembly quantity: 4. Choose the quantity you need in your enquiry above.
Nut Flange M6 specifications & catalogue names
- Part number
- TSF0303063
- Catalogue part name
- NUT FLANGE M6
Bike catalogues listing this part number
These are catalogue references. Confirm your model year, BS/OBD version and any colour or size notes before ordering.
Model & catalogue references
Match your bike version and these notes. A shared part number does not confirm compatibility with every model year.
| Model / revision | Assembly / reference | Source note |
|---|---|---|
| Jawa & Jawa 42 PlatformNut Flange M6Rev 36 · PDF p. 121 | Rear Fender AssemblyRef 1 · Assembly qty. 4 | Confirm exact bike variant. |
