Magneto Cover RH

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

BSA Gold Star 650 · Rev 06 · p. 37Original parts list ↗

18 entries

Ref.	Part name / number	Assembly qty.	Action
1	Magneto Side Adaptor Plate With BreatherT0202DVF0210N	1	Enquiry ↗
1.1	Magneto Side Adaptor Plate With Breather Black Raven Texture Shadow BlackT0202DVF0410E	1	Enquiry ↗
2	Gasket Magneto Adapter Plate To CcaseT0202DVF0080N	1	Enquiry ↗
3	Stator AssemblyT1502AVF0030N	1	Enquiry ↗
4	Bolt M6X1 35L (Stator Mtg)+ (Cover To Ccase)T0202DVF0060N	9	Enquiry ↗
5	Screw Hfc M5X0.8X15X10.9 (Pulsar Coil Mounting)SF0234002	2	Enquiry ↗
6	Bolt, Socket Head M5X0.8X10 White PassivationTSF0224077	2	Enquiry ↗
7	O Ring - Cover Inspection Top ( Jawa Tdc Finde O Ring )MJ01660001800	2	Enquiry ↗
8	Guage Inspection Cover ( Jawa Tdc Finder )T0202DVE0240N	2	Enquiry ↗
8.1	Gauge Inspection Cover (Matt Texture) Shadow BlackT0202DVG1090N	2	Enquiry ↗
9	Hollow Drive Pin (Dowel) Dia. 5Xl10T0202CVF0470N	2	Enquiry ↗
10	Cap Cover Magneto Dull SilverT0202DVF0190F	1	Enquiry ↗
10.1	Buffed Cap Cover Magneto Silver Sheen - Legacy EditionT0202DVF0200N	1	Enquiry ↗
11	Bolt M6X1 12L (Cap To Cover)T0202DVF0230N	4	Enquiry ↗
12	Bolt M6X1 105L (Cap To Cover To cc Oil Filter Area)SF0102614	3	Enquiry ↗
13	Decal Engine Cover BlackT13200B10040N	1	Enquiry ↗
13.1	Decal Engine Cover RedT13200B10040A	1	Enquiry ↗
14	Gasket Cap Cover MagnetoT0202DVF0270N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

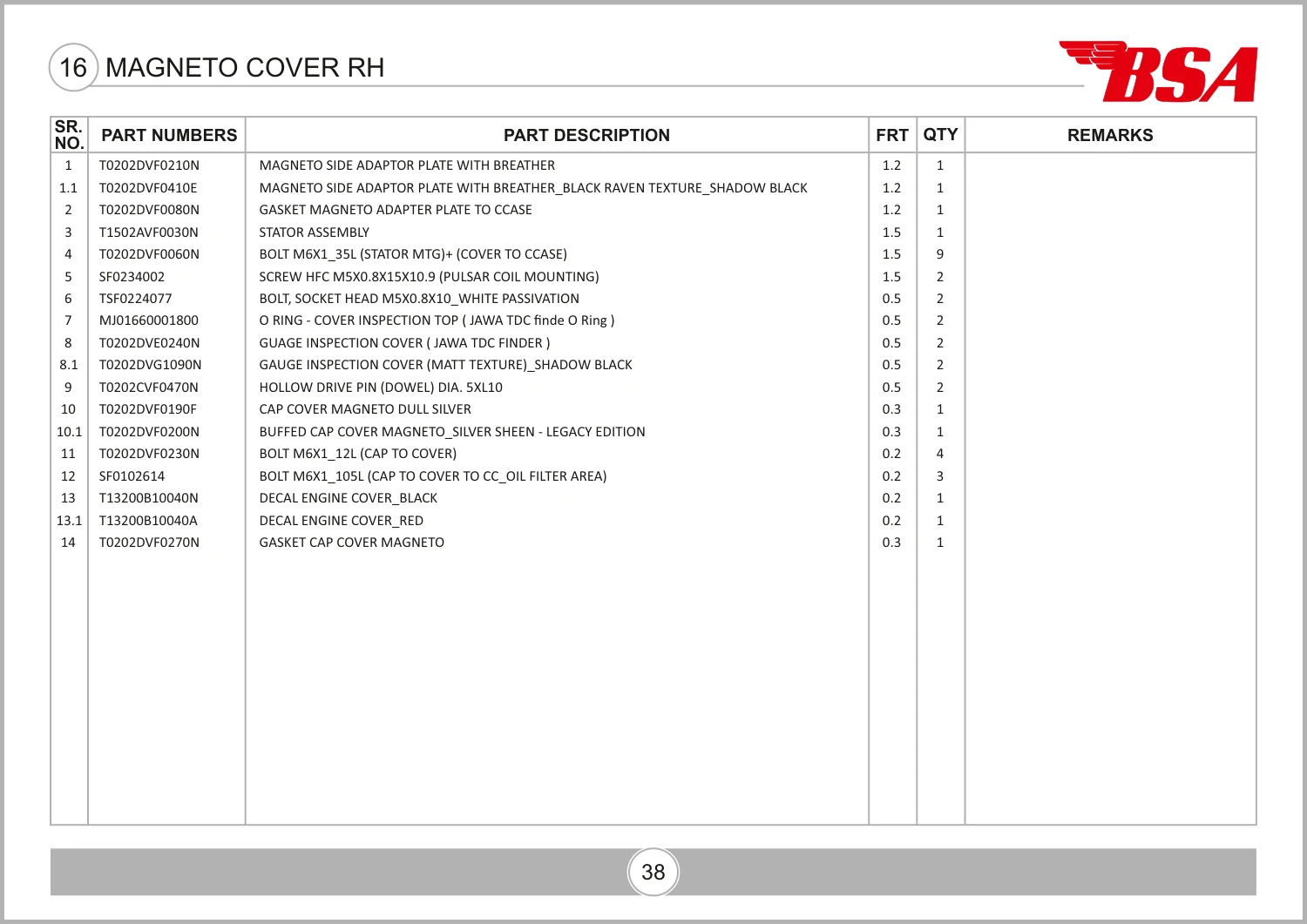

Source: PARTS CATALOUGE - BSA GOLDSTAR_REV-06.pdf · PDF diagram page 49, parts table page 50. View original parts table ↗
