Magneto Assembly
T1502AVF0010N
Enquiry ↗CATALOGUE DRAWING

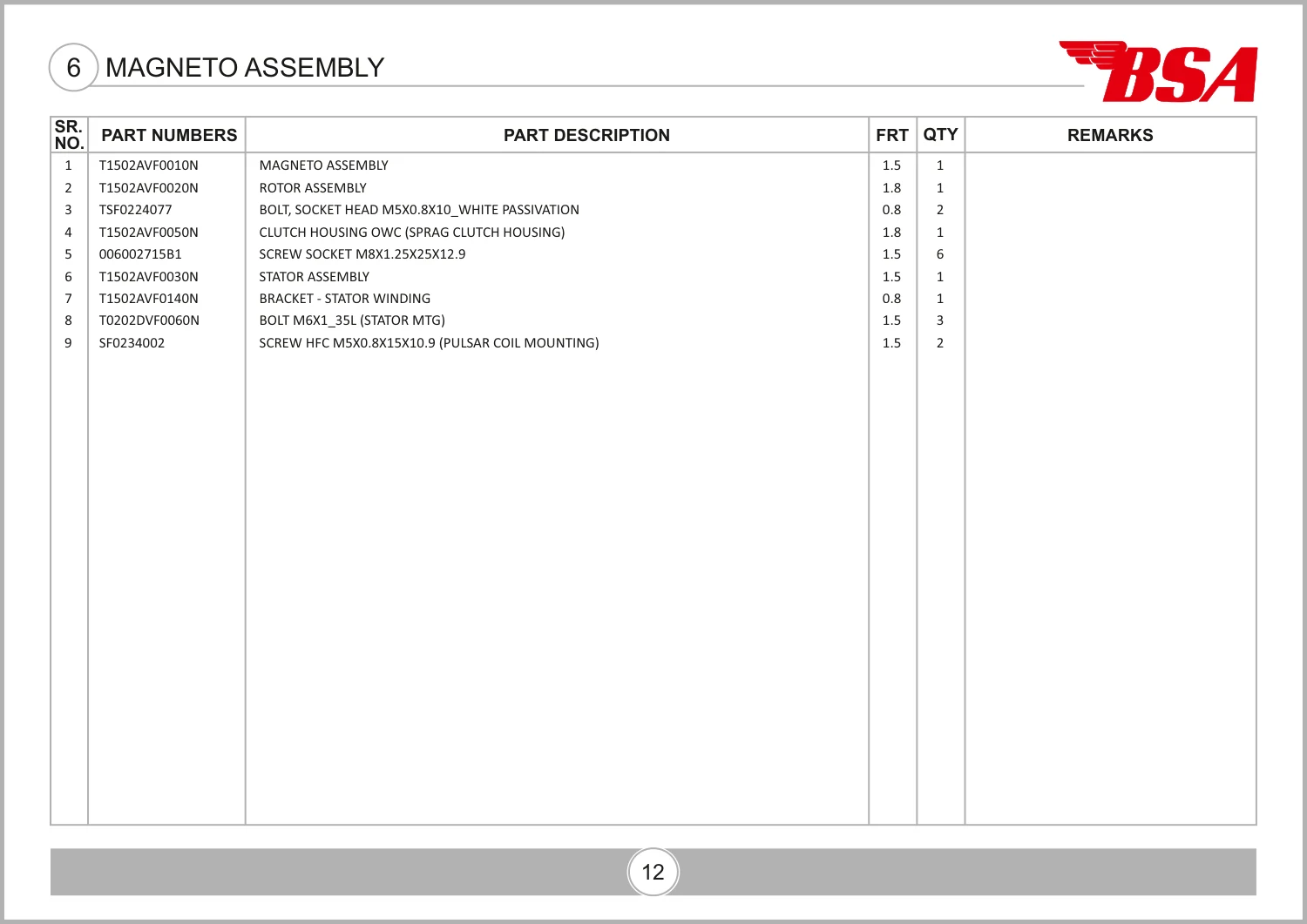

This part is reference 6
BSA Gold Star 650 · Rev 06 · p. 11Original parts list ↗
Highlighted catalogue reference 6. The image shows the complete assembly.
Stator Assembly · T1502AVF0030N
Listed in the supplied BSA Gold Star 650 catalogue, revision 06, under Magneto Assembly. Match reference 6 in the drawing. Assembly quantity: 1. Choose the quantity you need in your enquiry above.
Stator Assembly specifications & catalogue names
- Part number
- T1502AVF0030N
- Catalogue part name
- STATOR ASSEMBLY
- Also called
- Magnet coil
Bike catalogues listing this part number
These are catalogue references. Confirm your model year, BS/OBD version and any colour or size notes before ordering.
Model & catalogue references
Match your bike version and these notes. A shared part number does not confirm compatibility with every model year.
| Model / revision | Assembly / reference | Source note |
|---|---|---|
| BSA Gold Star 650Stator AssemblyRev 06 · PDF p. 24 | Magneto AssemblyRef 6 · Assembly qty. 1 | Confirm exact bike variant. |
| BSA Gold Star 650Stator AssemblyRev 06 · PDF p. 50 | Magneto Cover RHRef 3 · Assembly qty. 1 | Confirm exact bike variant. |
| BSA Scrambler 650Stator AssemblyRev 03 · PDF p. 22 | Magneto AssemblyRef 6 · Assembly qty. 1 | Confirm exact bike variant. |
| BSA Scrambler 650Stator AssemblyRev 03 · PDF p. 44 | Magneto Cover RHRef 3 · Assembly qty. 1 | Confirm exact bike variant. |
