BSA Scrambler 650 · ASSEMBLY 6 · REV 03
Magneto Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
BSA Scrambler 650 · Rev 03 · p. 11Original parts list ↗
Parts in this drawing
9 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Magneto AssemblyT1502AVF0010N | 1 | |
| 2 | Rotor AssemblyT1502AVF0020N | 1 | |
| 3 | Bolt, Socket Head M5X0.8X10 White PassivationTSF0224077 | 2 | |
| 4 | Clutch Housing Owc (Sprag Clutch Housing)T1502AVF0050N | 1 | |
| 5 | Screw Socket M8X1.25X25X12.9006002715B1 | 6 | |
| 6 | Stator AssemblyT1502AVF0030N | 1 | |
| 7 | Bracket - Stator WindingT1502AVF0140N | 1 | |
| 8 | Bolt M6X1 35L (Stator Mtg)T0202DVF0060N | 3 | |
| 9 | Screw Hfc M5X0.8X15X10.9 (Pulsar Coil Mounting)SF0234002 | 2 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

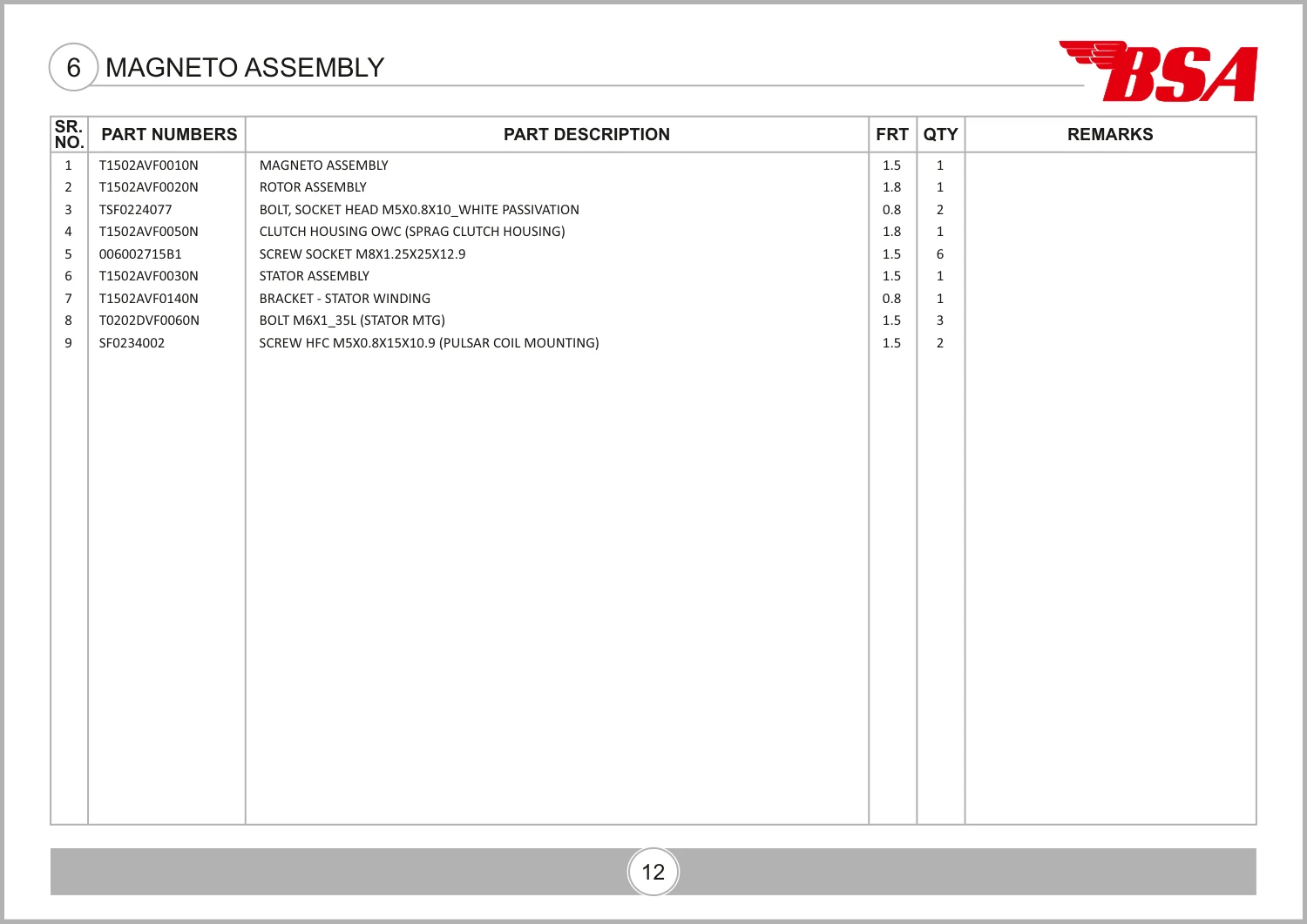

Source: PARTS CATALOUGE - BSA SCRAMBLER_REV_03.pdf · PDF diagram page 21, parts table page 22. View original parts table ↗
