BSA Scrambler 650 · ASSEMBLY 5 · REV 03
Drum Asm & Shift Shaft Mech Cambine
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
BSA Scrambler 650 · Rev 03 · p. 9Original parts list ↗

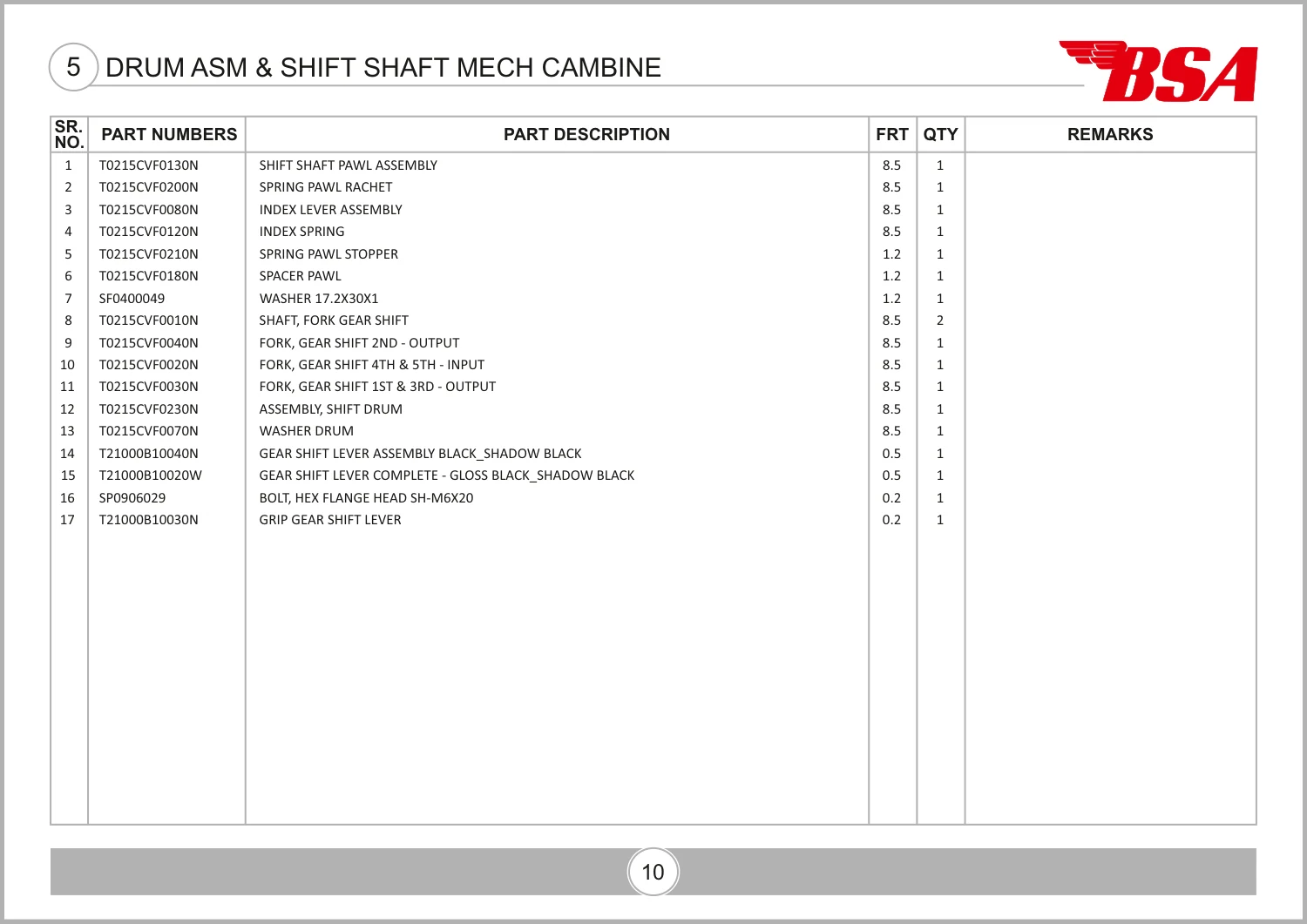

Parts in this drawing
17 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Shift Shaft Pawl AssemblyT0215CVF0130N | 1 | |
| 2 | Spring Pawl RachetT0215CVF0200N | 1 | |
| 3 | Index Lever AssemblyT0215CVF0080N | 1 | |
| 4 | Index SpringT0215CVF0120N | 1 | |
| 5 | Spring Pawl StopperT0215CVF0210N | 1 | |
| 6 | Spacer PawlT0215CVF0180N | 1 | |
| 7 | Washer 17.2X30X1SF0400049 | 1 | |
| 8 | Shaft, Fork Gear ShiftT0215CVF0010N | 2 | |
| 9 | Fork, Gear Shift 2Nd - OutputT0215CVF0040N | 1 | |
| 10 | Fork, Gear Shift 4Th & 5Th - InputT0215CVF0020N | 1 | |
| 11 | Fork, Gear Shift 1St & 3Rd - OutputT0215CVF0030N | 1 | |
| 12 | Assembly, Shift DrumT0215CVF0230N | 1 | |
| 13 | Washer DrumT0215CVF0070N | 1 | |
| 14 | Gear Shift Lever Assembly Black Shadow BlackT21000B10040N | 1 | |
| 15 | Gear Shift Lever Complete - Gloss Black Shadow BlackT21000B10020W | 1 | |
| 16 | Bolt, Hex Flange Head Sh-M6X20SP0906029 | 1 | |
| 17 | Grip Gear Shift LeverT21000B10030N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.
Source: PARTS CATALOUGE - BSA SCRAMBLER_REV_03.pdf · PDF diagram page 19, parts table page 20. View original parts table ↗
