BSA Scrambler 650 · ASSEMBLY 1 · REV 03
Camchain And Tensioner & Cylinder Head Cover
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
BSA Scrambler 650 · Rev 03 · p. 1Original parts list ↗
Parts in this drawing
11 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Assembly Cylinder Head Cover With Breather Black Shadow BlackT0202BVF0360E | 1 | |
| 2 | Rubber BushT02090VF0030N | 7 | |
| 3 | Bolt Step M6X1-37L Cover Cylinder HeadT0202BVF0130N | 7 | |
| 4 | Cylinder Head Cover SealT0209DVF0020N | 1 | |
| 5 | Silent Chain Guide Chain Tight SideT0202CVF0561N | 1 | |
| 6 | Silent Timing ChainT0208AVF0221N | 1 | |
| 7 | Silent Chain Guide Upper (Central)T0208EVF0061N | 1 | |
| 8 | Bolt Chain Guide Upper (Distance Screw) M6X16SF0100164 | 2 | |
| 9 | Silent Chain Guide Slack SideT0202CVF0551N | 1 | |
| 10 | Silent Chain Guide Pivot Bolt M6 (Shoulder Bolt)T0202CVF0541N | 1 | |
| 11 | Silent Chain Hydraulic Chain Tensioner AssemblyT0208AVF0211N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

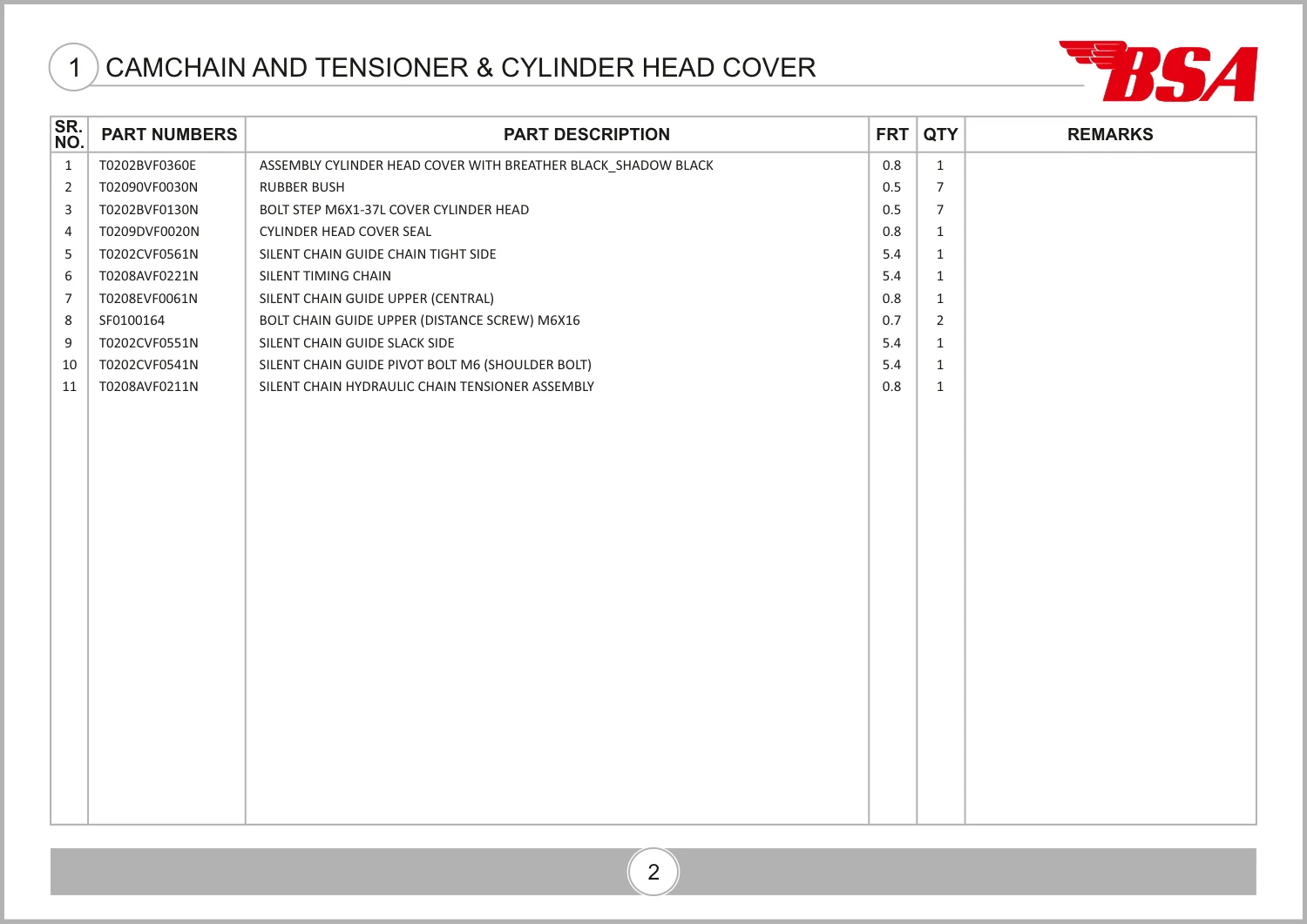

Source: PARTS CATALOUGE - BSA SCRAMBLER_REV_03.pdf · PDF diagram page 11, parts table page 12. View original parts table ↗
